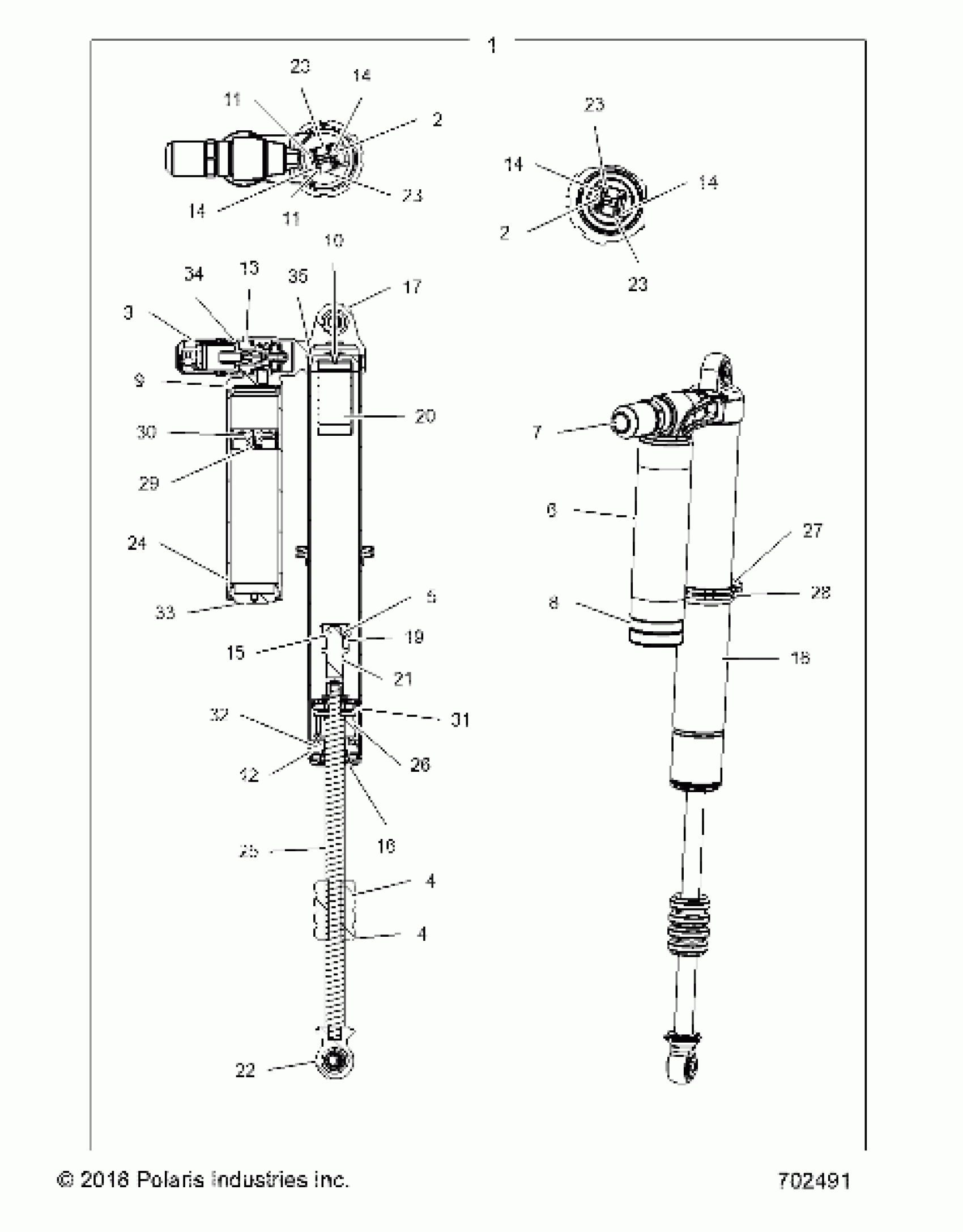

Polaris RZR TURBO 4 (R08) - Z19VFE92AC/BC/AD/AM/BM/L92AG/BG SUSPENSION, REAR SHOCK INTERNALS - Z19VFL92AG/BG (702941) Diagram

#

Description
Price

1

SHOCK-REAR,FOXLIVE,MP,RH [AG][BG]

7045153

$1,306.19

1

SHOCK-REAR,FOXLIVE,MP [AG][BG]

7045149

$1,343.99

2

BEARING: SPHERICAL [0.625 BORE X 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46

2

BEARING: SPHERICAL [0.625 BORE X 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46

3

COVER - LIVE VALVE

1501290

$27.99

4

BUMPER, B/O SHAFT

1501028

$26.39

4

BUMPER, B/O SHAFT

1501028

$26.39

5

FASTENER - NUT

-------

Unavailable

6

DECAL - RESERVOIR [7.63 X 6.5] FACTORY SERIES, LIVE, RED

-------

Unavailable

7

DECAL - IRD CVR, LIVE

1501272

$10.39

8

DECAL - BAND

1501273

$11.99

9

SEALS: O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

10

SEALS: O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

11

SEALS: O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

11

SEALS: O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

12

WIRE, RETAINING RING

1500960

$3.73

13

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

14

RING, RET., WIRE SS

1501292

$3.99

14

RING, RET., WIRE SS

1501292

$3.99

14

RING, RET., WIRE SS

1501292

$3.99

14

RING, RET., WIRE SS

1501292

$3.99

15

PLATE - B. U., T.O.

1501293

$7.19

16

BEARING CAP: [2.250 BORE, 0.875 SHAFT] NO SCRAPER, PRESS-IN, CLEAR ANO II

1501053

$31.10

17

BODY CAP, HIFLO

1501295

$159.99

18

BODY - [2.250 BORE. 18.8 TLG] CLEAR ANO III, V2 O-RING GLAND, UNS CAP

1501296

$239.99

19

PISTON - PS DAMP

1501297

$27.99

20

TUBE - BOT. OUT CUP

1501298

$55.99

21

DAMPING ADJUST PART - PS POST

-------

Unavailable

22

EYELET - BLK

1501300

$71.99

23

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

23

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

23

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

23

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

24

RESEVOIR 10.0 TLG BLK

1501175

$263.99

25

SHAFT - .875 OD, 16.5 TLG] STEEL, CHROME, SOLID, 1.400" POST LENGTH

-------

Unavailable

26

SPACER - SHAFT, NYLON

1501302

$27.99

27

RING - PRELOAD B/U

1501285

$23.99

28

RING - PRELOAD

1501286

$23.99

29

SCREW - BLACK, RES

1501303

$26.39

30

PISTON ASSEMBLY: FLOATING [2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

31

VALVING ASSEMBLY: [2.25 BORE]

-------

Unavailable

32

ASM - BRNG, DUAL SEAL

1501304

$105.59

33

RESERVOIR END CAP ASSEMBLY: [2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM. BLACK

1501063

$124.99

34

ADJUSTER - DSC HIFLO

1501288

$470.79

35

CUP BASE

1501305

$70.11

36

K - REBUILD 2.5

1501291

$87.99
