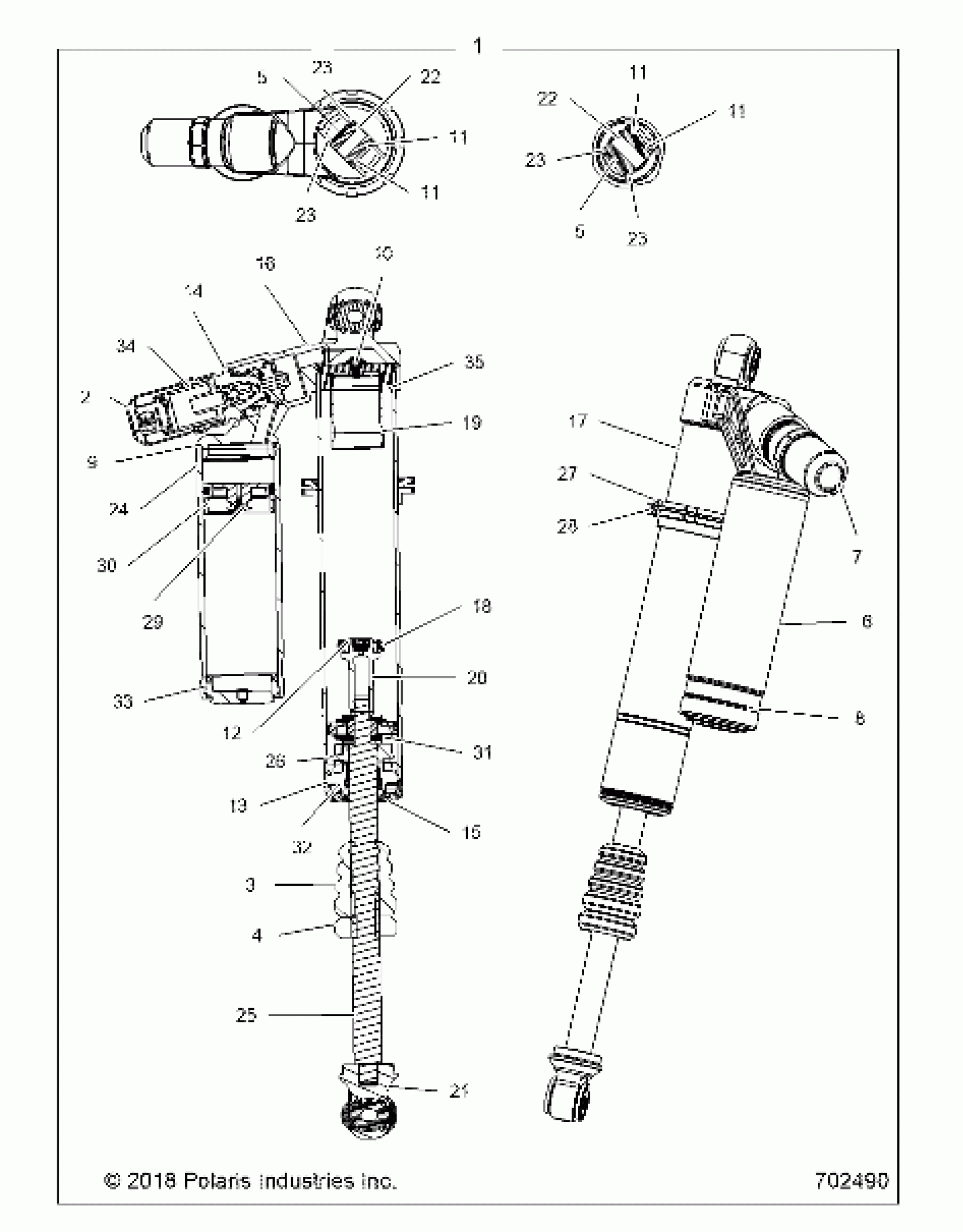

Polaris RZR TURBO 4 (R08) - Z19VFE92AC/BC/AD/AM/BM/L92AG/BG SUSPENSION, FRONT SHOCK INTERNALS - Z19VFL92AG/BG (702490) Diagram

#

Description
Price

1

SHOCK-FRONT,FOXLIVE,MP,LH [AG][BG]

7044969

$1,226.39

1

SHOCK-FRONT,FOXLIVE,MP,RH [AG][BG]

7044970

$1,188.59

2

COVER - LIVE VALVE

1501290

$27.99

3

BUMPER: B/O [0.620 SHAFT, 2.350 TLG] MCU

1500844

$27.99

4

BUMPER: B/O [.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$31.99

5

BUSHING, EYELET

1501010

$19.99

5

BUSHING, EYELET

1501010

$19.99

6

DECAL - RESERVOIR [7.63 X 6.5] FACTORY SERIES, LIVE, RED

-------

Unavailable

7

DECAL - IRD CVR, LIVE COVER, RED

1501272

$10.39

8

DECAL - BAND

1501273

$11.99

9

SEALS: O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

10

SEALS: O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

11

SEAL - CANNED WEATHER

1501274

$12.79

11

SEAL - CANNED WEATHER

1501274

$12.79

11

SEAL - CANNED WEATHER

1501274

$12.79

11

SEAL - CANNED WEATHER

1501274

$12.79

12

RETAINING RING - SPIRAL [-75] SS, EXTERNAL, 0.750 SHAFT

1501275

$19.99

13

RETAINING RING - WIRE [0.062 CS X 2.270 ID] 302 SS

1500960

$3.73

14

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

15

BEARING CAP: [2.250 BORE, 0.875 SHAFT] NO SCRAPER, PRESS-IN, CLEAR ANO II

1501053

$31.10

16

BODY CAP - PIGGYBACK, HIGH FLOW, 135

-------

Unavailable

17

BODY - [2.25 BORE X 13.4 TLG] CLEAR ANO III, V2 O-RING GLAND, UNS CAP

1501278

$151.99

18

POSITION SENSITIVE DAMPING

1501326

$39.99

19

DAMPING ADJUST PART - TUBE

-------

Unavailable

20

POST - P.S. DAMP.

1501281

$51.99

21

RETAINER SPECIAL

1501327

$43.99

22

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.99

22

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.99

23

SPACER - NYLON

1501283

$8.79

23

SPACER - NYLON

1501283

$8.79

23

SPACER - NYLON

1501283

$8.79

23

SPACER - NYLON

1501283

$8.79

24

RESERVOIR

1501093

$95.99

25

SHAFT - .875 X 12.1TLG

1501284

$43.99

26

SPACER - NYLON

-------

Unavailable

27

RING - PRELOAD B/U

1501285

$23.99

28

RING - PRELOAD

1501286

$23.99

29

SCREW - BLACK, RES

1501303

$26.39

30

PISTON ASSEMBLY: FLOATING [2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

31

VALVING ASSEMBLY

-------

Unavailable

32

ASM - BRNG, DUAL SEAL

1501304

$105.59

33

RESERVOIR END CAP ASSEMBLY: [2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM. BLACK

1501063

$124.99

34

ADJUSTER - DSC HIFLO

1501288

$470.79

35

CUP BASE

1501289

$55.99

36

K - REBUILD 2.5

1501291

$87.99
