Description

Price

1

ASM-GEARCASE,COMPLETE,MP [INCL. ALL]

1333684

$4,078.79

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

5

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

3235208

$11.19

6

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.99

6

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.99

7

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.15

8

NUT, JAM M20 X 1.5

3235803

$7.99

9

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.99

10

WASHER-CUP

3234091

$9.59

10

WASHER-CUP

3234091

$9.59

11

WASHER 32.3 X 42 X 1.5

3235211

$10.39

11

WASHER 32.3 X 42 X 1.5

3235211

$10.39

11

WASHER 32.3 X 42 X 1.5

3235211

$10.39

12

WASHER 35.6 X 50 X 1.5

3235212

$13.59

13

WASHER, LOCKING 21.4 X 39 x 3.40

3235804

$11.43

14

WASHER 25.26 X 34 X 2

3235805

$7.03

15

WASHER 22.7 X 32 X 1.5

3235991

$11.43

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

PIN, SPRING SLOTTED 6 X 12

7043746

$7.19

18

RING, RETAINING

7710434

$3.99

19

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

20

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

21

RING SNAP

3233834

$10.39

22

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING, RETAINING BASIC INTERNAL, 62MM

3234741

$9.59

25

RING, RETAINING

3234205

$11.19

25

RING, RETAINING

3234205

$11.19

25

RING, RETAINING

3234205

$11.19

25

RING, RETAINING

3234205

$11.19

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

27

RING, RETAINING VSH-237

3235216

$10.39

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

30

SPACER, 19.4 X 34.0 X 2.0

3235883

$23.99

31

BEARING, NEEDLE

3233014

$43.99

31

BEARING, NEEDLE

3233014

$43.99

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING

3233020

$47.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING-BALL 6206 C3 30X62X16

3233790

$27.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

37

BEARING, NEEDLE CAGE ASSY

3233384

$31.99

38

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.99

39

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

39

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

40

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

40

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.99

41

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$31.99

42

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

42

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

43

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

43

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

44

SPRING, COMPRESSION DETENT

3234578

$12.79

45

SPRING, TORSION

3235885

$19.99

46

SPRING, WASHER

3235327

$9.59

47

TUBE, SNORKEL MACH

3235947

$99.99

48

COVER, SECTOR GEARS MACH

3235809

$39.59

49

GEAR, SECTOR 16T

3233839

$31.99

50

GEAR-SECTOR,31T

3233832

$31.99

51

PLATE, PARK 12-FACE

3235456

$35.99

52

STAR, DETENT

3235982

$31.99

53

SHAFT, IDLER 29T

3235223

$107.99

54

SHAFT-REVERSE,27T(285878)

3235380

$243.99

55

GEAR, 19T SNORKEL

3235812

$123.99

56

BELLCRANK 92 DEGREE

3235227

$23.99

57

COLLAR-SHIFT

3234073

$31.99

58

TUBE, VENT 90 -1/4" HOSE

3234230

$9.59

59

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

60

GEAR, 46T STAGE 3

3235236

$103.99

61

SHAFT-SHIFT(352973)

3235238

$37.61

62

GEAR, 46T STAGE 2

3235381

$123.99

63

GEAR, 52T

3235411

$139.99

64

SHIFT DOG, PARK

3235457

$135.99

65

RAIL, SHIFT SHAFT

3235542

$27.99

66

GEAR, LOW 61T

3235561

$79.99

67

SHAFT, FRONT OUTPUT

3235815

$159.99

68

COUPLER

3235816

$43.99

69

PARK CAM

3235983

$151.99

70

DRUM, SHIFT MACH

3235984

$263.99

71

GEAR, LOW 31T

3235990

$96.79

72

GEAR, REVERSE 56T

3235985

$95.99

73

GEAR, IDLER 39T

3235986

$107.99

74

WELDMENT, REAR MOUNT BRACKET

3235817

$43.99

75

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$31.99

76

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

76

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

77

SUBASSEMBLY, PINION

3235820

$347.99

78

SUBASSEMBLY, OUTPUT

3235847

$284.23

79

SUBASSEMBLY, LH CASE

3235949

$466.39

80

SUBASSEMBLY, INPUT 43T/22T/31T

3235988

$207.99

81

SUBASSEMBLY, RH CASE

3235992

$347.99

82

BRACKET, REAR MOUNT

3235822

$39.99

83

COVER, BEARING CENTER DRIVE

3235823

$43.99

84

SENSOR-SPEED,TRANS

4013908

Unavailable

85

SWITCH, ROTARY 2 PIN RESISTIVE

7662299

$111.99

86

O-RING 3.609 I.D. X .139

3235948

$6.39

87

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$55.99

88

PLUG, M18 X 1.5

3234755

$27.99

89

O-RING

3234302

$7.19

90

O-RING VITON

3233836

$6.87

91

O-RING VITON

3233828

$6.79

92

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

92

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

93

SEAL, TRIPLE LIP 1.180X1.850X0.315 VITON

3235848

$31.99

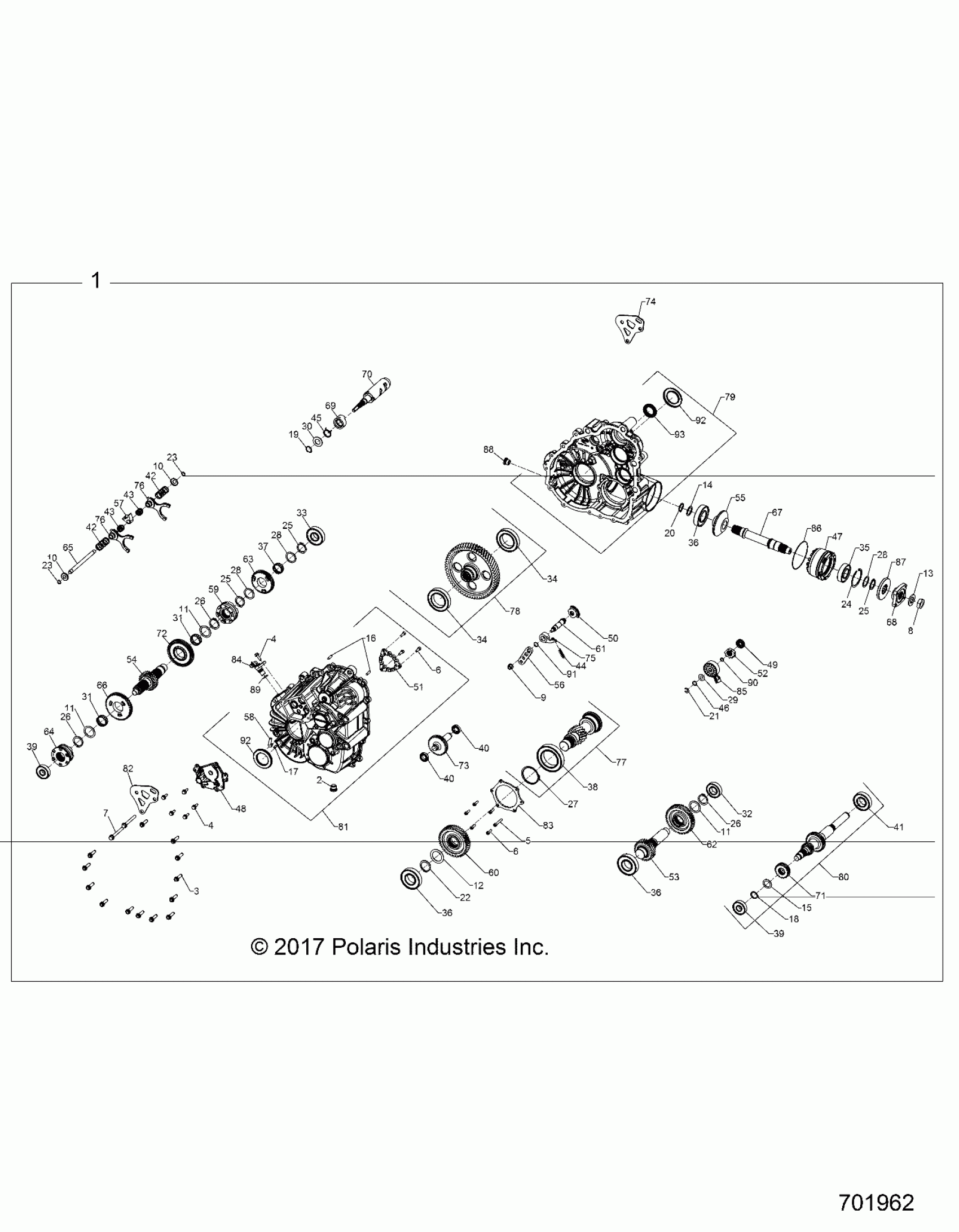

Polaris RZR TURBO 4 (R08) - Z19VFE92AC/BC/AD/AM/BM/L92AG/BG DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z19VFE92AC/BC/AD/BD/AM/BM/LAG/BG (701962) Diagram

ASM-GEARCASE,COMPLETE,MP [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

SCREW HEX FLANGE M8 X 1.25 X 70

NUT, JAM M20 X 1.5

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

WASHER 35.6 X 50 X 1.5

WASHER, LOCKING 21.4 X 39 x 3.40

WASHER 25.26 X 34 X 2

WASHER 22.7 X 32 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING SLOTTED 6 X 12

RING, RETAINING

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.984

RING SNAP

RING, RETAINING SHAFT, DIA. 1.375

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING BASIC INTERNAL, 62MM

RING, RETAINING

RING, RETAINING

RING, RETAINING

RING, RETAINING

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING, RETAINING VSH-237

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SPACER, 19.4 X 34.0 X 2.0

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6206 C3 30X62X16

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING, NEEDLE CAGE ASSY

BEARING, BALL 6012 C3 60 X 95 X 18

BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6903 17 X 30 X 7

BEARING, BALL 6903 17 X 30 X 7

BEARING, BALL 6206RSH2 STD 30X62X16

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION .46 I.D. X .73

SPRING, COMPRESSION .46 I.D. X .73

SPRING, COMPRESSION DETENT

SPRING, TORSION

SPRING, WASHER

TUBE, SNORKEL MACH

COVER, SECTOR GEARS MACH

GEAR, SECTOR 16T

GEAR-SECTOR,31T

PLATE, PARK 12-FACE

STAR, DETENT

SHAFT, IDLER 29T

SHAFT-REVERSE,27T(285878)

GEAR, 19T SNORKEL

BELLCRANK 92 DEGREE

COLLAR-SHIFT

TUBE, VENT 90 -1/4" HOSE

ENGAGEMENT DOG, 6-FACE
