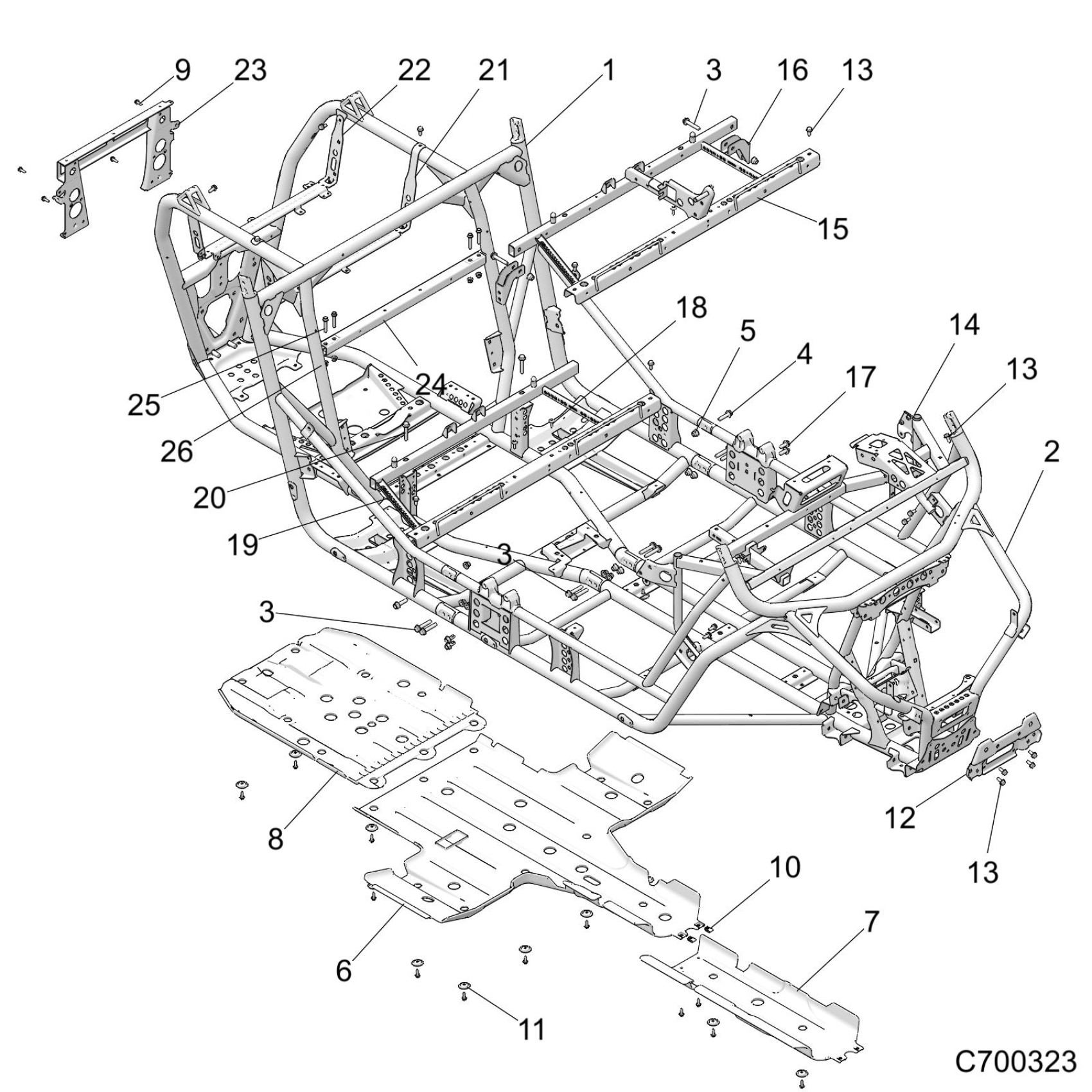

Polaris RZR TURBO 4 (R08) - Z19VFE92AC/BC/AD/AM/BM/L92AG/BG CHASSIS, MAIN FRAME AND SKID PLATES - Z19VFE92AC/BC/AD/BD/AM/BM/LAG/BG (C700323) Diagram

#

Description
Price

1

WELD-MAIN FRAME,BLK

1024526-458

$2,406.79

2

WELD-MAINFRAME,FRT,MP,SWY,BLK

1024370-458

$2,415.59

3

SCREW

7519285

Unavailable

3

SCREW

7519285

Unavailable

4

SCREW

7519332

$5.59

5

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

6

PLATE, SKID, BLACK

5450239-070

Unavailable

7

PLATE, SKID, BLACK

5450556-070

$147.99

8

PLATE, SKID, REAR, BLACK

5452063-070

Unavailable

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

10

NUT, U-TYPE

7547674

$1.49

11

WASHER-SKID PLATE

7556065

$4.79

12

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

13

BOLT

7518555

Unavailable

13

BOLT

7518555

Unavailable

13

BOLT

7518555

Unavailable

14

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

15

BASE, SEAT, MP, BLACK

1020572-329

$183.99

16

BRACKET, SEAT SUPPORT, FRONT, MP, BLACK

5258097-329

$51.99

17

SCREW

7518934

$3.99

18

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

19

BASE, SEAT, REAR, BLACK

1019777-329

$223.99

20

BOLT

7518474

$4.79

21

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

22

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

23

SUPPORT, REAR, MATTE BLACK

1019529-458

$115.99

25

SCREW

7516732

$1.59

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
