- RZR TRAIL S 900 60 INCH ALL OPTIONS (R03) - Z20ASA87B2/E87BH/BW/LW
SUSPENSION, FRONT SHOCK INTERNALS - Z20ASA87B2 (702427)

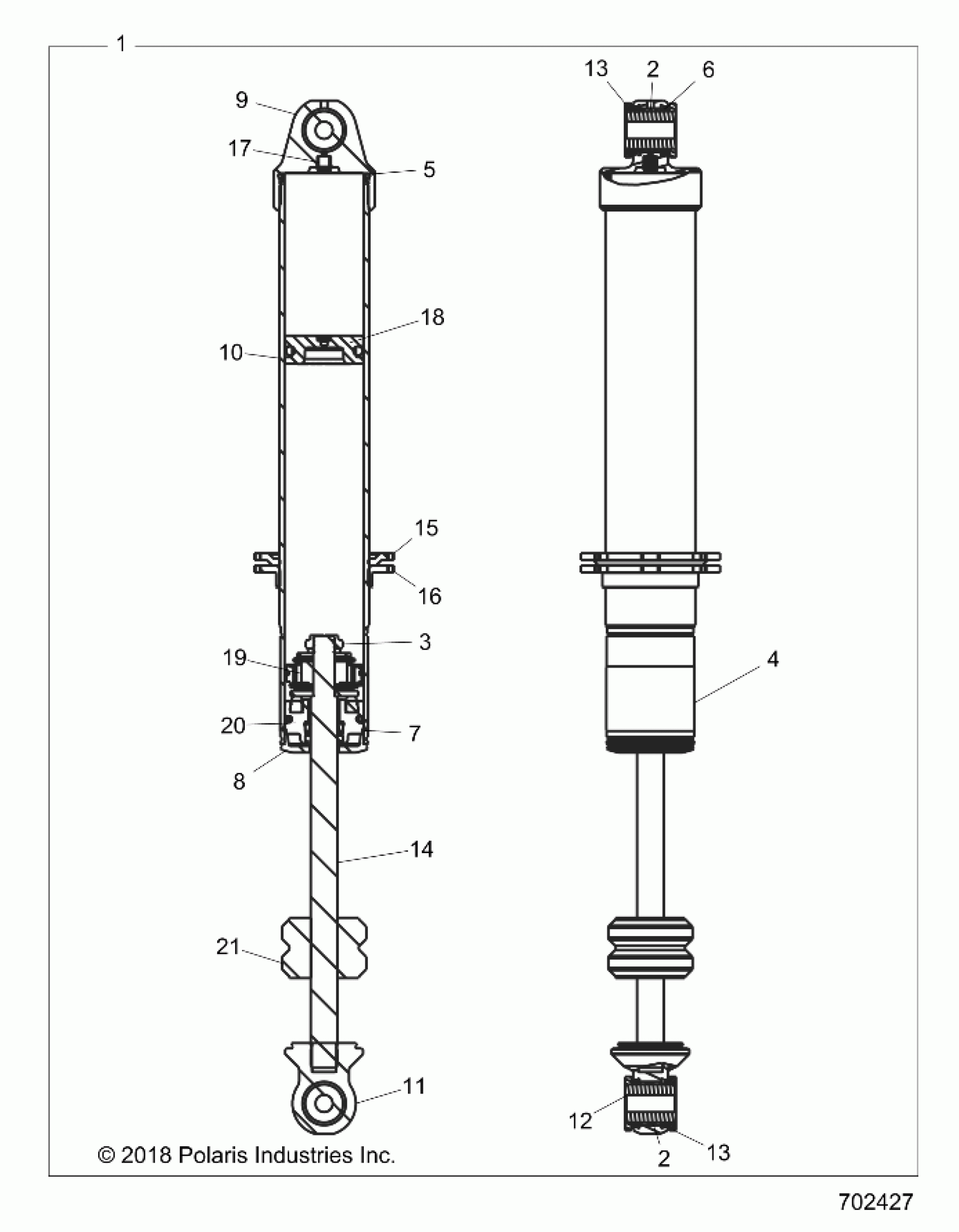

Polaris RZR TRAIL S 900 60 INCH ALL OPTIONS (R03) - Z20ASA87B2/E87BH/BW/LW SUSPENSION, FRONT SHOCK INTERNALS - Z20ASA87B2 (702427) Diagram
#
Description
Price
1
PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]
1500470
$11.19
1
PLATE: BACK-UP [0.750 OD X 0.503 ID X 0.100 TH, � 0.620 SHAFT]
1500516
$7.19
1
SHOCK-FRONT,MONO [INCL. ALL]
7044467
Unavailable
2
BUSHING, EYELET
1501010
$19.99
2
BUSHING, EYELET
1501010
$19.99
3
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
1500842
Unavailable
4
-------
-------
Unavailable
5
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC
1500510
$6.39
6
SEAL, WEATHER
1501014
$8.79
7
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
$9.59
8
CAP, BEARING
1501100
$39.99
9
-------
-------
Unavailable
10
-------
-------
Unavailable
11
EYELET, SHAFT
1501032
$74.79
12
EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG
1501087
$23.99
13
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG
1501088
$6.39
13
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG
1501088
$6.39
14
SHAFT, .62X10.1TLG
1501033
$99.99
15
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
1500872
$43.99
16
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
1500873
$47.99
17
AIR VALVE ASSEMBLY: PELLET RETAINER W/ PELLET, NITRILE
1500886
$40.46
18
ASM. PISTON, FLOATING
1500941
$27.99
19
-------
-------
Unavailable
20
ASM., BEARING, .62SHAFT
1501185
Unavailable
21
BUMPER, B/O SHAFT
1501028
$26.39
