- RZR TRAIL S 900 60 INCH ALL OPTIONS (R03) - Z20ASA87B2/E87BH/BW/LW
SUSPENSION, FRONT CONTROL ARMS - Z20ASA87B2/E87BH/BW/LW (C701011-3)

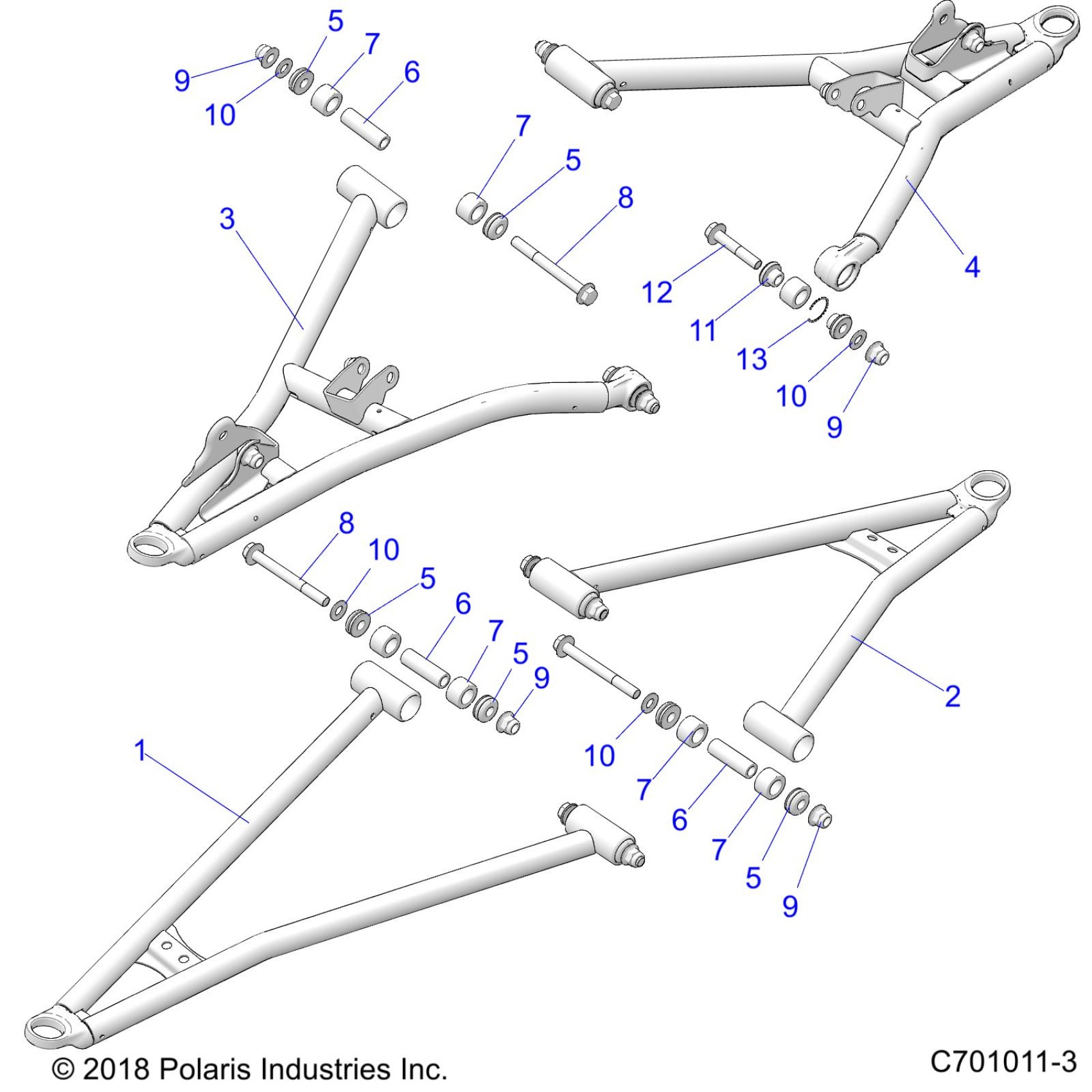

Polaris RZR TRAIL S 900 60 INCH ALL OPTIONS (R03) - Z20ASA87B2/E87BH/BW/LW SUSPENSION, FRONT CONTROL ARMS - Z20ASA87B2/E87BH/BW/LW (C701011-3) Diagram
#
Description
Price
1
WELD-CTRL ARM,LWR,FRT,LH,60,BL
1021416-458
$127.99
2
WELD-CTRL ARM,LWR,FRT,RH,60,BL
1021417-458
$127.99
3
WELD-CTRL ARM,UPR,FRT,LH,60,BK [BH][BW][LW]
1023223-458
$195.99
3
WELD-CTRL ARM,UPR,FRT,LH,60,BK [B2]
1023225-458
Unavailable
4
WELD-CTRL ARM,UPR,FRT,RH,60,BK [BH][BW][LW]
1023224-458
$195.99
4
WELD-CTRL ARM,UPR,FRT,RH,60,BK [B2]
1023226-458
Unavailable
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
6
SHAFT-PIVOT,SHORT,M10
5139966
$5.59
6
SHAFT-PIVOT,SHORT,M10
5139966
$5.59
6
SHAFT-PIVOT,SHORT,M10
5139966
$5.59
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
8
SCREW, HEX FLANGE
7519043
$9.59
8
SCREW, HEX FLANGE
7519043
$9.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
WASHER
7556153
$1.99
10
WASHER
7556153
$1.99
10
WASHER
7556153
$1.99
10
WASHER
7556153
$1.99
11
ASM-PIVOT CAP,SEALED,SLIM,M10
1543735
$13.59
12
SCREW, HEX FLANGE
7519285
$2.39
13
28MM SPIRAL RING,STEEL
7710845
$3.59
