- RZR TRAIL S 900 60 INCH ALL OPTIONS (R03) - Z20ASA87B2/E87BH/BW/LW
CHASSIS, MAIN FRAME AND SKID PLATE - Z20ASA87B2/E87BH/BW/LW (C701029)

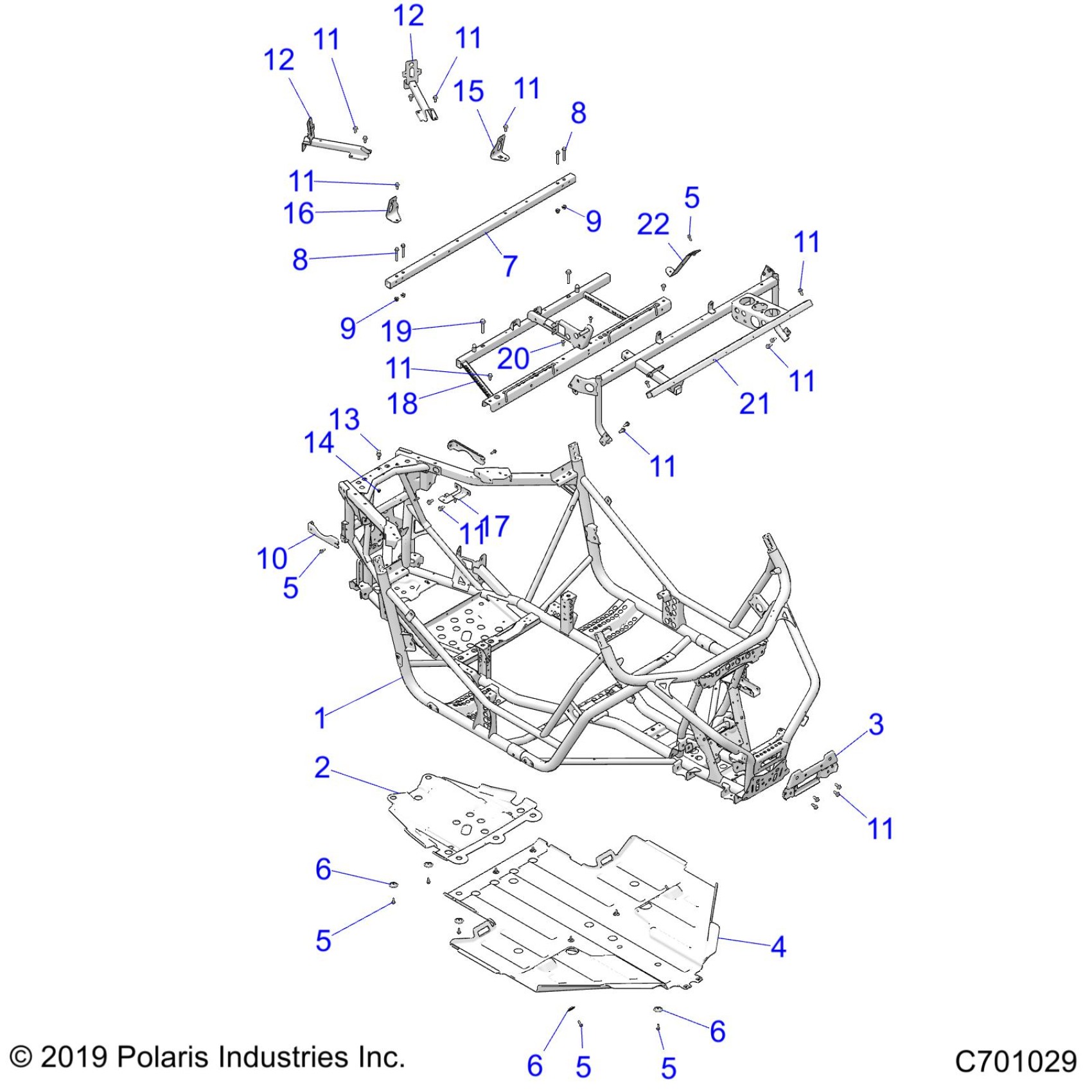

Polaris RZR TRAIL S 900 60 INCH ALL OPTIONS (R03) - Z20ASA87B2/E87BH/BW/LW CHASSIS, MAIN FRAME AND SKID PLATE - Z20ASA87B2/E87BH/BW/LW (C701029) Diagram
#
Description
Price
1
WELD-MAIN FRAME,BLK
1024315-458
$2,626.79
2
PLATE-SKID,REAR,BLK
5456433-070
$175.99
3
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
$51.99
4
PLATE-SKID,BLK
5456434-070
$183.99
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
6
WASHER-SKID PLATE
7556065
$4.79
6
WASHER-SKID PLATE
7556065
$4.79
6
WASHER-SKID PLATE
7556065
$4.79
7
ASM-TUBE,TOP FRAME,ECOAT
1024407-329
$83.59
8
SCREW
7517281
$8.99
8
SCREW
7517281
$8.99
9
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
9
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
BRACKET, FASCIA
5259106
$14.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
11
BOLT
7518555
$2.39
12
MOUNT, BODY, MATTE BLACK
1020506-458
$59.99
12
MOUNT, BODY, MATTE BLACK
1020506-458
$59.99
13
PLUNGER, BOX, LATCH
5139009
$13.59
14
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
15
TIEDOWN,FRONT,LH,M.BLK
5259103-458
$30.79
16
TIEDOWN,FRONT,RH,BLK
5263590-458
$27.99
17
MOUNT, COIL, MATTE BLACK
5259105-329
$27.99
18
WELD-SEAT BASE,BLK
1020571-329
$195.99
19
BOLT
7518474
$4.79
20
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
21
DASH, E-COAT, BLACK
1020984-329
$307.99
22
BRACKET, DIN. MOUNT, BLACK
5257304-329
$27.99
