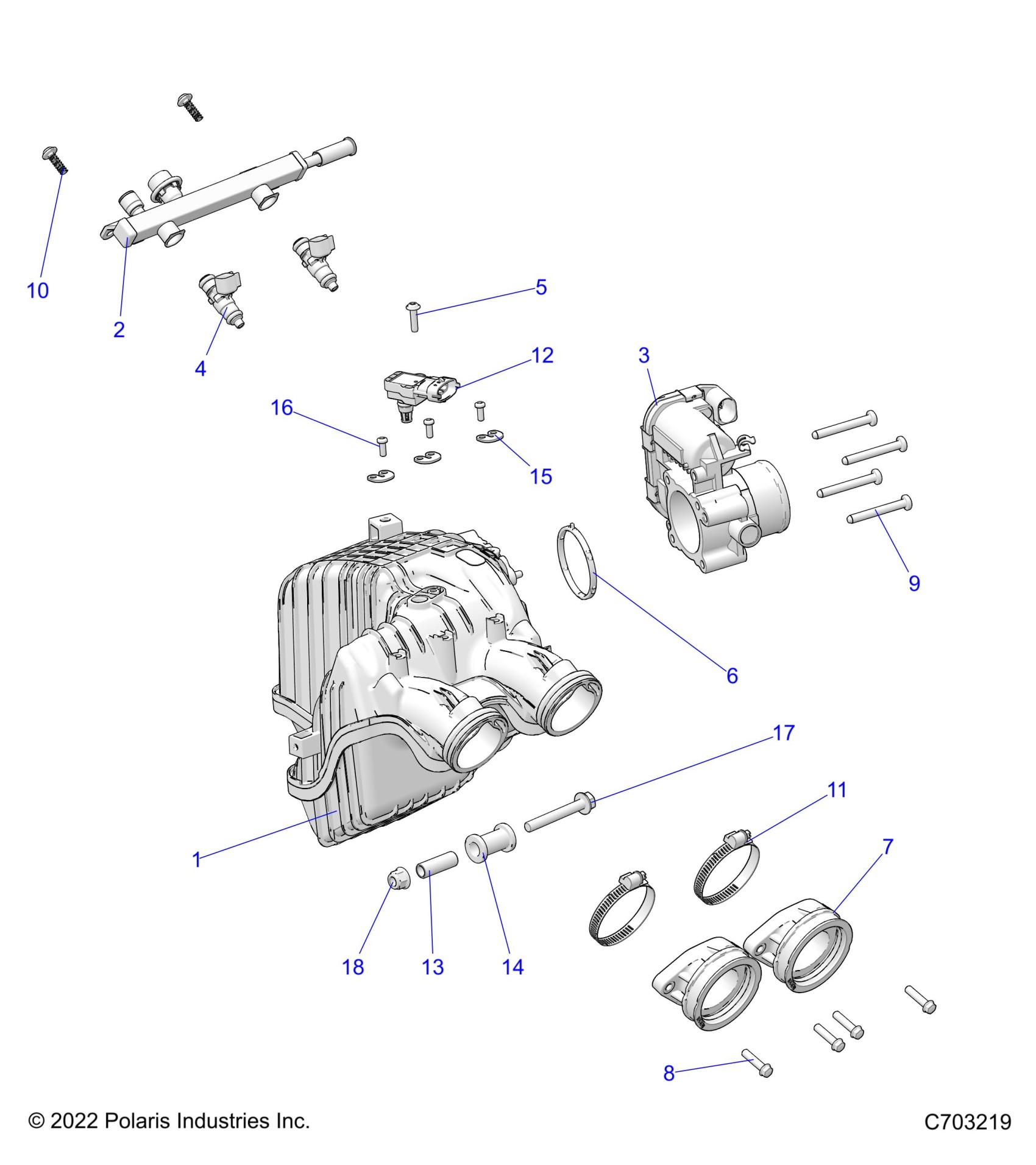

Polaris RZR TRAIL S 1000 ULTIMATE (R02) - Z25ASK99A6/B6 ENGINE, INTAKE and THROTTLE BODY - Z25ASK99A6/B6 (C703219) Diagram

MANIFOLD-INTAKE COMPOS,EVAP,19 [INCL. 6,13,14][B5]

1205892

$227.99

MANIFOLD-INTAKE,COMPOSITE,19 [INCL. 6,13,14][A5]

1205891

$203.99

RAIL-FUEL

2521886

$159.99

THROTTLE-ETC,46MM

1204455

$495.29

INJ., EV 14 COMP, EXT [INCL. O-RINGS]

2521387

$115.99

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

O-RING GREEN, LOWER

5415066

$11.32

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.99

GASKET-ETC,EN.0113664

5813964

$13.59

ADAPTER-THROTTLE BODY,1 PIECE

1205213

$67.99

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

SCR-1/4X2 HI/LO-PH-PN TRX-M

7518377

$4.79

SCR-TXWH-6MMX20MM DELTA PT CLR

7520922

$7.19

CLAMP, BAND, NARROW

7080413

$3.19

SENSOR-TMAP DSS3-TF

2411528

$93.08

LIMITER-COMPRESSION,AF.0113666

5138678

$35.99

GROMMET-LX.0113665

5813965

$19.99

CLIP, INTAKE ROUTING

5258229

$3.99

SCREW-PLASTITE,4.5MM

7519933

$3.99

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
