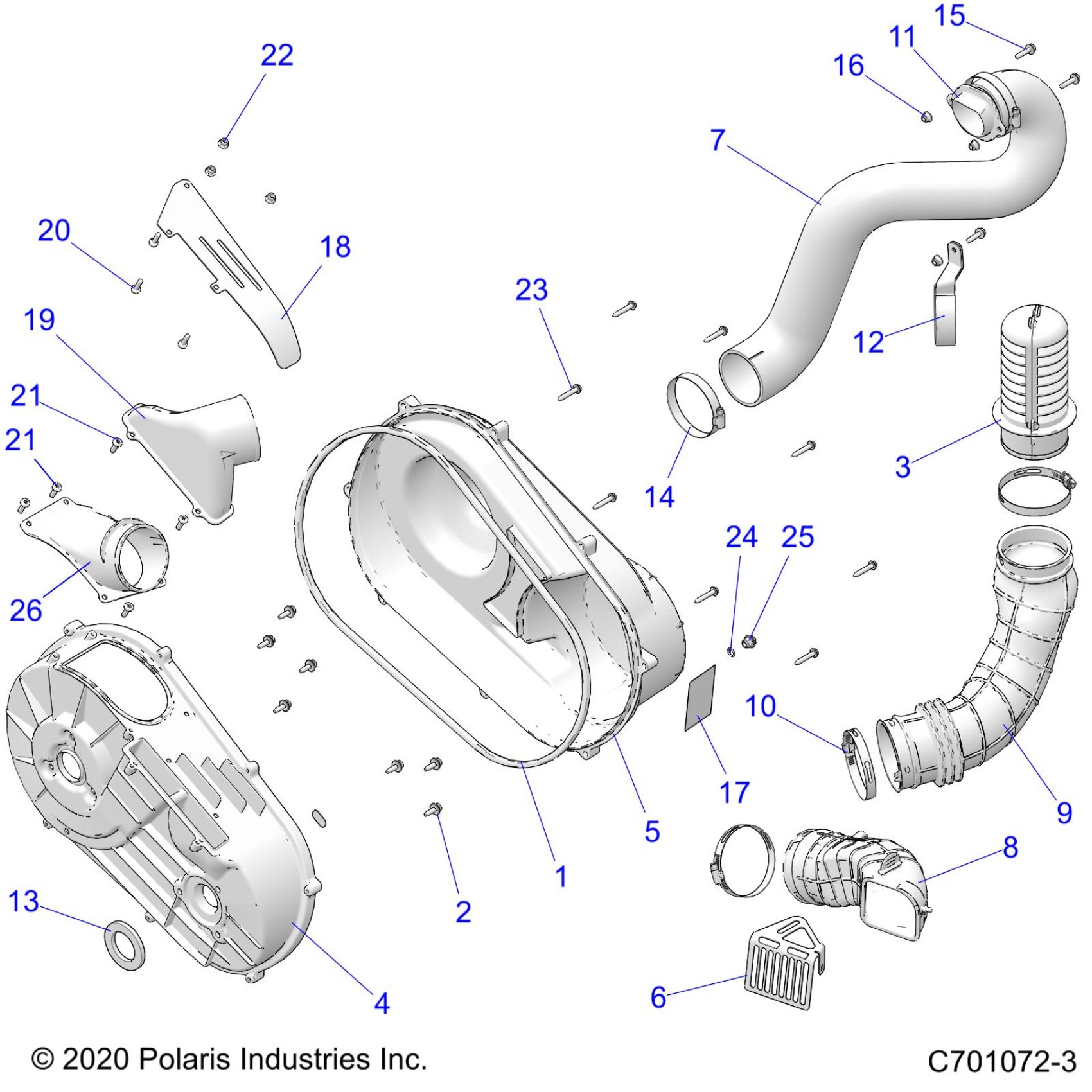

Polaris RZR TRAIL S 1000 ULTIMATE (R02) - Z25ASK99A6/B6 DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z25ASK99A6/B6 (C701072-3) Diagram

SEAL-OUTER CLUTCH COVER

5526449

$44.51

SCR-TFHFL-M6X1.0X20 S/R ZOD

7519278

$4.79

ASM., INTAKE, CLUTCH DUCT

2635411

$31.99

ASM., COVER, CLUTCH, INNER [INCL. 18-22,26]

2634863

$159.99

K-CVR,CLUTCH,OTR,GENERAL [INCL. 6,7,17]

2207414

$179.99

BRACKET, SCREEN, BELT

5256732

$11.19

HOSE-CLUTCH INTAKE,SP

5415488

$91.99

HOSE, CLUTCH, AIR OUTLET

5451061

$107.99

HOSE, CLUTCH, AIR INLET

5451062

$43.99

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

BOOT, PLASTIC, INTAKE

5451776

$9.59

CLAMP-P,LARGE

7082088

$13.59

SEAL-COVER,PTO

5813708

$23.99

CLAMP,HOSE,3.75,SS

7080907

$11.19

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

DUCT, CLUTCH, AIR INLET

5450051

$43.99

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

DUCT, CLUTCH, AIR OUTLET

5450846

$39.99
