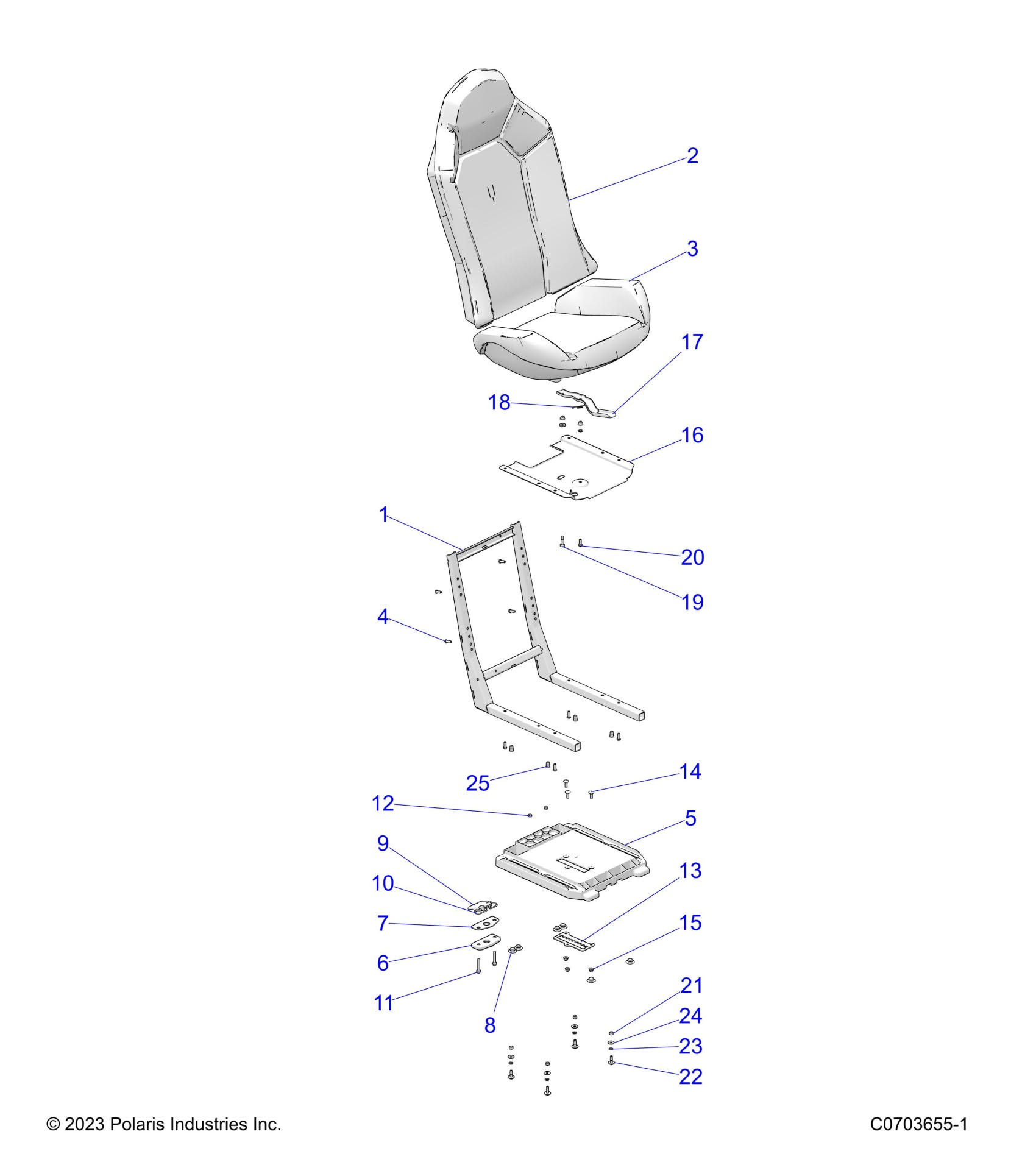

Polaris RZR TRAIL S 1000 ULTIMATE (R02) - Z25ASK99A6/B6 BODY, SEAT ASM. AND SLIDER - Z25ASK99A6/B6 (C0703655-1) Diagram

WELD-FRAME, SEAT

1021289

$67.99

ASM-SEAT,BACK,IRED/BLK,B ST

2693359

$383.99

ASM-SEAT BTM,IRED/BLK,B ST

2693360

$395.99

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 3 OF 15, 25]

2685704

$195.99

ASM., BASE, SEAT [INCL. 7-12]

2634889

$123.99

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

PLATE-LATCH,SEAT

5258647

$6.39

GROMMET, SEAT, BASE

5413441

$3.99

HANDLE-SEAT BASE LATCH

5437121

$4.84

SPRING-LATCH,SEAT

7082653

$33.43

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE

5270634

$14.39

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$59.99

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

SPRING

7044099

$5.59

SCR-SH-M6X1.0X9.5 12.9 ZY3

7518786

$2.39

BOLT, SHOULDER

7518897

$1.59

TUBE, SPACER

5340145

$4.79

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

WASHER-FL .281X.750X.062-Y

7555859

$1.49

INSERT-1/4-20,HEX HEAD

7547798

$4.79
