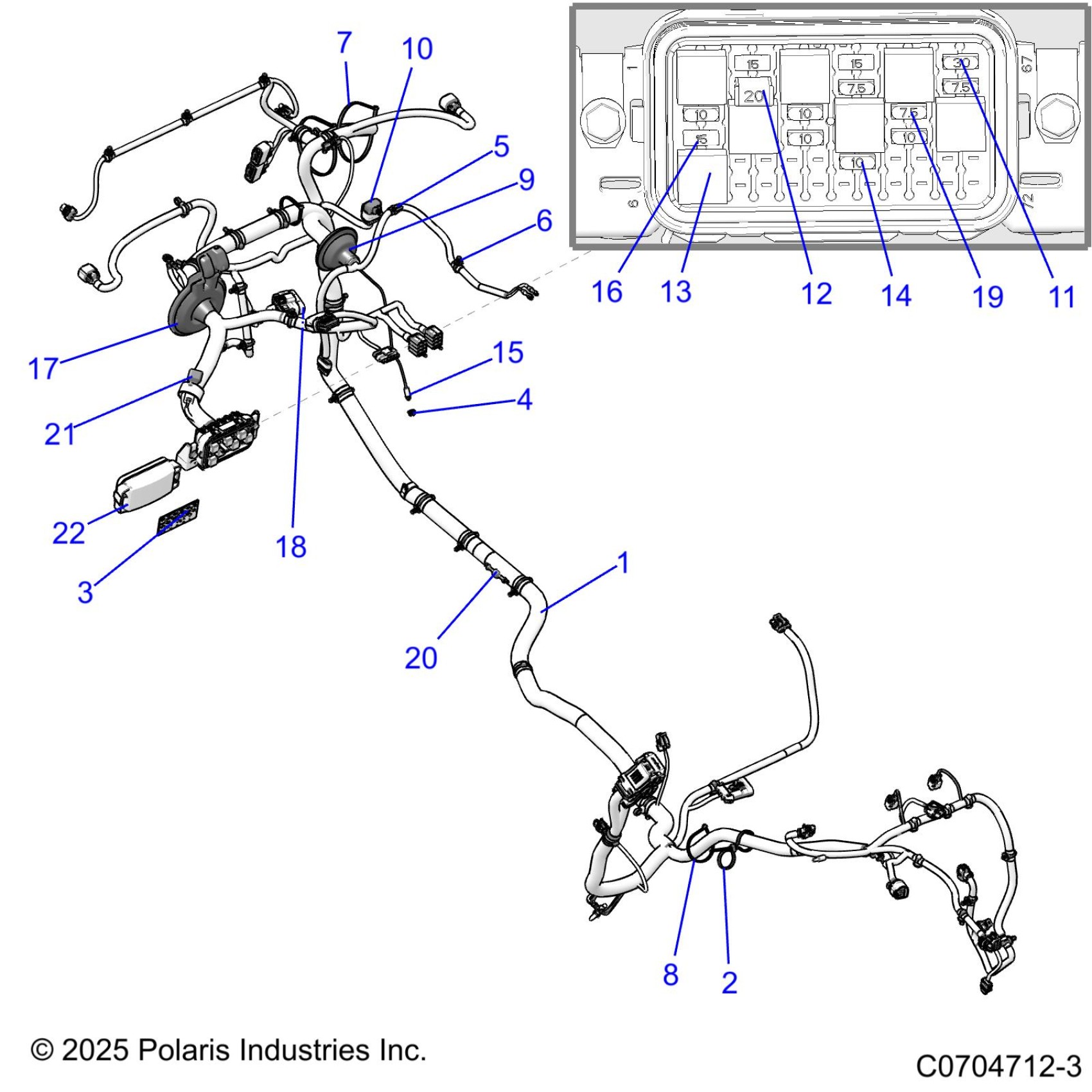

Polaris RZR TRAIL S 1000 ULTIMATE (R01) - Z26ASF99A6 ELECTRICAL, WIRE HARNESS - Z26ASF99A6 (C0704712-3) Diagram

HARN-CHASSIS,RZR1000,PR TRL [INCL. ALL]

2417897

Unavailable

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

LABEL-FUSE BOX

7192392

Unavailable

CLIP - ROUTING, DIN BOX

7082020

$5.59

CLIP, EDGE, HARNESS

7081890

$10.39

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

GROMMET - 65 MM, BLK

5813954

$7.19

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

FUSE-MAIN,30 AMP

2434015

$7.19

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

FUSE-IGNITION,10 AMP

2434016

$4.79

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

GROMMET - DASH FUSE CTR, RZR

5416469

$10.39

CAP-EVAP CONNECTOR

4018655

$3.99

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

COVER,FUSEBOX,72WAY

4014047

$67.99
