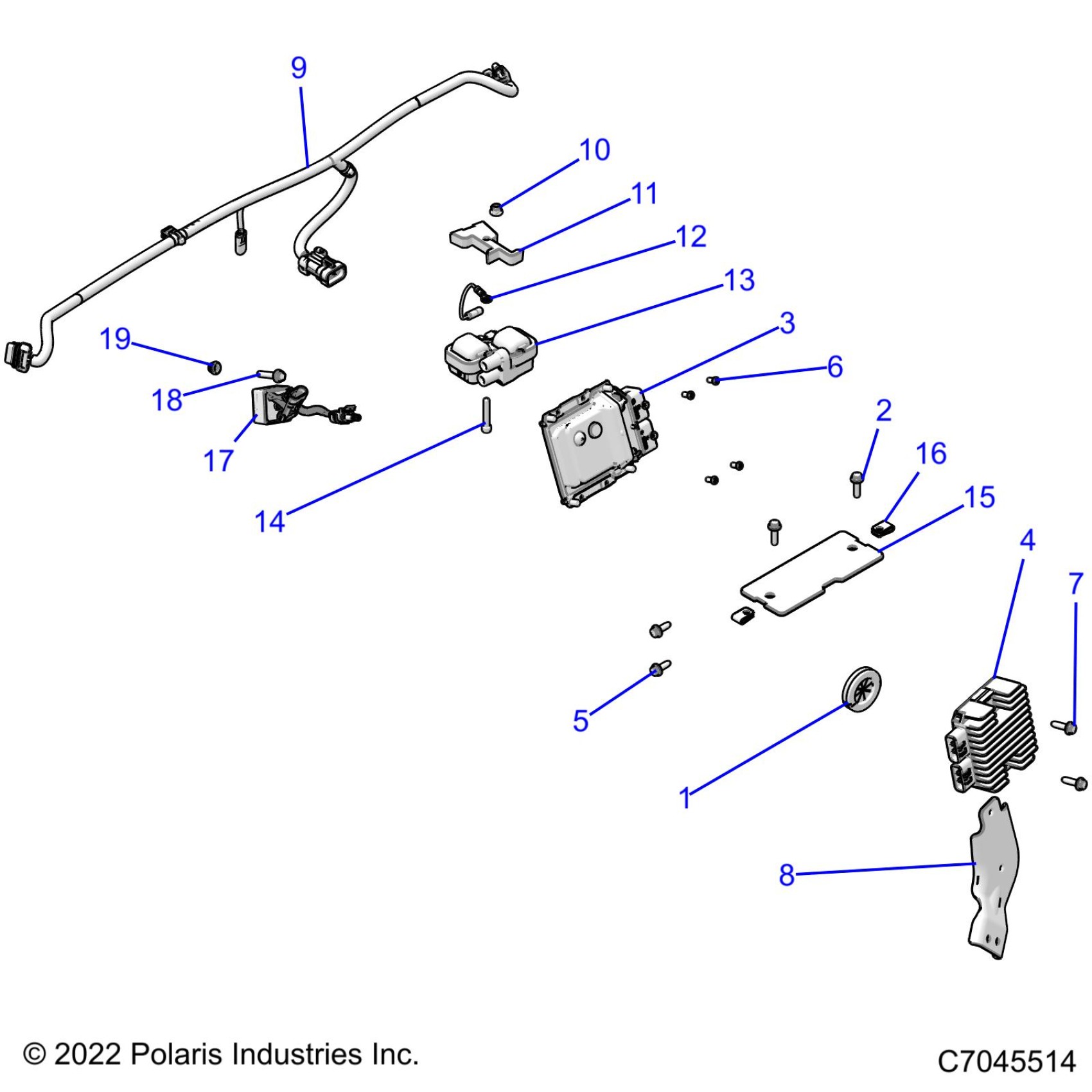

Polaris RZR TRAIL 900 PREMIUM (R02) - Z22A5P87A5 ELECTRICAL, HARNESS COMPONENTS - Z22A5P87A5 (C701024-3) Diagram

GROMMET, ELECTRICAL, CAB

5414440

$7.19

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

ECM-HARD,ME17,2CYL,250K

4014125

$694.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

BRKT-MOUNT,REGULATOR,ECOAT

5264572-329

$35.99

HARNESS-BOX,RZR,64,CAMERA

2415211

$59.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49

SPACER-COIL MOUNT

5436577

$3.99

JUMPER, COIL GROUND

4014422

$27.99

COIL-EFI

4010425

Unavailable

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

PANEL-CLOSEOFF,FUSE CTR LOC

5454317

$8.79

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

RELAY, SOLID STATE, 9 AMP, LONG, LD �

4012829

$71.99

BOLT-M6X1.0X35,HXFLG/SH-OLV D �

7518612

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D �

7547332

$3.99
