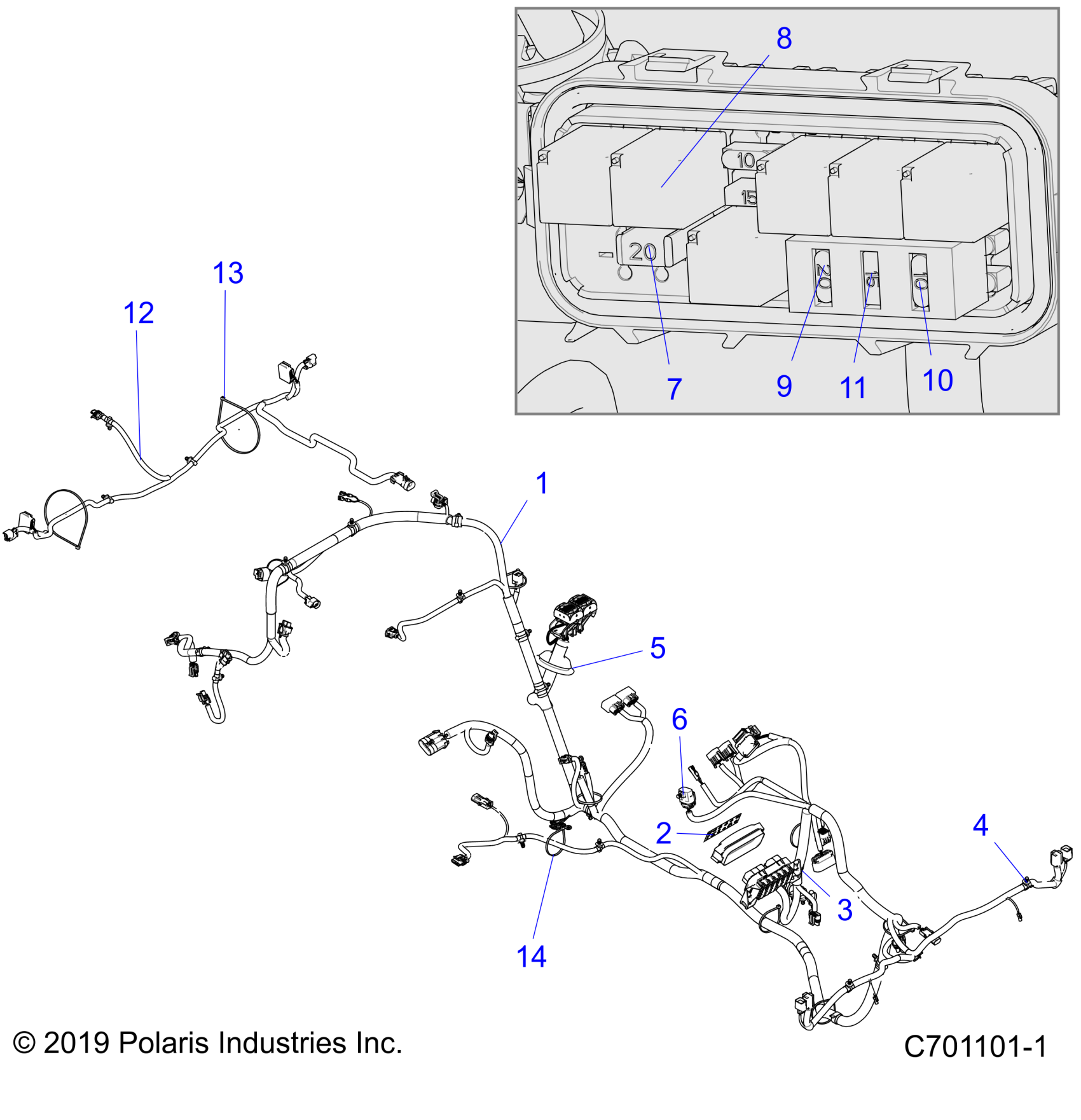

Polaris RZR TRAIL 570 (R02) - Z22CHA57A2/K2 ELECTRICAL, WIRE HARNESS - Z22CHA57K2 (C704031-1) Diagram

#

Description

Price

1

HARNESS-CHASSIS,570 RZR INTL [INCL. 2-11]

2413578

$1,049.99

2

LABEL-FUSE BOX,EU

7185155

Unavailable

3

CLIP, EDGE, HARNESS

7081890

$10.32

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

5

GROMMET - 65 MM, BLK

5813954

$8.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

7

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

8

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

9

FUSE-PARK,20 AMP

2434017

$8.08

10

FUSE-IGNITION,10 AMP

2434016

$5.65

11

FUSE-MINI BLADE,15 AMP

2410280

$8.08

12

Harness, Box

2411730

$150.06

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

Unavailable

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable
