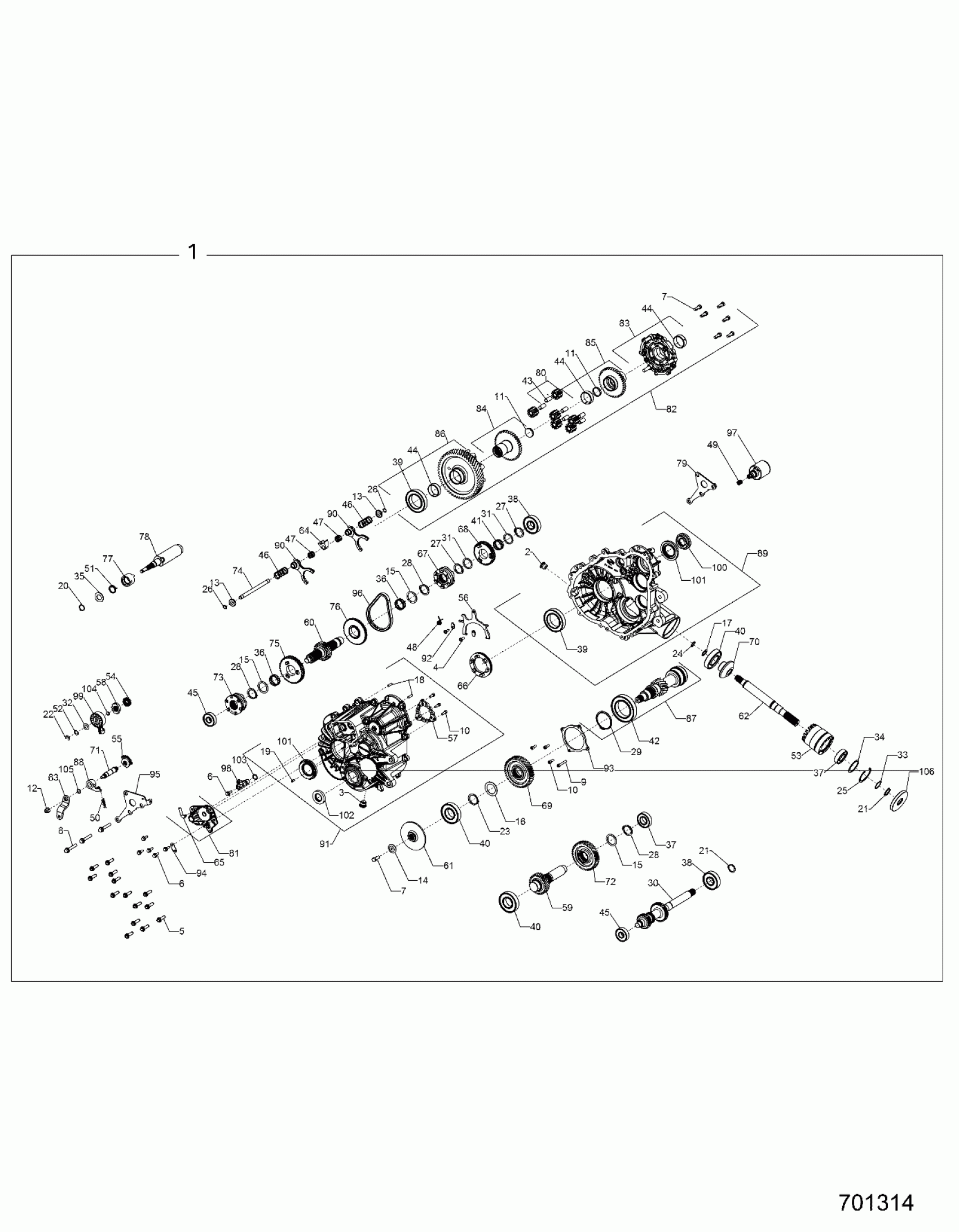

Polaris RZR TRAIL 570 (R02) - Z22CHA57A2/K2 DRIVE TRAIN, MAIN GEARCASE - Z22CHA57K2 (701314) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE,DIFF,BLW [INCL. ALL]

1333690

$4,864.99

2

PLUG, M18 X 1.5

3234755

$27.78

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

4

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

7

SCREW, CAP HH M8 X 1.25 X 25

3235096

$9.70

7

SCREW, CAP HH M8 X 1.25 X 25

3235096

$9.70

8

SCREW, HEX FLANGE M8 X 50

3235207

$10.32

9

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.11

10

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

10

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

11

PLUG,EXPANSION,1 1/4

3234249

$13.49

11

PLUG,EXPANSION,1 1/4

3234249

$13.49

12

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

13

WASHER-CUP

3234091

$9.52

13

WASHER-CUP

3234091

$9.52

14

WASHER, BELLEVILLE 42140 X 1.25 X 0.09

3234952

$7.14

15

WASHER-32.3X42X1.5(115288)

3235211

$10.32

15

WASHER-32.3X42X1.5(115288)

3235211

$10.32

15

WASHER-32.3X42X1.5(115288)

3235211

$10.32

16

WASHER-35.6X57X1.5(115289)

3235212

$13.49

17

WASHER-17.3X25X1.5(115290)

3235213

$15.87

18

PIN, DOWEL 6 X 20

3234330

$7.14

19

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

20

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

21

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

21

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

22

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

23

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

24

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.17

25

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

26

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

26

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

27

RING, RETAINING,

3234205

$11.11

27

RING, RETAINING,

3234205

$11.11

28

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

28

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

28

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

29

RING-RETAIN,VSH-237(130298)

3235216

$10.32

30

SHAFT, BOSS LW, UTILITY, INPUT, AVALANCHE

3235710

$244.99

31

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

31

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

32

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

33

SHIM, 1.180 OD X 0.995 ID

3234272

$36.41

34

SHIM, 2.040 OD X 1.63 ID

3234273

$13.75

35

SPACER, 19.4 X 34.0 X 2.0

3235883

$28.56

36

BEARING, NEEDLE

3233014

$43.65

36

BEARING, NEEDLE

3233014

$43.65

37

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

37

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

38

BEARING

3233020

$47.62

38

BEARING

3233020

$47.62

39

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

39

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

40

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

40

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

40

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

41

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.75

42

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.52

43

BEARING, PLAIN, 10 X 12 X 25

3234239

$15.87

44

BEARING, PLAIN, 40 X 44 X 15

3234241

$15.87

44

BEARING, PLAIN, 40 X 44 X 15

3234241

$15.87

44

BEARING, PLAIN, 40 X 44 X 15

3234241

$15.87

45

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

45

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

46

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

46

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

47

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

47

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

48

SPRING, TORSION, RETURN

3234276

$8.89

49

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

50

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

51

SPRING, TORSION

3235885

$20.22

52

WASHER-SPRING,210393

3235327

$9.52

53

TUBE, SNORKEL MACHINED

3234278

$101.17

54

GEAR, SECTOR, 16T

3233839

$36.41

55

GEAR-SECTOR,31T

3233832

$36.41

56

FORK, PIVOT SHIFT, REAR DIFF

3235455

$93.08

57

PLATE, PARK, 12 FACE

3235456

$40.46

58

STAR, DETENT,

3235982

$36.41

59

SHAFT-IDLER,29T(285803)

3235223

$128.24

60

SHAFT-REVERSE,27T(285878)

3235380

$246.89

61

DISC, BRAKE

3235372

$64.75

62

SHAFT-FRONT OUTPUT(285914)

3235394

$133.56

63

BELLCRANK, 92 DEG

3235386

$32.37

64

COLLAR-SHIFT

3234073

$31.75

65

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

66

DOG, ENGAGEMENT, 6-FACE

3234928

$87.13

67

ENGAGEMENT DOG,6-FACE(352857)

3235233

$129.51

68

GEAR-53T(352858)

3235234

$99.74

69

GEAR-46T,STAGE 3(352872)

3235236

$128.24

70

GEAR-13T,FRONT OUTPUT(352957)

3235237

$156.74

71

SHAFT-SHIFT(352973)

3235238

$42.74

72

GEAR, 46T, STAGE 2

3235381

$156.74

73

SHIFT DOG, PARK/LOW (353357)

3235457

$145.70

74

RAIL-SHIFT SHAFT(353622)

3235542

$28.32

75

GEAR, LOW, 61T

3235561

$99.74

76

SPROCKET-48T,6-FACE REVERSE

3235755

$80.94

77

CAM, PARK

3235983

$183.95

78

DRUM, SHIFT MACH,

3235984

$279.27

79

WELDMENT, REAR MOUNT BRACKET

3235239

$40.46

80

GEAR SUBASSEMBLY [INCL. BUSHING]

3234469

$72.84

81

SUBASSEMBLY, SECTOR COVER [INCL. ALL HARDWARE]

3235713

$135.54

82

SUBASSEMBLY, AVALANCHE, DIFFERENTIAL

3235373

$489.24

83

SUBASSEMBLY, DIFF COVER [INCL. PLUG,BUSHING] [INCL. PLUG, BUSHING]

3235376

$169.43

84

SUBASSEMBLY, 39T SIDE GEAR [INCL. PLUG] [INCL. PLUG]

3235374

$223.24

85

SUBASSY, 39T SIDE GEAR [INCL. PLUG, BUSHING] [INCL. PLUG, BUSHING]

3235375

$223.24

86

SUBASSY, GEAR 53T [INCL. PINS, BUSHING, BEARING] [INCL. PINS, BUSHING, BEARING]

3235378

$484.11

87

SUBASM., PINION, 11T [INCL. BEARING, RET. RING]

3235371

$519.99

88

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

89

SUBASSEMBLY LH CASE [INCL. HARDWARE] [INCL. ALL HARDWARE]

3235831

$549.99

90

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

90

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

91

SUBASSEMBLY, RH COVER [INCL. ALL HARDWARE]

3236008

$509.99

92

RETAINER-FORK

3234934

$12.34

93

COVER-BEARING,CNTR DR. [INCL. CENTER DRIVE]

3235241

$48.56

94

BRACKET, WIRE HARNESS

3235350

$8.89

95

BRKT-REAR MOUNT(430598)

3235351

$48.56

96

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

97

SOLENOID

3235478

$295.46

98

SENSOR-SPEED,TRANS

4013908

$109.27

99

SWITCH, ROTARY , 2 PIN RESISTIVE

7662299

$113.32

100

SEAL, TRIPLE LIP VITON HELIX 30 X 47

3234851

$42.74

101

SEAL-SHAFT,OUTPUT

3235830

$69.99

101

SEAL-SHAFT,OUTPUT

3235830

$69.99

102

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

103

O-RING

3234302

$7.27

104

O-RING, -012 VITON

3233836

$6.87

105

O-RING, -014 VITON

3233828

$6.87

106

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$36.41
