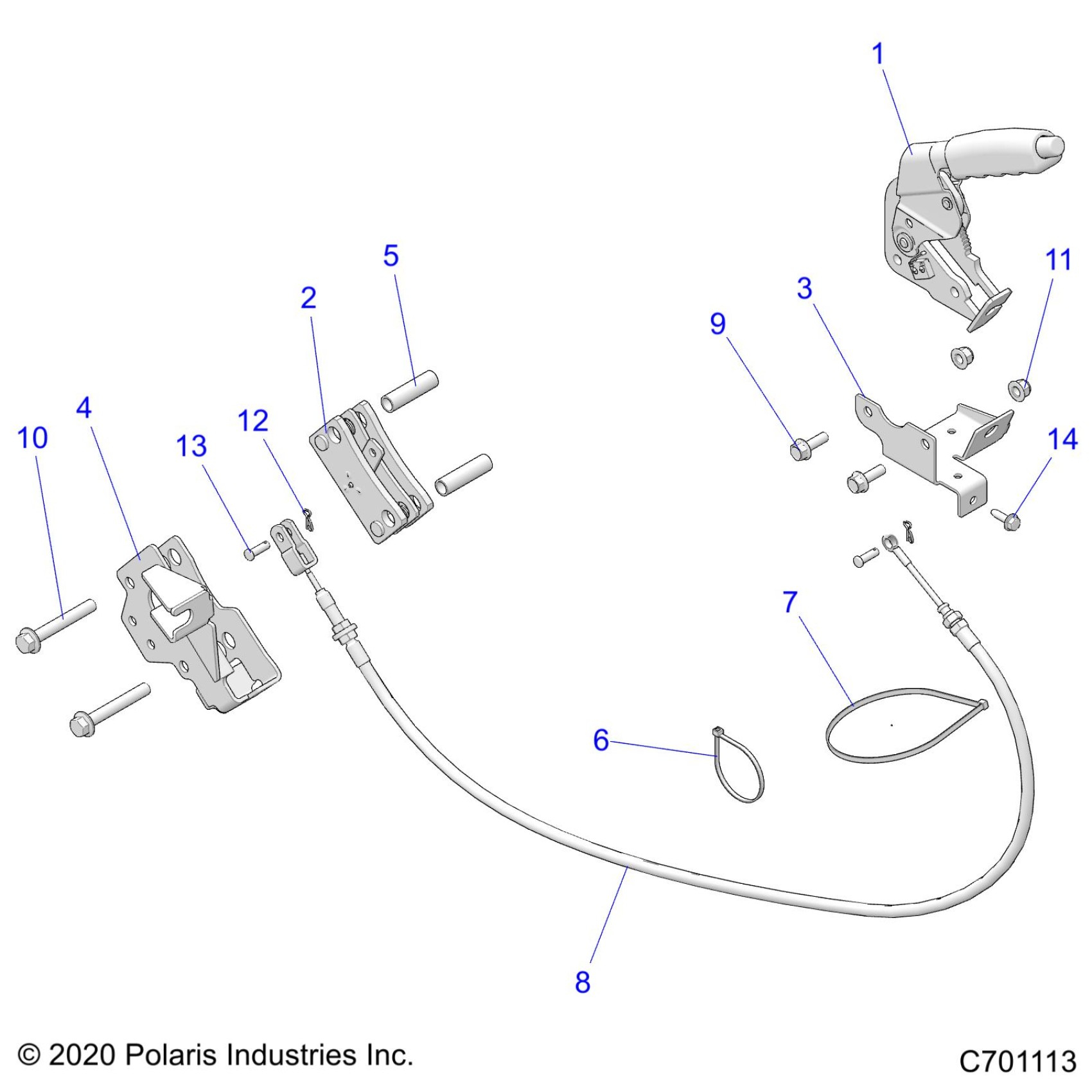

Polaris RZR TRAIL 570 (R02) - Z22CHA57A2/K2 BRAKES, PARKING BRAKE - Z22CHA57K2 (C701113) Diagram

#

Description

Price

1

ASM-LEVER,PARK BRAKE

1913411

$57.19

2

ASM., CALIPER, PB, AFT-SB230C, RIVETED, MNI

1911972

$179.99

3

BRKT-MNT,PARKBRAKE LEVER,570EU

5263786

Unavailable

4

BRACKET, SHIFT, PARK BRAKE, INTL

5256200

$103.99

5

SPACER, PARKING BRAKE, 2 INCH

5336804

$11.99

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

8

CABLE, PARKING BRAKE, 44 INCH

7081734

$75.99

9

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

10

BOLT-M10X1.25X70,HXFLG-OLIVE D

7518561

$7.19

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

PIN-CLIP,14MM

7661140

$1.49

13

PIN-CLEVIS, 1/4 X 3/4 -Y

7661843

$2.39

14

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
