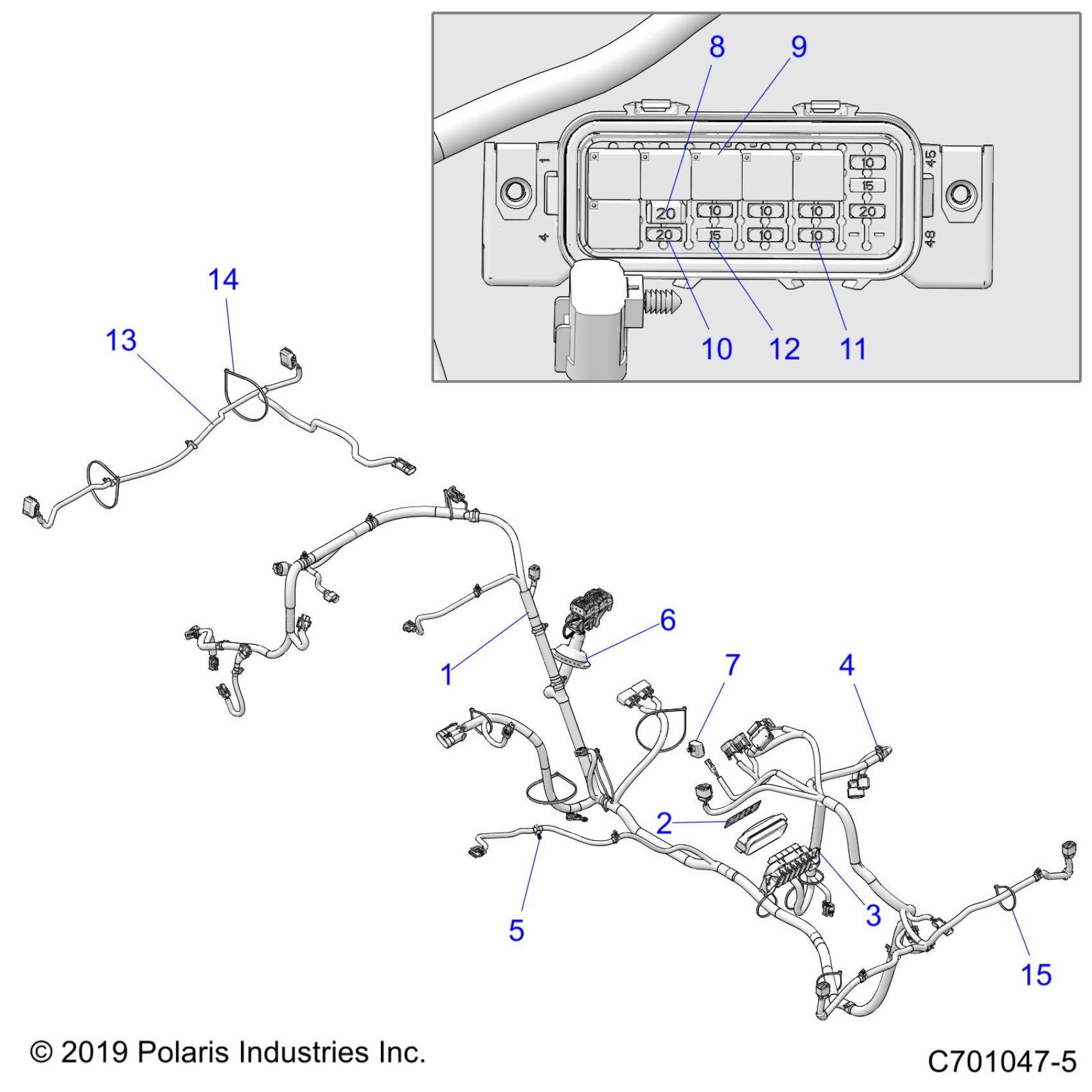

Polaris RZR TRAIL 570/PREMIUM (R04) - Z21CHA57A2/K2/E57AK ELECTRICAL, WIRE HARNESS - Z21CHE57AK (C701047-4) Diagram

#

Description

Price

1

HARNESS-CHASSIS,RZR 570 LE [INCL. 2-12]

2413473

$1,135.19

2

LABEL-FUSE BOX

7185045

Unavailable

3

CLIP-EDGE,HARNESS

7081890

$10.39

4

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

9

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

10

FUSE-PARK,20 AMP

2434017

Unavailable

11

FUSE-IGNITION,10 AMP

2434016

$4.79

12

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

13

HARNESS-BOX

2414714

$95.99

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

Unavailable

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable
