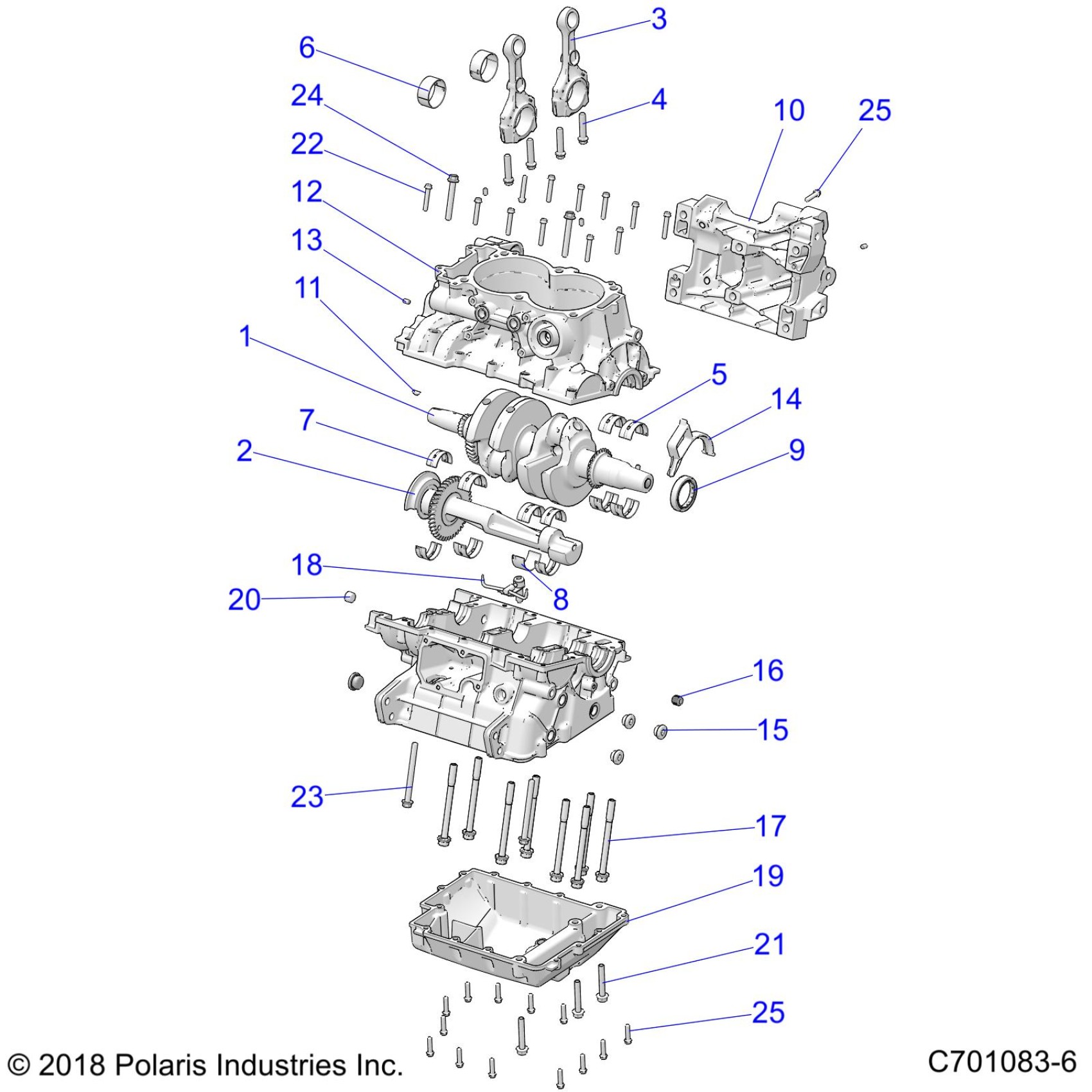

Polaris RZR S4 1000 (R02) - Z20A4E99AH/LH/BH ENGINE, CRANKCASE AND CRANKSHAFT - Z20A4E99AH/BH/LH (C701083-6) Diagram

ASM., CRANKSHAFT

3023169

$1,201.74

ASM-BALANCE SHAFT

1204835

$364.27

ASM-CONNECTING ROD,CLN [INCL. 4]

3023077

$204.99

SCR-ROD,MJ9X1X40-4H6H,12.9

7520378

$5.56

BEARING-MAIN,G-90,41MM

3514662-001

$9.52

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.52

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.52

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.52

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.52

BEARING, CONNECTING ROD, WHITE

3514663-001

$8.73

BEARING, CONNECTING ROD, BLUE

3514663-002

$8.73

BEARING, CONNECTING ROD, GREEN

3514663-003

$8.73

BEARING, CONNECTING ROD, YELLOW

3514663-004

$8.73

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.52

BEARING-MAIN,CNTR,LWR BLU

3514803-002

$11.90

BEARING-MAIN,CNTR,LWR,GREEN

3514803-003

$11.90

BEARING-MAIN,CNTR,LWR,YELLOW

3514803-004

$11.90

SEAL-CRANKSHAFT

3610284

$32.37

BRKT-TRANSJOINT,MACH

5137795

$174.27

KEY-WOODRUFF,4X5

7721122

$7.84

K-CRANKCASE 3023658

2209239

$1,549.99

ASM., CRANKCASE [FROM 7/1/2020][INCL. 14-19,23,24]

1205719

Unavailable

ASM-CRANKCASE [TO 7/1/2020][INCL. 14-19,23,24]

1205720

$1,549.99

PIN-DOWEL,M6X10 [USE W/ 1205720]

5132835

$2.38

PIN-DOWEL,M6X10 [USE W/ 1205719]

5136879

$2.38

DIVERTER, OIL DRAIN

5452616

$24.27

PLUG-HEX SCKT,W/O-RING,M16X1.5 [USE W/ 1205719]

7052642

$8.99

PLUG-HEX SCKT,W/O-RING,M20X1.5 [USE W/ 1205720]

7052643

$7.94

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.65

SCR-HXFL M10X1.25X115MM 10.9

7520979

$13.49

JET, PISTON

3022856

$53.24

COVER, SUMP

5137873

$109.27

PLUG-3/8 NPT,HX/SOC W/SEALANT

7052413

$4.03

SCR-M8X1.25X50 HX/FL-Y

7517793

$5.56

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.97

SCR-HXFLG,M8X1.25X90

7519154

$7.14

SCR-HXFLG,M8X1.25X60

7519186

$6.64

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.97

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.97
