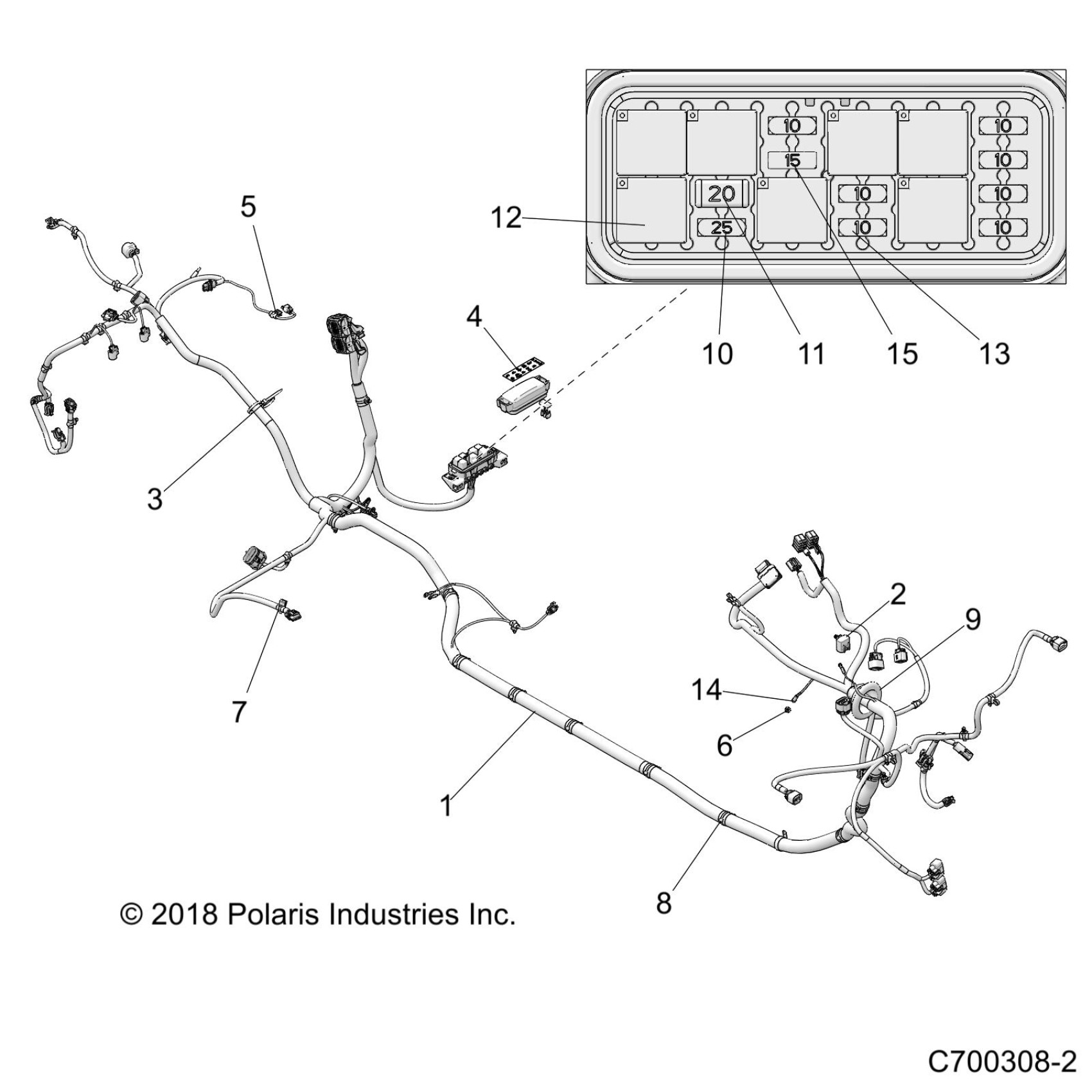

Polaris RZR S4 1000 (R02) - Z20A4E99AH/LH/BH ELECTRICAL, WIRE HARNESS - Z20A4E99AH/BH/LH (C700308-2) Diagram

#

Description

Price

1

HARNESS-CHASSIS,RZR,1000MP,EPS [INCL. ALL]

2414489

$1,275.99

2

COVER-DIAGNOSTIC,W/CLIP

-------

Unavailable

3

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

4

LABEL-FUSE BOX

7186513

Unavailable

5

CLIP-EDGE,1-3MM THICKNESS

7082427

$5.59

6

CLIP-ROUTING,DIN BOX

7082020

$5.59

7

CLIP-EDGE,HARNESS

7081890

$10.39

8

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

9

GROMMET-65MM,BLK

5813954

$7.19

10

FUSE-25A,MINI BLADE

4011653

$7.99

11

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

12

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

13

FUSE-IGNITION,10 AMP

2434016

$4.79

14

LED-PANEL MNT,12V,BLUE

2413217

$51.99

15

FUSE-MINI BLADE,15 AMP

2410280

Unavailable
