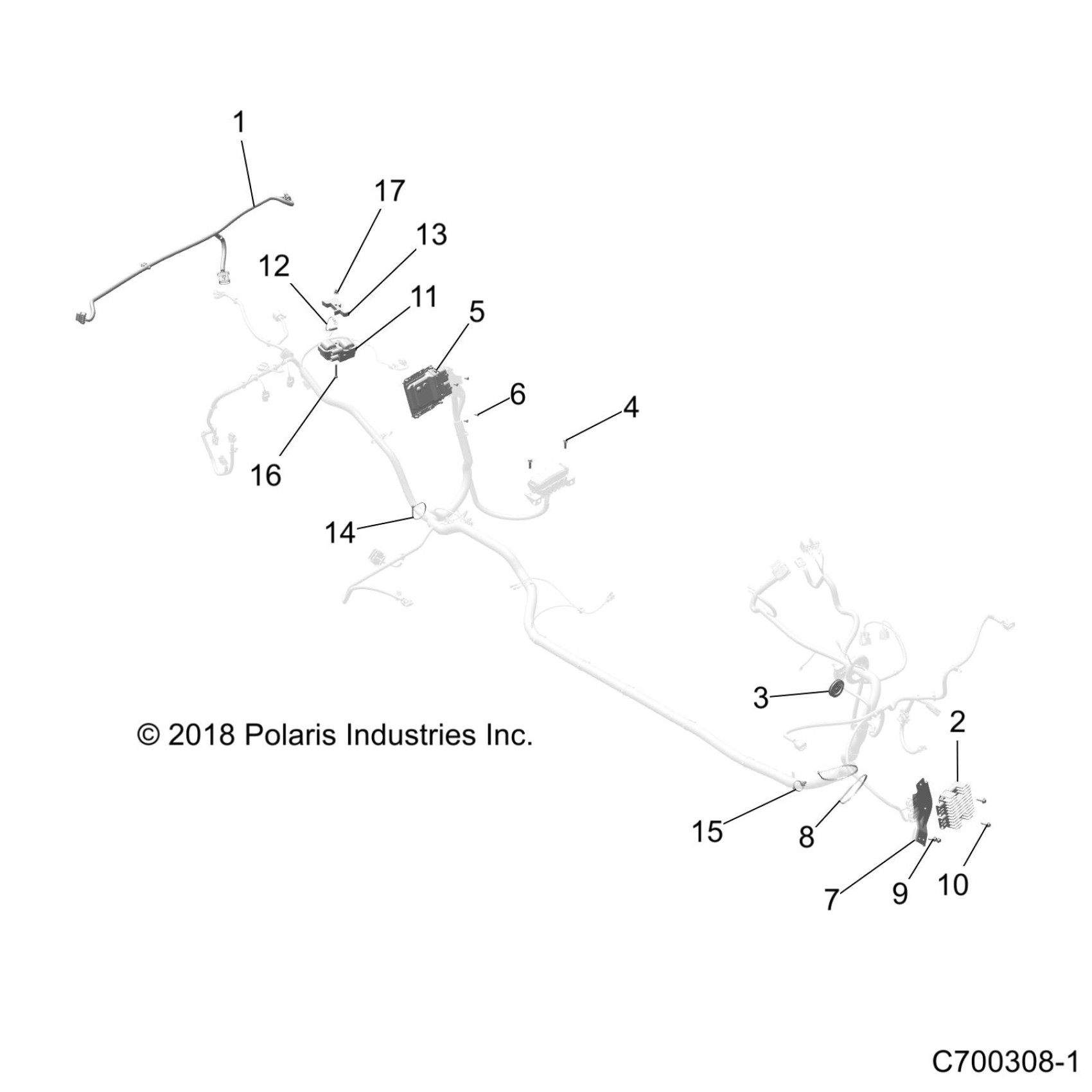

Polaris RZR S4 1000 (R02) - Z20A4E99AH/LH/BH ELECTRICAL, ECU, REGULATOR, ETC. - Z20A4E99AH/BH/LH (C700308-1) Diagram

Description

Price

HARNESS-BOX,RZR

2412287

$51.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

GROMMET

5414440

$7.19

BOLT, FLANGE, BLACK

7518576

$3.19

ECM, NO START

4014125

$694.99

SCREW

7519091

$3.19

BRKT-MOUNT,REGULATOR,ECOAT

5264572-329

$35.99

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

COIL-EFI

4010425

Unavailable

JUMPER ,COIL GROUND

4014422

$27.99

SPACER-COIL MOUNT

5436577

$3.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCREW

7518780

$3.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49
