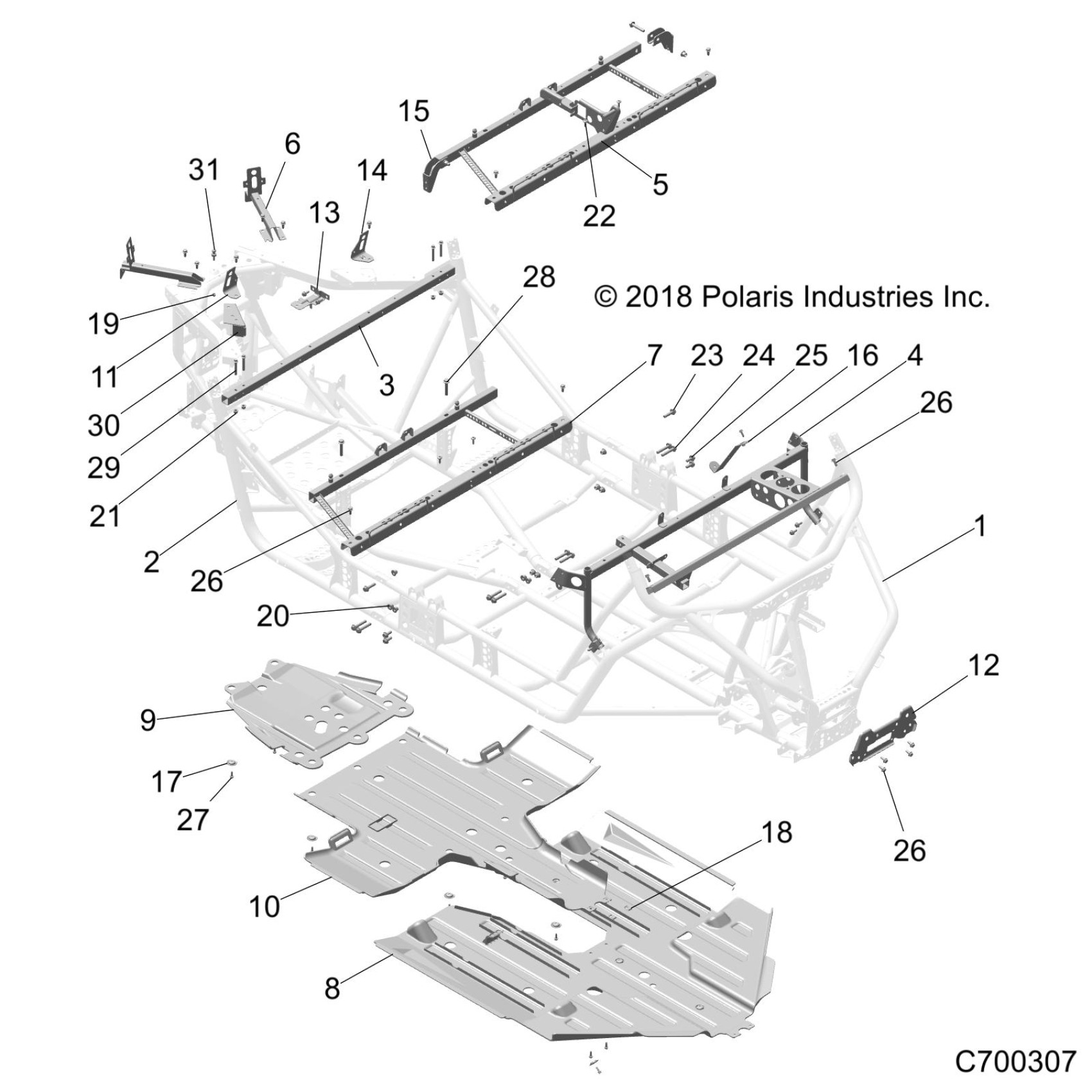

Polaris RZR S4 1000 (R02) - Z20A4E99AH/LH/BH CHASSIS, MAIN FRAME AND SKID PLATE - Z20A4E99AH/BH/LH (C700307) Diagram

#

Description
Price

1

WELD-MAINFRAME,FRT,MP,SWY,BLK

1024538-458

$1,764.39

2

WELD-MAINFRAME,REAR.BLK

1024233-458

$1,764.39

3

ASM-TUBE,TOP FRAME,ECOAT

1024407-329

$83.59

4

WELD-DASH,E-COAT BLK

1020984-329

$307.99

5

WELD-SEAT BASE,MP,BLK

1020572-329

$183.99

6

MOUNT, BODY, MATTE BLACK

1020506-458

$59.99

7

BASE, SEAT, REAR, BLACK

1019777-329

$223.99

8

PLATE-SKID,BLK [TO 5/31/2020]

5451895-070

$191.99

8

PLATE-SKID,BLK [FROM 5/31/2020]

5457844-070

Unavailable

9

PLATE-SKID,REAR,BLK

5456433-070

$175.99

10

PLATE-SKID,BLK

5456431-070

$239.99

11

TIEDOWN,FRONT,RH,BLK

5263590-458

$27.99

12

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

13

MOUNT, COIL, MATTE BLACK

5259105-329

$27.99

14

TIEDOWN, FRONT, LH, MATTE BLACK

5259103-458

$30.79

15

BRACKET, SEAT SUPPORT, FRONT, MP, BLACK

5258097-329

$51.99

16

BRACKET, DIN. MOUNT, BLACK

5257304-329

$27.99

17

WASHER-SKID PLATE

7556065

$4.79

18

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

20

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

21

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

22

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

23

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

24

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

25

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

26

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

26

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

26

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

27

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

28

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

29

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

30

SHIELD-BOX MOUNT

5262036

$35.99

31

PLUNGER, BOX, LATCH

5139009

$13.59
