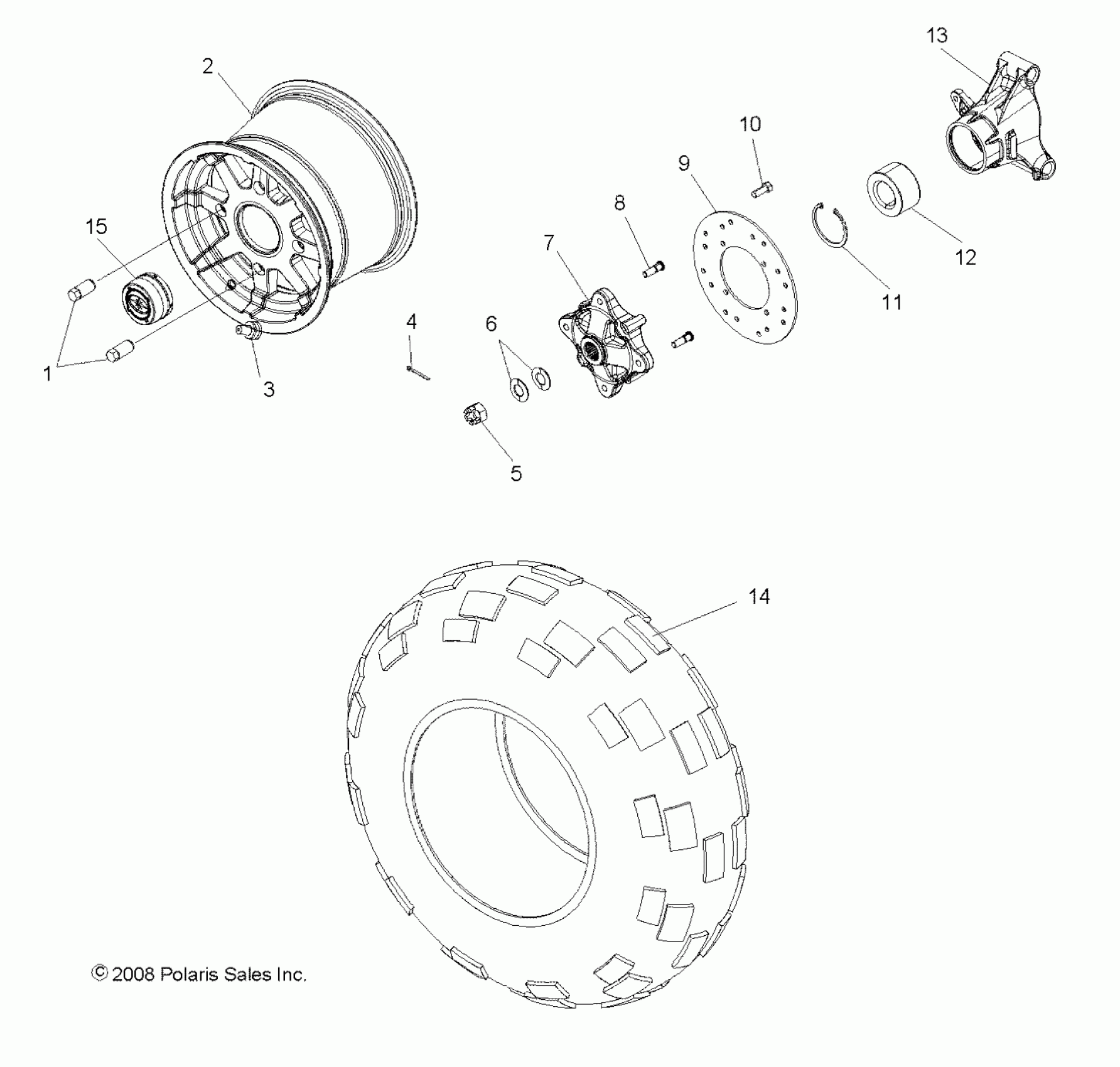

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU WHEELS, REAR - Z14VE76AD/7EAL/7EAW/EAJ/EAU (49ATVWHEELREAR09RZRS) Diagram

#

Description
Price

1

NUT, WHEEL

7547309

$3.59

2

RIM, REAR, CAST, MATTE BLACK [EAL][EAW][EAJ][EAU]

1521161-458

$259.59

2

RIM, REAR, CAST [AD]

1521161

$130.39

3

VALVE-RIM

1525017

$5.59

4

PIN, COTTER

7661404

$4.79

5

NUT, CASTLE

7547337

$1.99

6

WASHER, CONE

7555796

$7.99

7

HUB, WHEEL, REAR

5135113

Unavailable

8

STUD

7518378

$1.59

9

DISC, BRAKE, REAR

5248250

$75.99

10

BOLT

7518903

$3.99

11

RING, RETAINING

7710440

$10.39

12

BEARING, WHEEL

3514635

$39.99

12

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

13

CARRIER, BEARING, LH

5134984

$103.99

13

CARRIER, BEARING, RH

5134985

$103.99

14

TIRE, REAR, 27X12-R12

5414356

$193.19

15

CAP-RIM

1521128

$20.39
