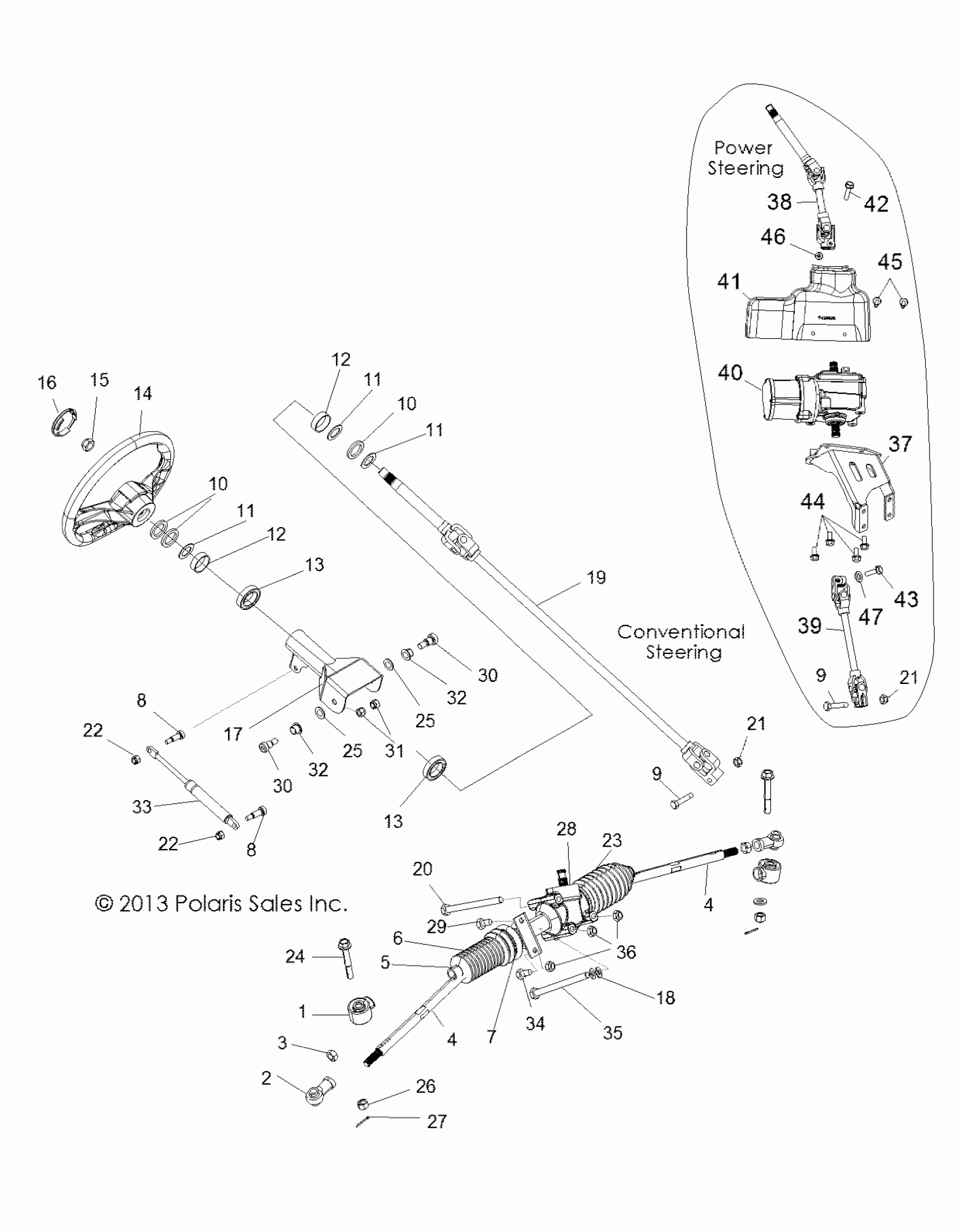

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU STEERING, STEERING ASM. - Z14VE76AD/7EAL/7EAW/EAJ/EAU (49RGRSTEERING13RZRS) Diagram

#

Description
Price

1

Boot, Seal, Rod End

5411920

$11.32

2

Rod End

7061054

$56.65

3

Nut, Jam, LH

7547028

$2.38

4

TIE ROD, INNER

----

Unavailable

4

TIE ROD, INNER

----

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.38

6

BOOT, PASSENGER, SIDE RACK

5412013

$62.21

7

CLAMP, BOOT, LARGE

7080979

$5.56

8

BOLT, SHOULDER

7518786

$2.38

8

BOLT, SHOULDER

7518786

$2.38

9

SCREW

7518644

$4.76

9

SCREW

7518644

$4.76

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.97

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.97

11

WASHER

7556483

$3.97

11

WASHER

7556483

$3.97

11

WASHER

7556483

$3.97

12

SPACER-STEERING SHAFT

5252796

$4.76

12

SPACER-STEERING SHAFT

5252796

$4.76

13

BEARING-STEERING

3514686

$9.52

13

BEARING-STEERING

3514686

$9.52

14

WHEEL-STEERING, 14"

1823623

$133.56

15

NUT

7547188

$5.56

16

CAP-STEERING WHEEL

5436536

$32.37

17

ASM., TUBE, PIVOT, BLACK [INCL. 13]

1017621

$169.99

18

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

19

SHAFT, STEERING, UPPER/LOWER [CONVENTIONAL STEERING]

1823681

$299.24

20

BOLT [LOCK PATCH]

7518895

$3.97

21

NUT, NYLOK

7547385

$1.19

21

NUT, NYLOK

7547385

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

23

BOOT, DRIVER SIDE, RACK

5412012

$66.65

24

Bolt

7517909

$5.56

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.19

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1823443

$674.49

29

BOLT

7512325

$2.38

30

BOLT, SHOULDER

7517607

$5.56

30

BOLT, SHOULDER

7517607

$5.56

31

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.19

32

BUSHING-PEDAL PIVOT

5431107

$8.73

32

BUSHING-PEDAL PIVOT

5431107

$8.73

33

ASM., SHOCK, OIL LOCKING

7043810

$109.24

34

BOLT

7512371

$4.76

35

BOLT

7515382

$2.38

36

NUT-5/16-18 NYLOK-Y

7542324

$0.79

37

MOUNT, EPS, BLACK [EPS]

1017716-458

$149.99

38

SHAFT, STEERING, EPS, UPPER [EPS]

1823749

$174.99

39

SHAFT, STEERING, EPS, LOWER [EPS]

1823782

$193.63

40

ASM., POWER STEERING [EPS]

2411826

$2,399.99

41

COVER, EPS [EPS]

5438626

$36.41

42

SCREW [EPS]

7516827

$6.35

43

BOLT, CAP [EPS]

7517924

$4.76

44

BOLT [EPS]

7518558

$3.97

45

SCREW [EPS]

7519092

$1.19

46

NUT-M6 FLANGE,NYLOC [EPS]

7547274

$1.19

47

WASHER, SPRING LOCK [EPS]

7552901

$1.19
