Partiron

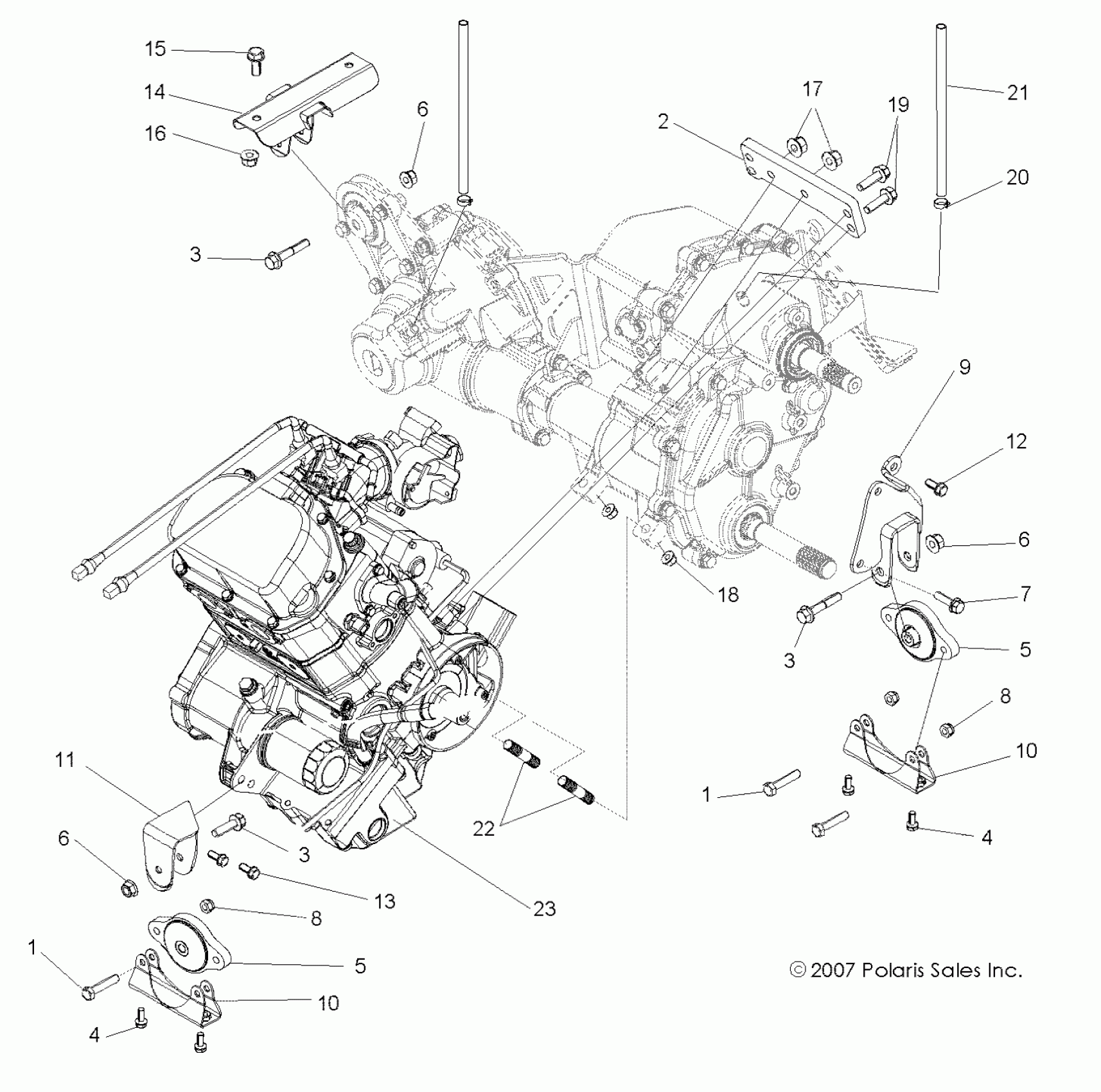

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU ENGINE, TRANSMISSION MOUNTING - Z14VE76AD/7EAL/7EAW/EAJ/EAU (49RGRENGINEMTG09RZR) Diagram

#

Description
Price

1

SCREW

7515304

$5.59

1

SCREW

7515304

$5.59

2

BRACKET, ENGINE/TRANSMISSION MOUNTING

5250848

Unavailable

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

4

SCREW

7515398

$2.39

4

SCREW

7515398

$2.39

5

MOUNT, DIFF, REAR

1332450

$63.99

5

MOUNT, DIFF, REAR

1332450

$63.99

6

Nut, Nylok

7542439

$1.49

6

Nut, Nylok

7542439

$1.49

6

Nut, Nylok

7542439

$1.49

7

BOLT

7518425

$3.99

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

MOUNT, TRANSMISSION, FRONT

1015537

Unavailable

10

BASE, ISOLATOR

1015672

$31.99

10

BASE, ISOLATOR

1015672

$31.99

11

MOUNT, ENGINE

1015673

$31.99

12

SCREW

7518181

$5.59

13

SCREW

7518364

$1.59

14

BRACKET, MOUNT, REAR, MATTE BLACK

1017237-458

Unavailable

15

SCREW, FLANGED

7518364

$1.59

16

NUT, FLANGED

7547180

$2.39

17

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

18

NUT-3/8-24 FLG LOC

7547263

$3.19

19

SCREW, FLANGED

7517696

$5.59

20

CLAMP, HOSE

7081474

$3.19

21

Line, Fuel

8450003-1525

Unavailable

22

STUD, LOWER CRANKCASE MOUNT

7518657

$23.99

23

KIT, SHORT BLOCK

2204398

Unavailable
