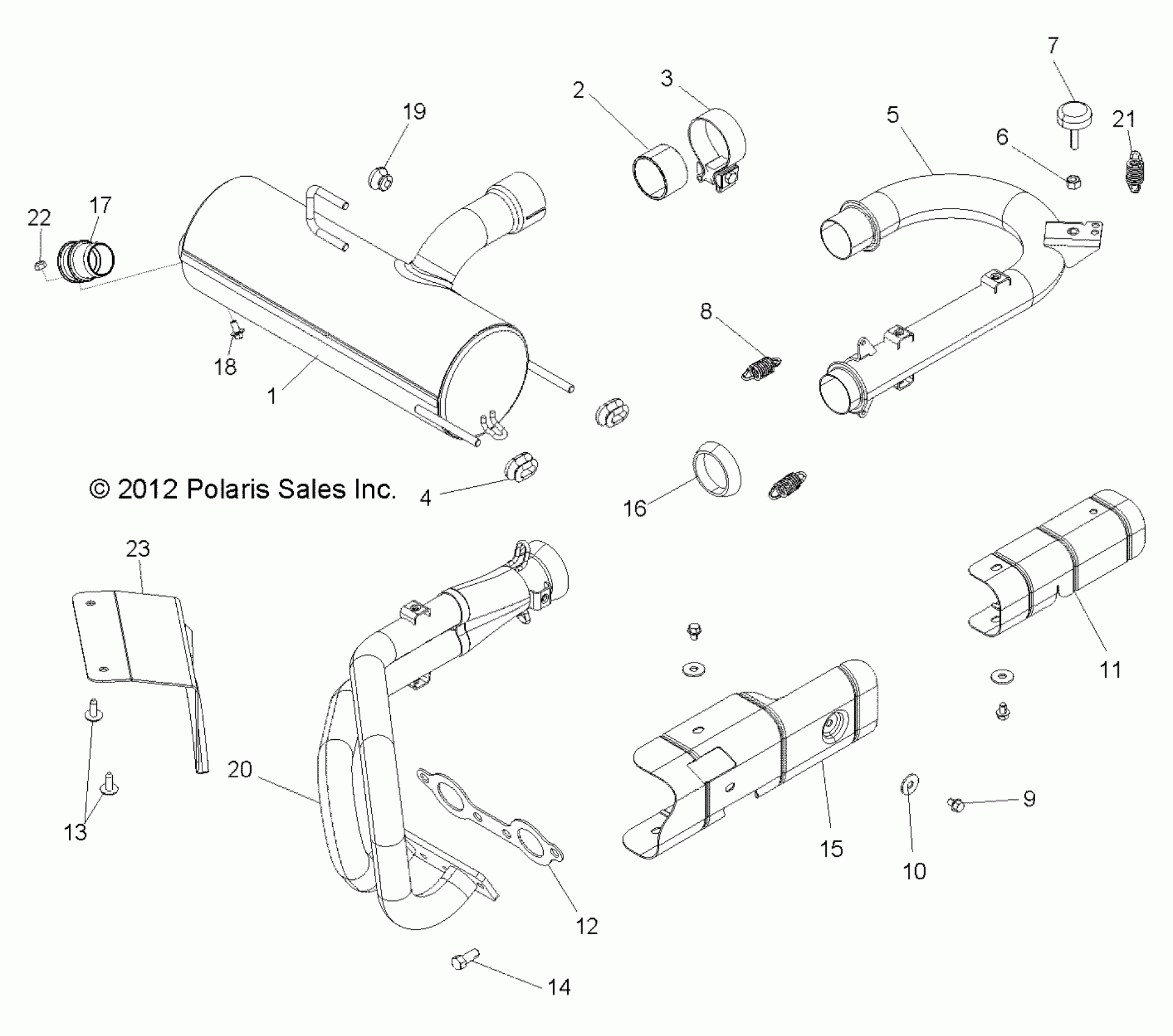

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU ENGINE, EXHAUST SYSTEM - Z14VE76AD/7EAL/7EAW/EAJ/EAU (49RGREXHAUST13RZRS) Diagram

#

Description
Price

1

SILENCER, BLACK

1262238-489

$343.19

2

SEAL, EXHAUST

5257254

$20.22

3

CLAMP, EXHAUST

7081382

$31.99

4

GROMMET, SILENCER MOUNT

5436598

$3.99

5

PIPE, EXHAUST, BLACK

1262317-489

$312.39

6

NUT

7542301

$1.59

7

MOUNT, TORQUE STOP

3021522

$27.99

8

SPRING-EXHAUST

7041789

$7.99

9

SCREW

7517704

$7.19

10

Washer

7555935

$2.39

11

PLATE, SHIELD, EXHAUST PIPE

5256215

$31.99

12

GASKET, EXHAUST

5811511

$48.56

13

SCREW

7517386

$1.49

14

SCREW

7518984

$7.99

15

PLATE, SHIELD, DUAL PIPE

5256216

$55.99

16

SEAL, EXHAUST, SOCKET

3610181

$31.99

17

WELD-SPARK ARRESTOR,QT

1262239

$43.99

18

SCREW

7517257

$9.59

19

GROMMET, SILENCER MOUNT

5414307

$4.79

20

HEADPIPE, DUAL, BLACK

1262319-489

Unavailable

21

SPRING-EXHAUST

7041687

$5.65

22

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

23

PLATE, SHIELD, UPPER

5254751

$37.61
