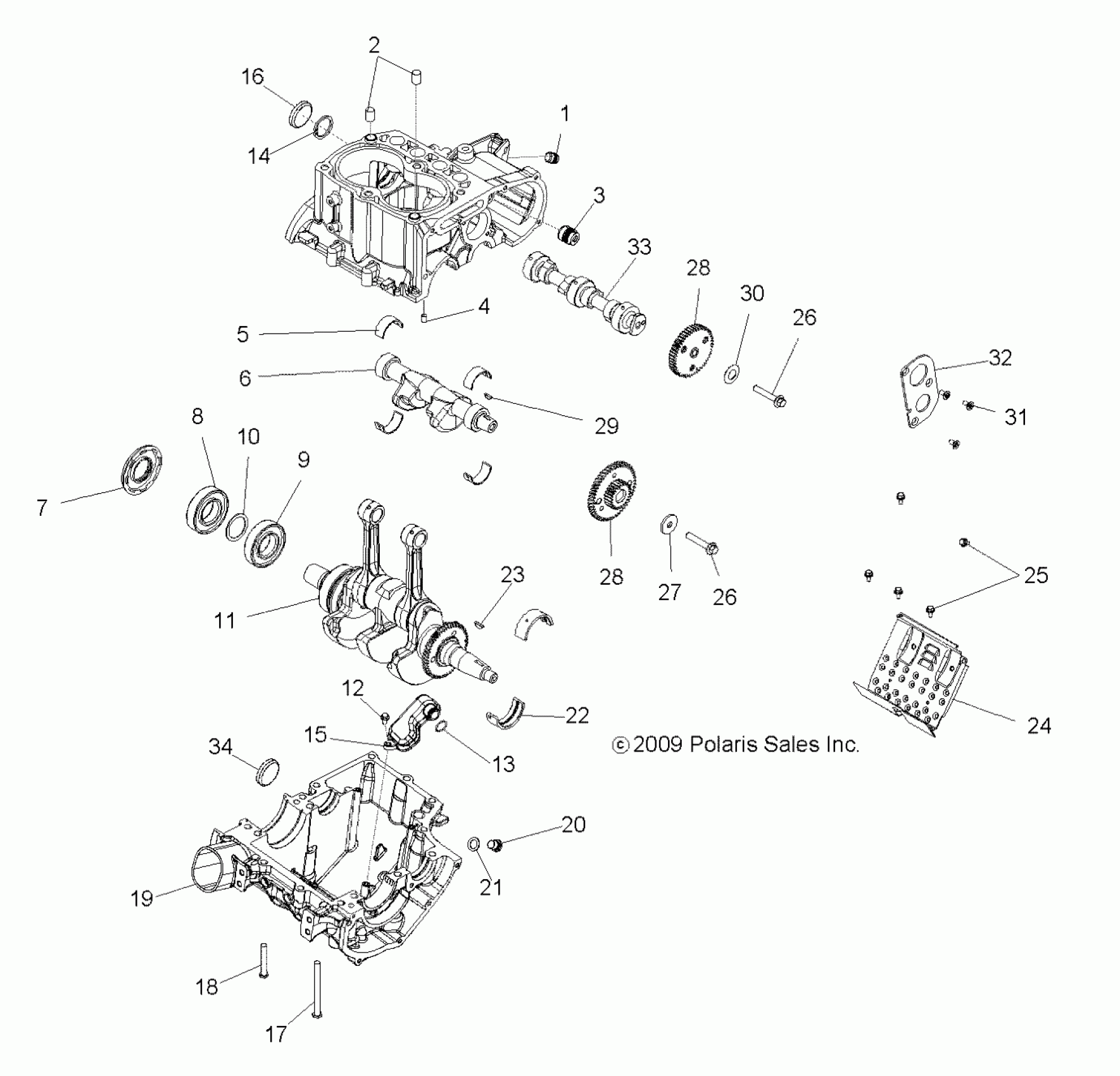

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU ENGINE, CRANKCASE and CRANKSHAFT - Z14VE76AD/7EAL/7EAW/EAJ/EAU (49RGRCRANKCASE10RZRS) Diagram

#

Description
Price

1

PLUG, EXPANSION

7051531

$6.39

2

DOWEL

7661175

$5.59

3

PLUG, EXPANSION

7052288

Unavailable

4

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

5

BEARING, BALANCE SHAFT JOURNAL

5132753

Unavailable

6

SHAFT, BALANCE

5137337

$183.99

7

SEAL

5412676

$39.99

8

BEARING, BALL

3514361

Unavailable

9

BEARING, BALL

3514318

$43.99

10

BUSHING

7556579

$19.99

11

KIT, CRANKSHAFT [INCL. 8-11,22]

2203068

Unavailable

12

BOLT

7516603

$10.39

13

O-RING

5413013

$1.99

14

RING, RETAINING

7710512

$3.99

15

ASM., OIL PICKUP [INCL. 13]

1204082

$35.99

16

PLUG, EXPANSION

3060004

$15.19

17

SCREW

7517792

$2.39

18

SCREW

7517793

$5.59

19

KIT, CRANKCASE [INCL. 1-5,12-18,20-22,24,25,34, FROM ENGINE, DIPSTICK AND OIL FILTER PAGE 5/8,11]

2204399

$982.79

20

PLUG, SOCKET

7052306

$15.37

21

WASHER, COPPER

5812232

$1.59

22

BEARING, MAIN JOURNAL

3585704

$28.56

23

KEY, WOODRUFF

7721117

$24.99

24

PLATE, BAFFLE

5253617

Unavailable

25

SCREW

7518045

$10.39

26

SCREW

7517865

$11.19

26

SCREW

7517865

$11.19

27

WASHER-RETAINING,8.5X28X3

7555982

Unavailable

28

KIT, GEAR SET

2203106

Unavailable

28

KIT, GEAR SET

2203106

Unavailable

29

KEY, WOODRUFF

7721131

$23.99

30

WASHER, SPRING

7556183

$9.59

31

SCREW

7517598

$11.33

32

PLATE, THRUST

5244286

$51.99

33

KIT, CAMSHAFT [INCL. CAM AND LIFTERS]

2203740

$429.54

34

PLUG-EXPANSION,19MM

7051530

$7.19
