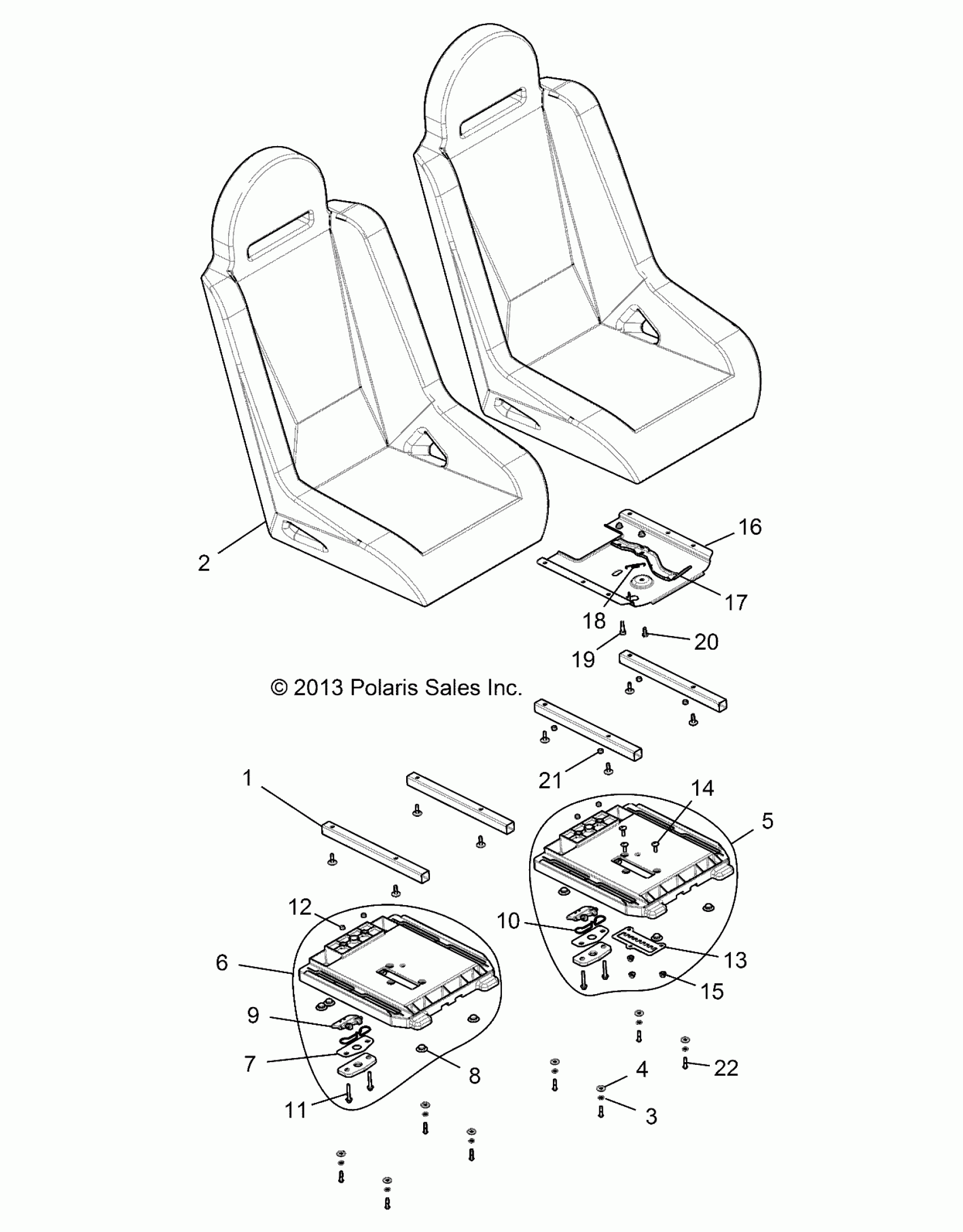

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU BODY, SEAT ASM. AND SLIDER - Z14VE7EAJ (49RGRSEAT14RZR800) Diagram

Description

Price

ASM., SEAT BASE, TUBE

2635220

$31.99

ASM., SEAT, BLACK

2685988

$775.49

WASHER, SPRING LOCK

7552801

$1.59

Washer, Flat

7555859

$1.49

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]

2685704

$195.99

ASM., BASE, SEAT [INCL. 7-12]

2634889

$123.99

PLATE-LATCH,SEAT

5258647

$6.39

GROMMET, SEAT BASE

5413441

$3.99

HANDLE-SEAT BASE LATCH

5437121

$4.84

SPRING, LATCH, SEAT

7081466

$39.99

Screw

7517610

$1.59

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

Unavailable

BOLT, CARRIAGE

7518994

$3.22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRACKET, SEAT SLIDER MOUNTING PLATE

5257974

$63.99

BRACKET, SEAT SLIDER LEVER

5257976

Unavailable

SPRING

7044099

$5.59

BOLT, SHOULDER

7518786

$2.39

BOLT, SHOULDER

7518897

$1.59

TUBE, SPACER

5337939

Unavailable

SCREW

7519296

$1.59
