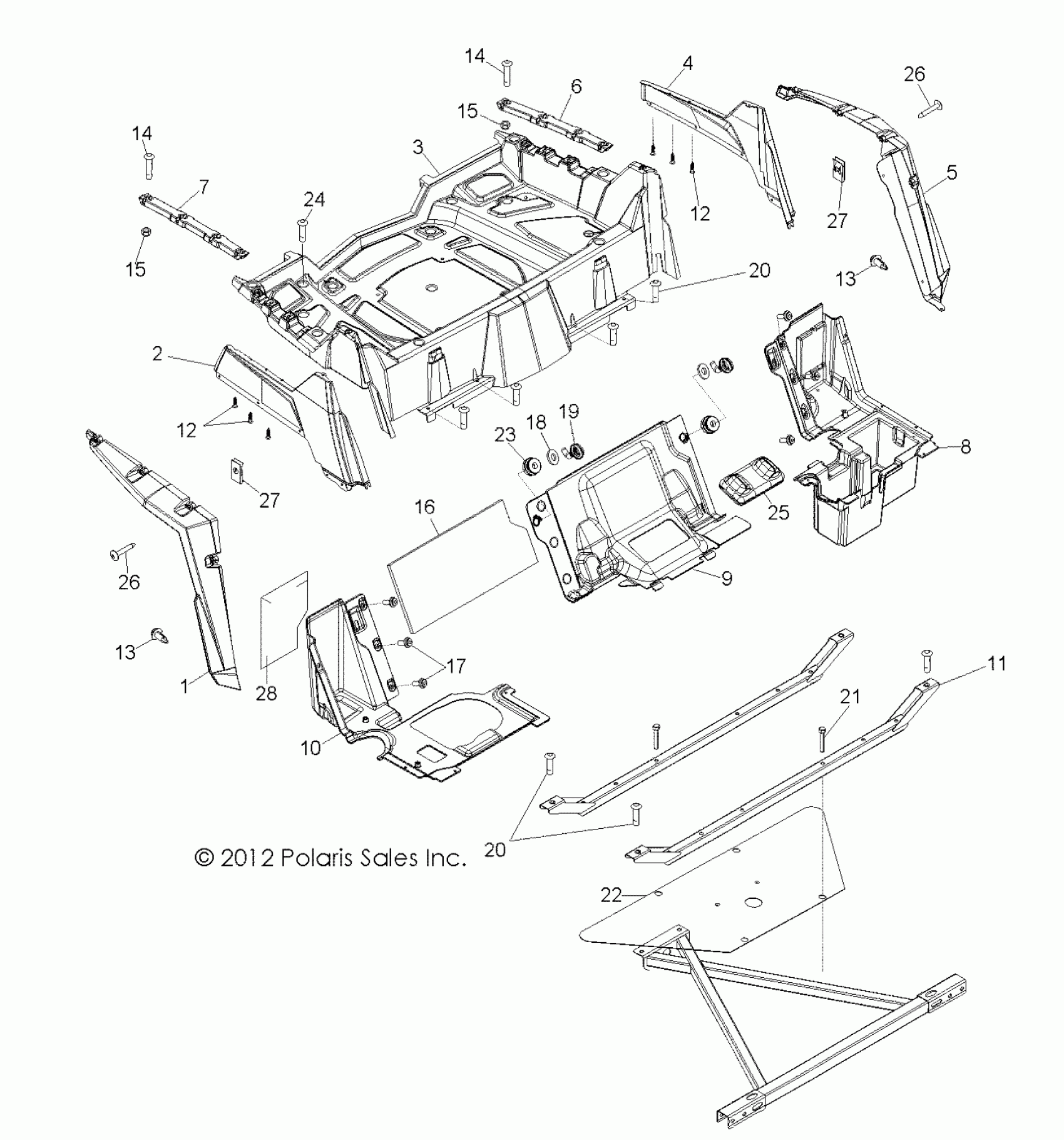

Polaris RZR S 800 - Z14VE76AD/7EAL/7EAW/7EAJ/7EAU BODY, REAR RACK and FENDERS - Z14VE76AD/7EAL/7EAW/EAJ/EAU (49RGRRACKMTG13RZRS) Diagram

#

Description
Price

1

FLAIR, FENDER, REAR, LT, RH, BLACK

5437662-070

Unavailable

2

FENDER, REAR, RH, INDY RED [AD]

5437393-293

$579.99

2

FENDER, REAR, RH, STEALTH BLACK [EAL]

5437474-464

Unavailable

2

FENDER, REAR, PAINTED, RH, VOGUE SILVER [EAU]

5437474-354

$271.41

2

FENDER, REAR, RH, WHITE LIGHTNING [EAW][EAJ]

5437474-599

Unavailable

3

ASM., RACK, REAR, BLACK [INCL. WARNING DECALS]

2634104-070

Unavailable

4

FENDER, REAR, LH, INDY RED [AD]

5437392-293

$579.99

4

FENDER, REAR, LH, STEALTH BLACK [EAL]

5437472-464

Unavailable

4

FENDER, REAR, LH, WHITE LIGHTNING [EAW][EAJ]

5437472-599

Unavailable

4

FENDER, REAR, PAINTED, LH, VOGUE SILVER [EAU]

5437472-354

Unavailable

5

FLAIR, FENDER, REAR, LH, BLACK

5437661-070

$80.94

6

BRACKET, RACK, TIE DOWN, LH, BLACK

5436849-070

$52.60

7

BRACKET, RACK, TIE DOWN, RH, BLACK

5436850-070

$52.60

8

PANEL, DIVIDER, REAR, LH, BLACK

5438336-070

$104.99

9

PANEL, DIVIDER, REAR, BLACK

5438335-070

Unavailable

10

PANEL, DIVIDER, REAR, RH, BLACK

5438957-070

$56.65

11

SUPPORT, RACK, REAR, BLACK

1015565-329

$91.27

12

SCREW

7517561

$1.59

12

SCREW

7517561

$1.59

13

Rivet

7661855

$1.19

13

Rivet

7661855

$1.19

14

SCREW

7517230

$1.19

14

SCREW

7517230

$1.19

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

16

FOAM, SOUND ATTENTION, CUT

5813658

$52.60

17

Screw

7512084

$1.19

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.56

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

21

SCREW

7518382

$5.69

22

PLATE, SHIELD, BOX

5256351

$52.60

23

GROMMET-LATCH

5413428

$3.17

24

SCREW

7517686

$1.59

25

COVER, SEAT BELT BUCKLE, REAR

5813553

$32.37

26

SCREW

7518375

$1.41

26

SCREW

7518375

$1.41

27

NUT, U-TYPE

7670145

$2.38

27

NUT, U-TYPE

7670145

$2.38

28

FOIL, RH PANEL

5813380

$4.84
