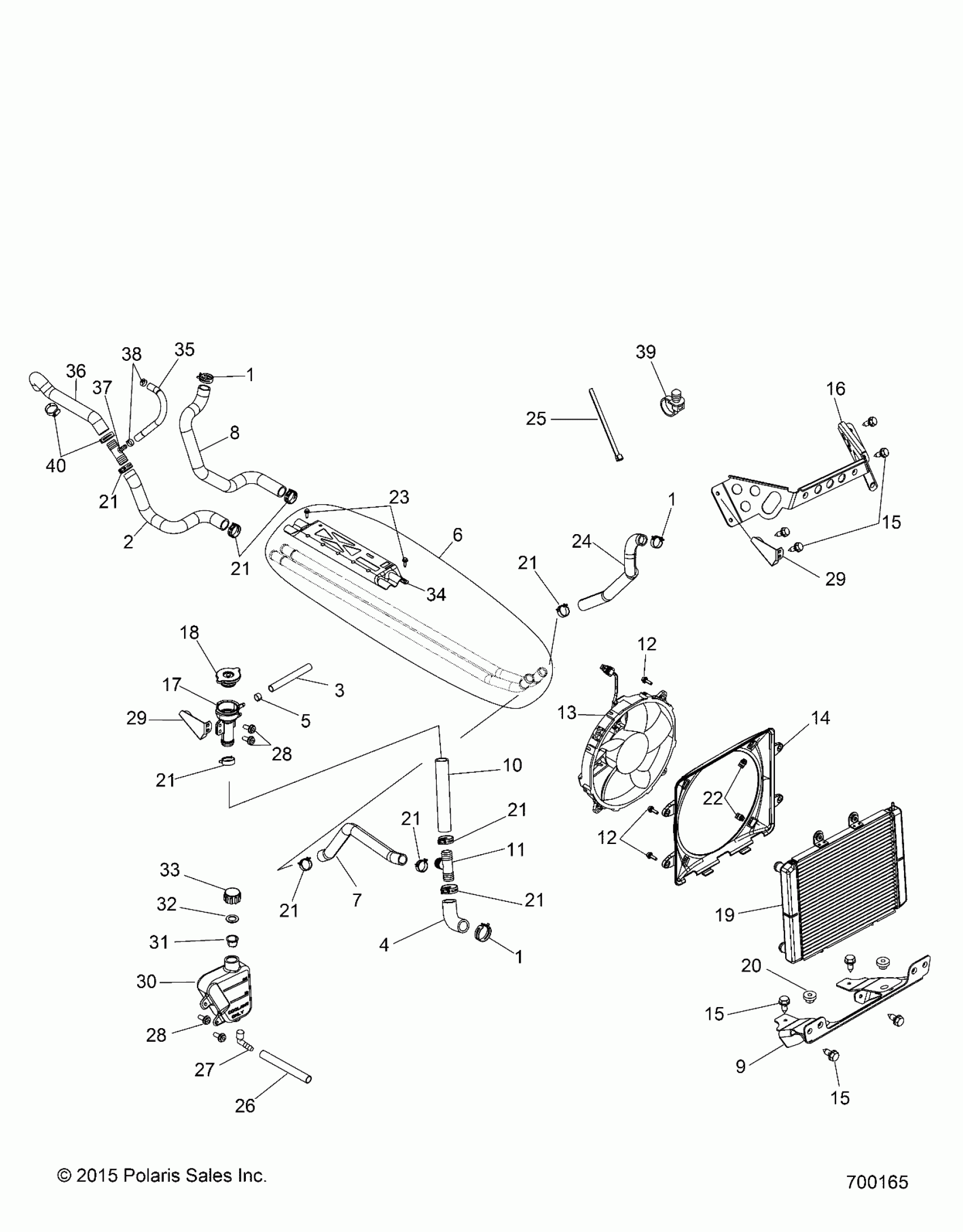

Polaris RZR S 800 EFI - R13VE76AD/AI/AW/7EAS/EAT ENGINE, COOLING SYSTEM - R13VE76AD/AI/AW/7EAS/EAT (700165) Diagram

#

Description
Price

1

CLAMP, HOSE

7081174

$7.14

1

CLAMP, HOSE

7081174

$7.14

1

CLAMP, HOSE

7081174

$7.14

2

HOSE, ENGINE INLET, REAR

5414206

Unavailable

3

HOSE

8450120-600

Unavailable

4

HOSE, RADIATOR, LOWER [ALL EXCEPT EAT]

5414202

$32.37

5

HOSE CLAMP, RED

7080003

$1.19

6

ASM., TUBE, COOLANT [INCL. 34]

1240648

$314.99

7

HOSE, LOWER, FRONT

5414204

$44.51

8

HOSE, ENGINE OUTLET, REAR

5414205

$48.56

9

BRACKET, MOUNT, RADIATOR, LOWER, BLACK

5254709-067

$68.79

10

HOSE, REMOTE FILLER NECK [ALL EXCEPT EAT]

5414203

$36.41

11

T-CONNECTOR [ALL EXCEPT EAT]

7052373

$10.32

12

SCREW

7516822

$2.38

12

SCREW

7516822

$2.38

13

KIT, FAN

2410413

$267.13

14

SHROUD, FAN

5437845

Unavailable

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

16

Bracket, Mount, Radiator, Upper, Matte Black

5254710-458

$40.46

17

FILLER, REMOTE, COOLANT, SMALL [ALL EXCEPT EAT]

5439079

$32.37

18

CAP-PRESSURE

1240300

$40.46

19

Asm., Radiator, Core

1240444

$561.57

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

22

CLIP-"U",M6.0X1.0

7547366

$5.99

23

SCREW

7519342

$1.99

24

HOSE, RADIATOR, UPPER

5414201

$44.51

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

26

Line, Fuel

8450003-1525

Unavailable

27

FITTING, 90 DEGREE

7052065

$7.14

28

Screw

7512084

$1.19

28

Screw

7512084

$1.19

29

Bracket, Filler Neck

5253450

$28.32

29

Bracket, Filler Neck

5253450

$28.32

30

TANK-SURGE

5436936

$80.94

31

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

34

Bracket, Fuel Tank Mount, Center, Black

5254161-329

$40.46

35

HOSE-BYPASS,3/8IN FORMED

5413949

Unavailable

36

HOSE, BYPASS, FORMED

5414207

$36.41

37

CONNECTOR, TEE

7052494

$9.52

38

CLAMP-HOSE,.875-SS

7080474

$8.54

39

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

40

CLAMP-HOSE, 1.750-SS [EAT]

7080560

$11.11

40

CLAMP, HOSE

7081174

$7.14
