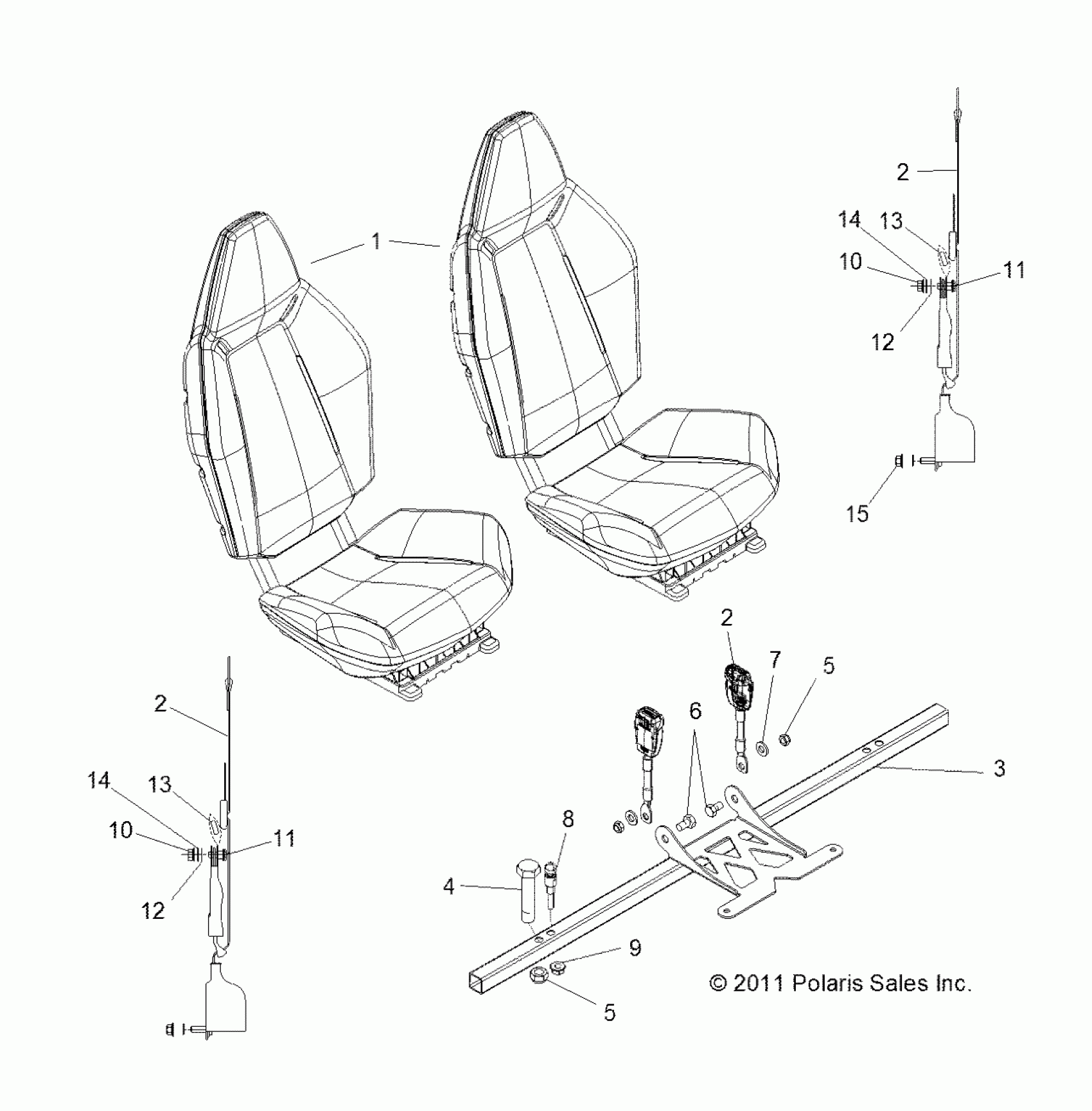

Polaris RZR S 800 EFI - R13VE76AD/AI/AW/7EAS/EAT BODY, SEAT MOUNTING and BELTS - R13VE76AD/AI/AW/7EAS/EAT (49RGRSEATMTG12RZRS) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

2

ASM., SEAT BELT, 3 POINT [INCL. 10-13]

2634887

$223.24

2

ASM., SEAT BELT, 3 POINT [INCL. 10-13]

2634887

$223.24

2

ASM., SEAT BELT, 3 POINT [INCL. 10-13]

2634887

$223.24

3

BASE, SEAT, REAR, MATTE BLACK

1017452-458

Unavailable

4

SCREW

7517442

$6.35

5

NUT, NYLON

7547066

$1.59

5

NUT, NYLON

7547066

$1.59

6

SCREW

7512520

$4.76

7

WASHER, FLAT

7556333

$3.97

8

PLUNGER-LATCH

7519252

$28.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

NUT, LOCK, BLACK

7547459

Unavailable

10

NUT, LOCK, BLACK

7547459

Unavailable

11

BOLT, SHOULDER

5137011

$5.56

11

BOLT, SHOULDER

5137011

$5.56

12

RETAINER

5253444

Unavailable

12

RETAINER

5253444

Unavailable

13

BOLT, CAP

5137010

Unavailable

13

BOLT, CAP

5137010

Unavailable

14

WASHER-SEATBELT,RUBBER

5813829

$1.19

14

WASHER-SEATBELT,RUBBER

5813829

$1.19

15

NUT

7547066

$1.59
