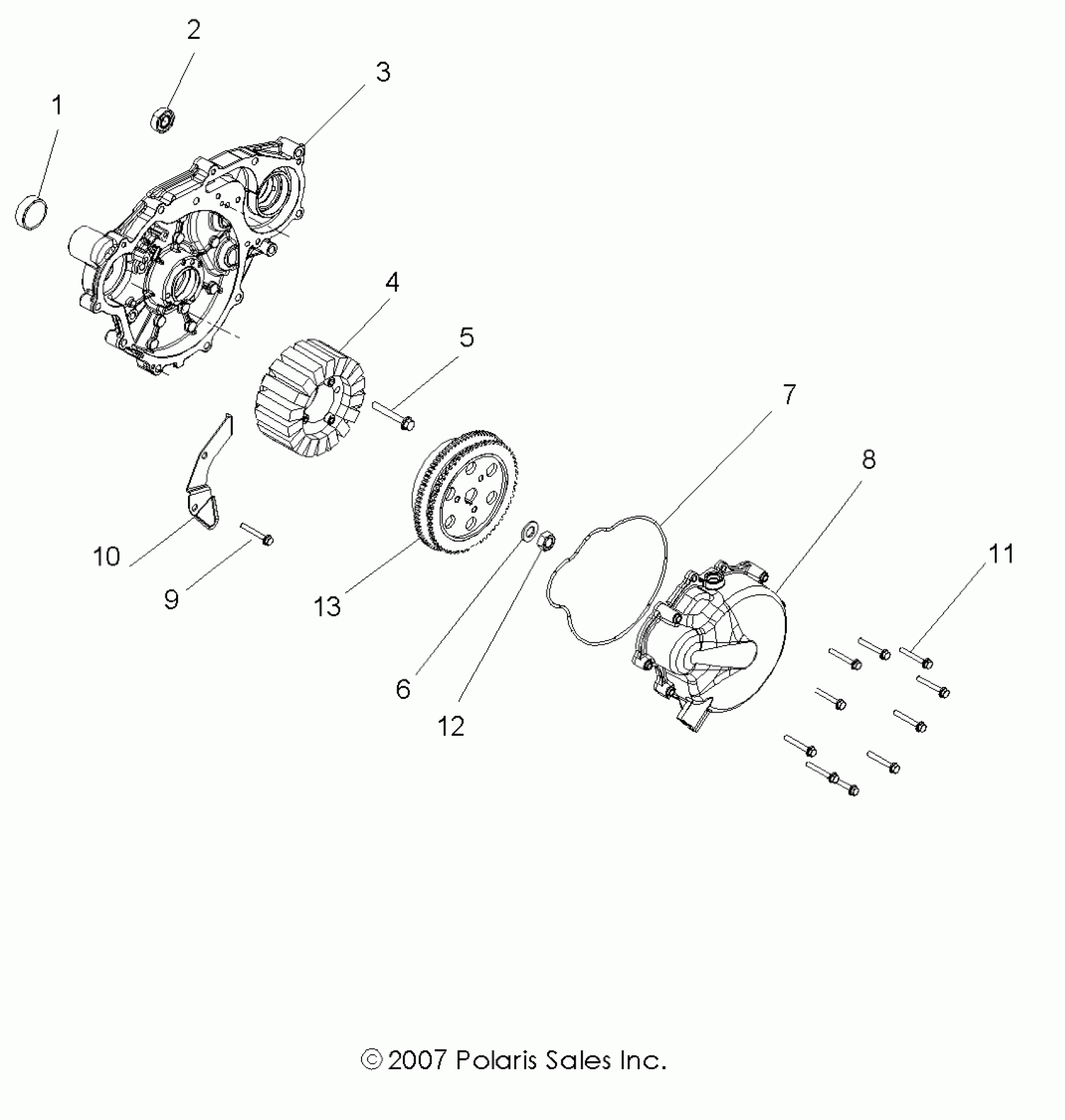

Polaris RZR S 800 EFI - R12VE76AB/AD/AE/AJ/AO ENGINE, STATOR and FLYWHEEL - R12VE76AB/AD/AE/AJ/AO (49ATVMAGNETO08VISTA) Diagram

#

Description
Price

1

SEAL, FLANGED

5412881

$32.37

2

SEAL, OIL

5412455

$24.27

3

PIN, DOWEL

7661946

$4.76

3

Asm., Engine Cover, Magneto

1203626

$261.41

3

BUSHING

----

Unavailable

4

Stator

4011982

$1,196.99

5

SCREW

7517848

$5.56

6

WASHER

7555907

$5.56

7

SEAL, STATOR COVER

5413972

$3.97

8

Asm., Cover, Stator {Incl. Bushing]

1204144

$213.74

8

BUSHING

3514553

Unavailable

9

Screw

7517950

$5.56

10

Bracket, Stator, Wire Holddown

5245364

$49.99

11

SCR-HXFL-M8X1.25X45 10.9ACU

7519209

$3.97

12

NUT

7547213

$4.76

13

Flywheel

4011981

$1,196.99
