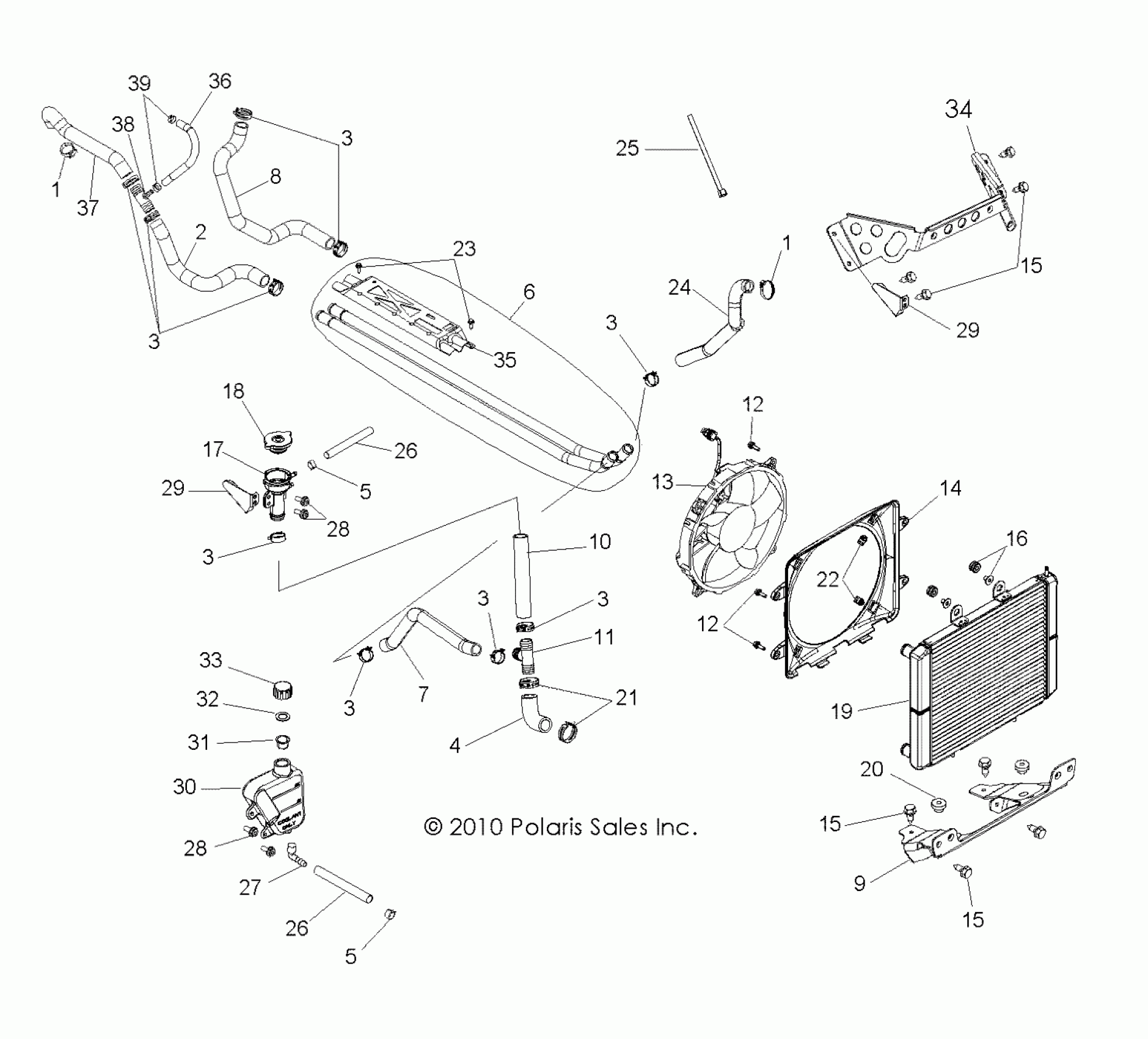

Polaris RZR "S" 800 EFI - R11VE76AC/AD/AT/AW/AZ ENGINE, COOLING SYSTEM - R11VE76AC/AD/AT/AW/AZ (49RGRCOOL11RZRS) Diagram

#

Description
Price

1

CLAMP, HOSE

7081174

$7.19

1

CLAMP, HOSE

7081174

$7.19

2

Hose, Engine Inlet, Rear

5414006

Unavailable

3

Clamp, Springband, Brown

7080843

$3.99

3

Clamp, Springband, Brown

7080843

$3.99

3

Clamp, Springband, Brown

7080843

$3.99

3

Clamp, Springband, Brown

7080843

$3.99

3

Clamp, Springband, Brown

7080843

$3.99

3

Clamp, Springband, Brown

7080843

$3.99

3

Clamp, Springband, Brown

7080843

$3.99

4

Hose

5410958

Unavailable

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

Asm., Tube, Coolant [Incl. 23,35]

1240551

$266.25

7

Hose, Radiator, Lower

5413372

Unavailable

8

Hose, Engine Outlet, Rear

5414005

Unavailable

9

BRACKET, MOUNT, RADIATOR, LOWER, BLACK

5254709-067

$67.99

10

Hose, Radiator

5413371

Unavailable

11

T-CONNECTOR

7052373

$10.39

12

SCREW

7516822

$2.39

12

SCREW

7516822

$2.39

13

ASM., FAN

2410413

$251.99

14

SHROUD, FAN

5437845

$47.99

15

SCREW

7517386

$1.49

15

SCREW

7517386

$1.49

15

SCREW

7517386

$1.49

16

ASM., GROMMET AND INSERT

5411975

$3.19

17

Filler, Remote

5438110

Unavailable

18

Cap, Pressure

1240508

$48.56

19

Asm., Radiator, Core

1240444

Unavailable

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

22

CLIP-"U",M6.0X1.0

7547366

$5.99

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

Hose, Radiator, Upper

5413067

Unavailable

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

26

Line, Fuel

8450003-1525

Unavailable

26

Line, Fuel

8450003-1525

Unavailable

27

FITTING, 90 DEGREE

7052065

$7.19

28

Screw

7512084

$1.49

28

Screw

7512084

$1.49

29

Bracket, Filler Neck

5253450

$27.99

29

Bracket, Filler Neck

5253450

$27.99

30

TANK-SURGE

5436936

$75.99

31

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

34

Bracket, Mount, Radiator, Upper, Matte Black

5254710-458

$39.99

35

Bracket, Fuel Tank Mount, Center, Black

5254161-329

$39.99

36

HOSE-BYPASS,3/8IN FORMED

5413949

Unavailable

37

Hose, Bypass, Formed

5413950

Unavailable

38

CONNECTOR, TEE

7052494

$9.59

39

Clamp, Hose, Spring

7080699

$1.59
