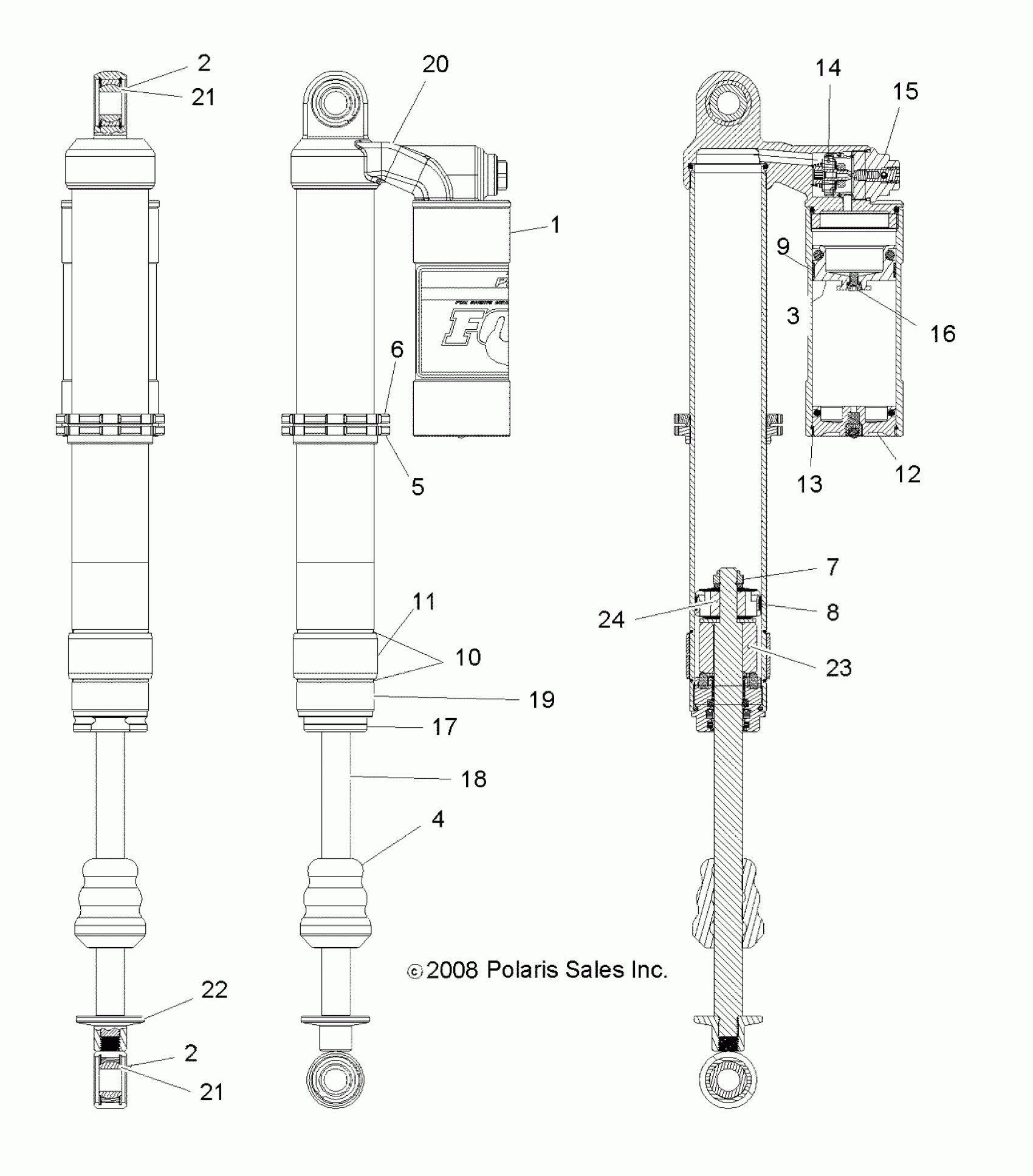

Polaris RZR "S" 800 EFI - R10VH76AB/AO/AQ/AW SUSPENSION, REAR SHOCK - R10VH76AB/AO/AQ/AW (49RGRSHOCKRR7043419) Diagram

#

Description
Price

-

Kit, Rebuild

1500742

$84.43

-

Shock, Rear, LT

7043419

Unavailable

1

Reservoir

1500614

$164.79

2

BEARING, SPHERICAL

1500524

$43.99

2

BEARING, SPHERICAL

1500524

$43.99

3

Piston, Floating

1500515

$37.54

4

Bumper

1500628

$35.99

5

Ring, Preload

1500586

$40.46

6

Ring, Preload

1500587

$48.56

7

Nut, Lock

1500016

$12.79

8

Bearing, External

1500002

$31.99

9

BEARING, STEP CUT

1500230

$31.99

10

Ring, Wire

1500607

$3.99

11

Guide, Spring

1500585

Unavailable

12

ASM., END CAP

1500765

$109.99

13

RING, RETAINING

1500236

$9.59

14

Piston, CD Concentric Adjuster

1500616

$21.79

15

Cartridge, CD Single Adjuster

1500617

Unavailable

16

Screw w/o Ring

1500161

Unavailable

17

Asm., Bearing

1500810

$144.99

18

Shaft

1500821

Unavailable

19

Body

1500823

$185.99

20

Asm., Body Cap

1500824

$226.99

21

RING, RETAINING

1500828

$8.08

21

RING, RETAINING

1500828

$8.08

22

Eyelet

1500825

Unavailable

23

Spacer, Shaft

1500826

$40.46

24

Piston

1500827

Unavailable
