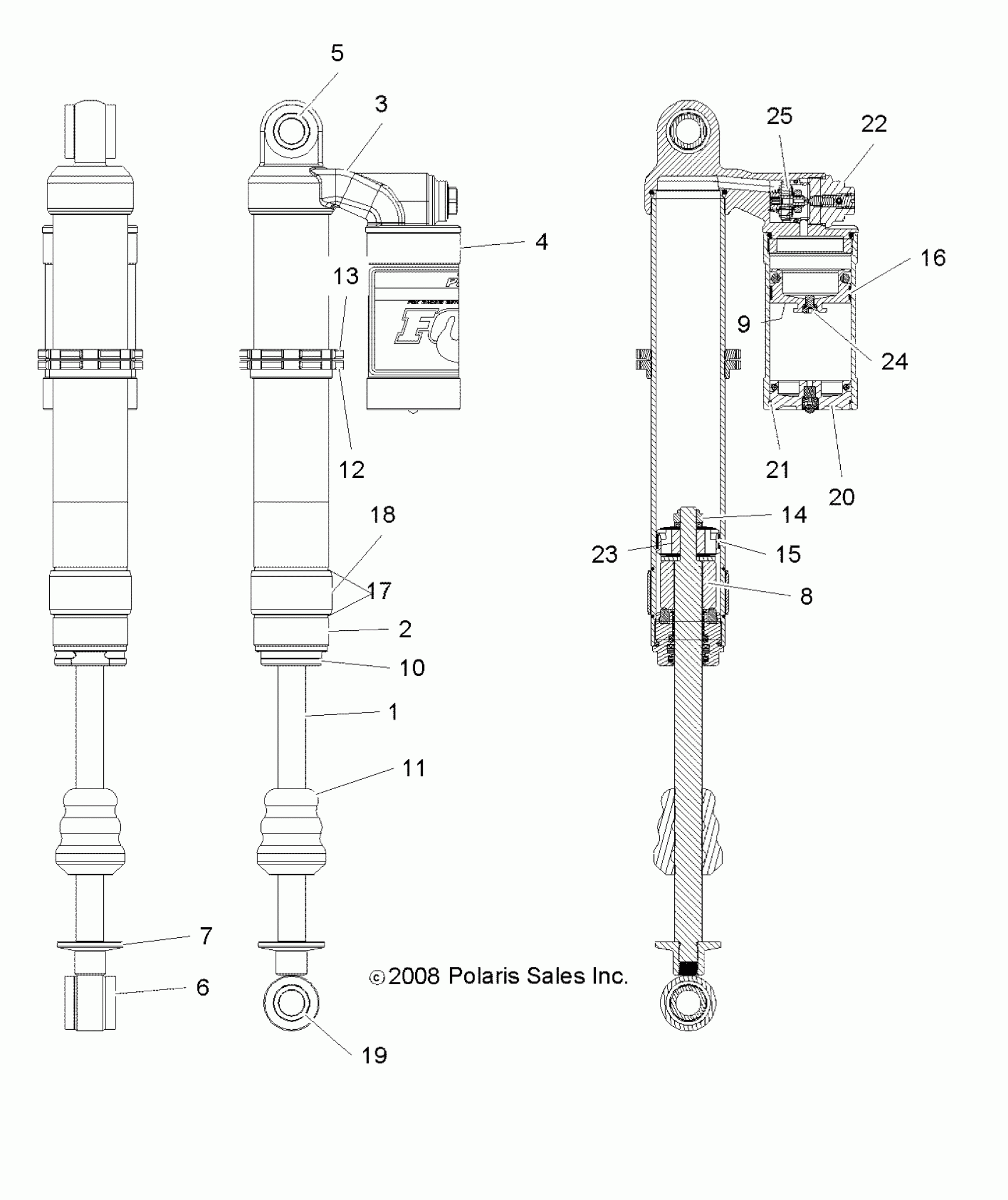

Polaris RZR "S" 800 EFI - R10VH76AB/AO/AQ/AW SUSPENSION, FRONT SHOCK - R10VH76AB/AO/AQ/AW (49RGRSHOCKFRT7043422) Diagram

#

Description
Price

-

Kit, Rebuild

1500742

$84.43

-

Shock, Front, LT

7043422

Unavailable

1

Shaft

1500821

Unavailable

2

Body

1500822

$195.99

3

Asm., Body Cap

1500756

$193.63

4

Reservoir

1500614

$164.79

5

Sleeve

1500747

$32.37

6

BUSHING

1500103

$8.08

7

ASM., EYELET

1500013

$76.89

8

Spacer, Shaft

1500826

$40.46

9

Piston, Floating

1500515

$37.54

10

Asm., Bearing

1500810

$144.99

11

Bumper

1500628

$35.99

12

Ring, Preload

1500586

$40.46

13

Ring, Preload

1500587

$48.56

14

Nut, Lock

1500016

$12.79

15

Bearing, External

1500002

$31.99

16

BEARING, STEP CUT

1500230

$31.99

17

Ring, Wire

1500607

$3.99

18

Guide, Spring

1500585

Unavailable

19

SLEEVE

1500497

$32.37

20

ASM., END CAP

1500765

$109.99

21

RING, RETAINING

1500236

$9.59

22

Cartridge, CD Single Adjuster

1500617

Unavailable

23

Piston

1500624

$106.65

24

Screw w/o Ring

1500161

Unavailable

25

Piston, CD Concentric Adjuster

1500627

Unavailable
