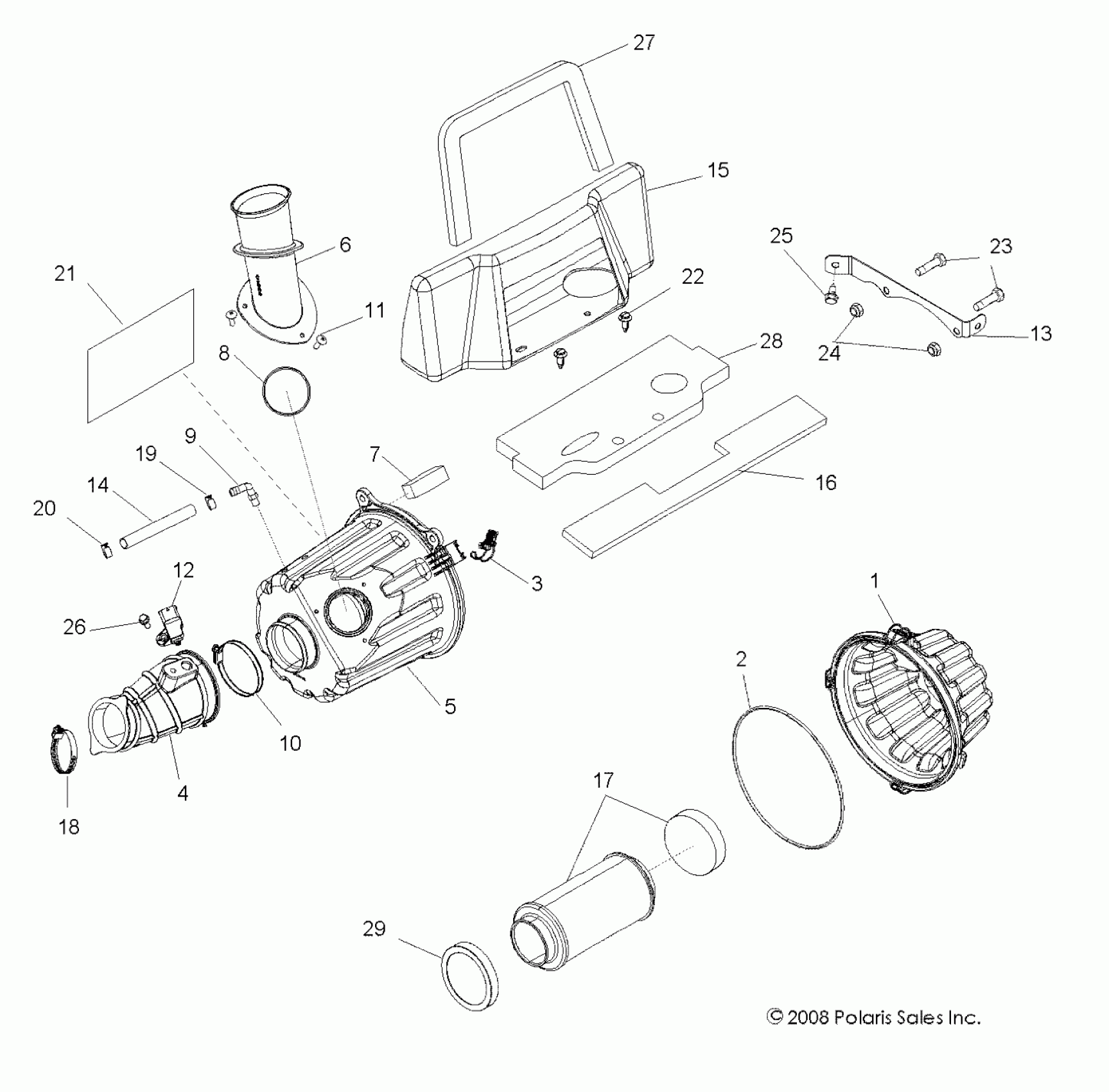

Polaris RZR "S" 800 EFI - R10VH76AB/AO/AQ/AW ENGINE, AIR INTAKE SYSTEM - R10VH76AB/AO/AQ/AW (49RGRAIRBOX09RZR) Diagram

#

Description
Price

1

ASM., AIR INTAKE, LID [INCL. 2,3]

1240432

$51.99

2

Seal, Airbox

5813078

$11.99

3

Clip, Cover

7710621

$10.03

4

Boot, Throttle Body

5413581

$35.99

5

Can, Airbox

5436733

$131.99

6

DUCT, INTAKE, ENGINE

5437674

$39.99

7

Filter, Crankcase

5812910

$4.79

8

Seal, Duct, Intake

5813099

$7.99

9

Fitting, 90 Degree

7052164

$7.19

10

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

11

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

12

Sensor

2410422

Unavailable

13

Bracket, Mount

5250302

Unavailable

14

Hose, Breather

5412615

Unavailable

15

Box, Intake Black

5437675-070

$51.99

16

SEAL, INTAKE

5813302

$10.55

17

Asm., Filter, Intake [Incl. Filter and Foam Seal,29]

1240482

$35.99

18

Clamp, Narrow Band

7080511

$4.79

19

Clamp, Hose, Spring, .69 Inch

7080699

$1.59

20

Clamp, Hose, Spring, .75 Inch

7080694

$6.53

21

Foil

5813106

$12.31

22

Rivet

7661855

$1.49

23

Bolt

7512310

$2.39

24

NUT-5/16-18 NYLOK-Y

7542324

$1.49

25

Screw

7512399

$5.59

26

Screw

7517658

$5.59

27

Foam, Seal, Front

5813441

Unavailable

28

Foam, Seal, Primary

5813440

Unavailable

29

RING, FILTER

5437936

$7.99
