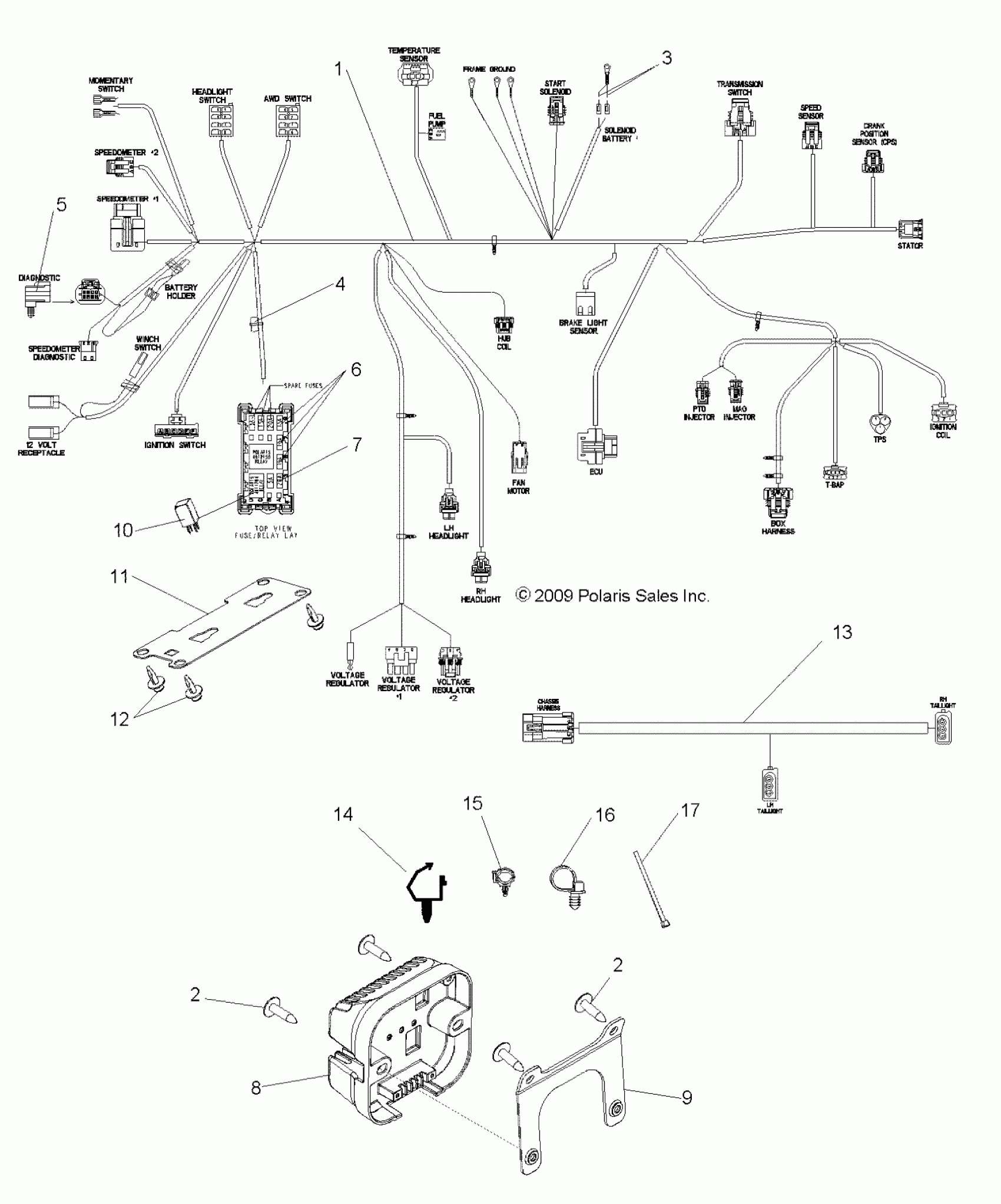

Polaris RZR "S" 800 EFI - R10VH76AB/AO/AQ/AW ELECTRICAL, WIRE HARNESS - R10VH76AB/AO/AQ/AW (49RGRHARNESS10RZRS) Diagram

#

Description
Price

1

KIT, HARNESS, ENGINE TEMP

2878496

$79.99

1

KIT, HARNESS, CPS

2878497

$144.99

1

KIT, HARNESS, T-BAP

2875542

$137.74

1

Kit, Harness, TPS

2203801

$140.38

1

Harness, Chassis [Incl. 3-7,10 All Kits, Decal]

2411408

Unavailable

1

Decal, Fuse/Relay Block

7176219

Unavailable

2

Screw

7517916

$6.35

2

Screw

7517916

$6.35

3

KIT, FUSIBLE LINK, 1 MM

2202670

$44.99

4

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$76.89

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

6

FUSE-15AMP,MINI BLADE

4010859

$8.08

7

FUSE-PARK,20 AMP

2434017

$8.08

8

Regulator

4012748

$251.74

9

Bracket, Regulator Mount

5252587

$49.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

11

PLATE, FUSE MOUNT

5253675

$8.08

12

Rivet

7661855

$1.19

13

HARNESS, BOX

2411384

$84.99

14

CLIP, ROUTING

7670109

$2.38

15

Clip, Rosebud

4020149

$6.35

16

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41
