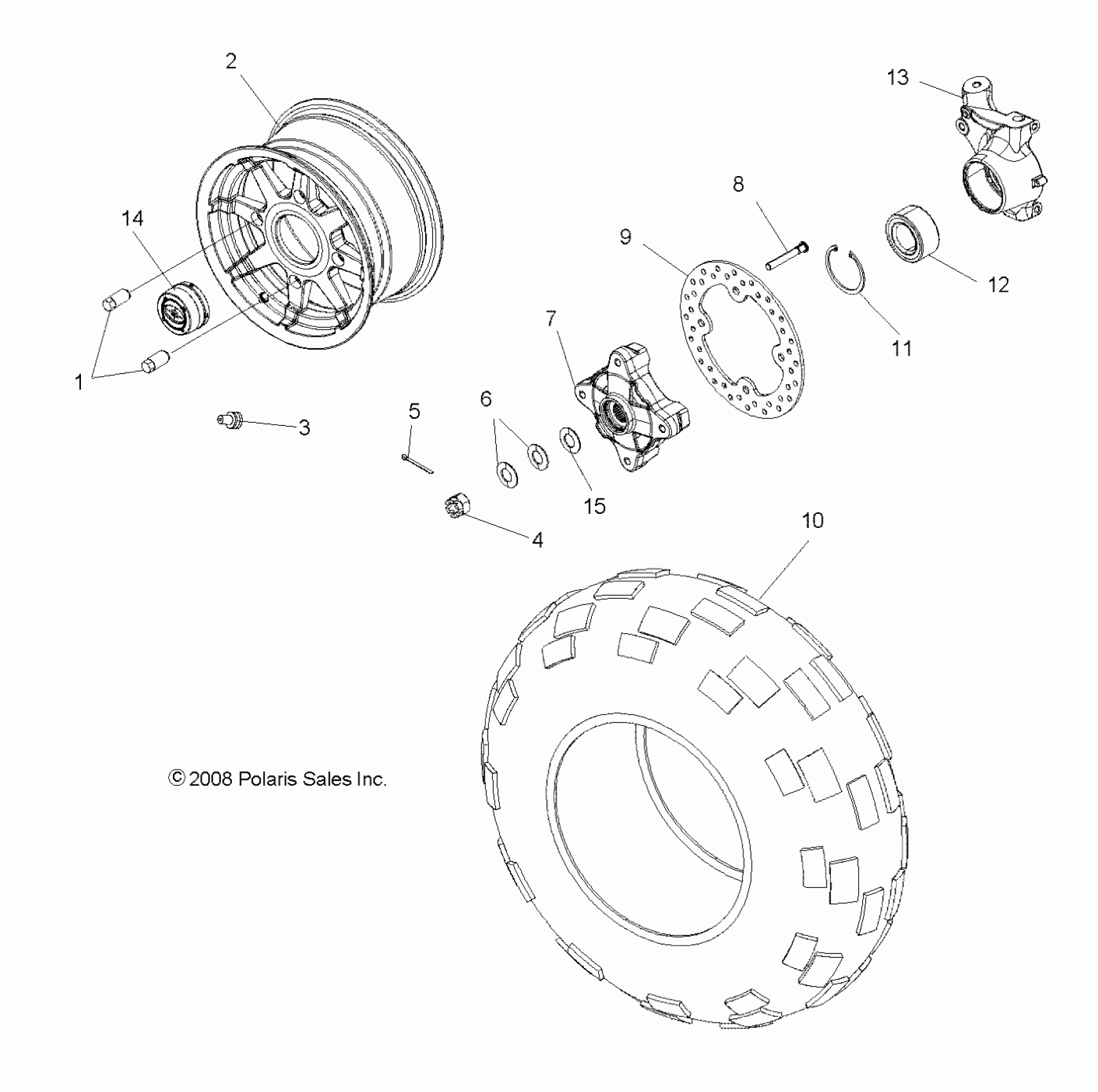

Polaris RZR "S" 800 EFI - R09VH76AX WHEELS, FRONT - R09VH76AX (49RGRWHEELFRT09RZRS) Diagram

Description

Price

NUT, WHEEL

7547309

$3.59

Rim, Front, Cast Alum.

1521106

Unavailable

VALVE-RIM

1525017

$5.59

NUT, CASTLE

7547337

$1.99

PIN, COTTER

7661404

$4.79

WASHER, CONE

7555796

$7.99

Kit, Hub w/Bearing, Service [Incl. 12]

2204717

Unavailable

STUD

7518654

$2.39

DISC, BRAKE, FRONT

5250068

$67.99

Tire, Front, 26x9-12

5413644

Unavailable

RING, RETAINING

7710440

$10.39

Bearing, Ball, Sealed [Only for use with Updated Hub Kit 2204717]

3514699

$39.99

CARRIER, BEARING, LH

5135442

$115.99

CARRIER, BEARING, RH

5135443

$111.99

CAP-RIM

1521128

$20.39

Washer

7555939

Unavailable
