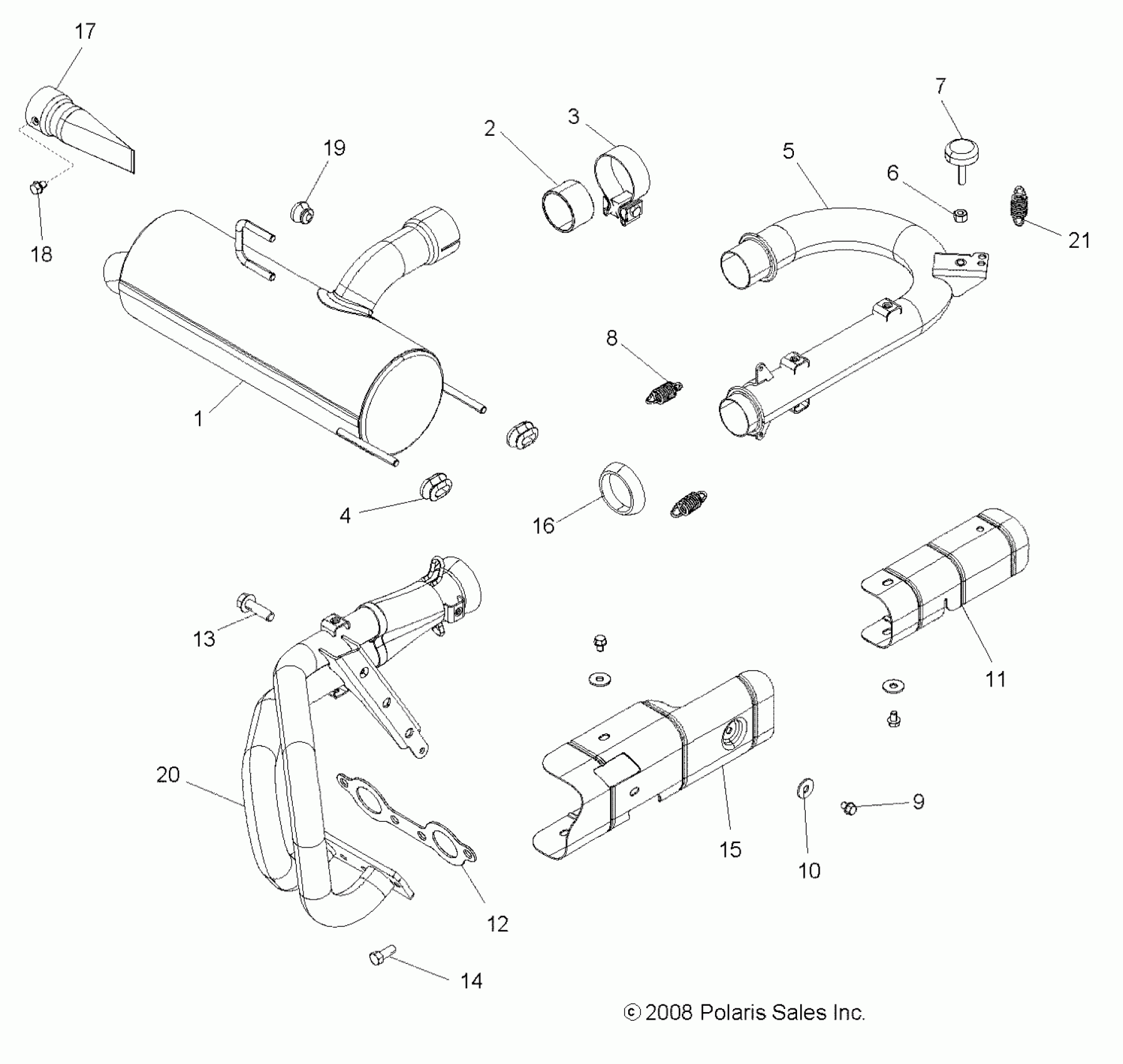

Polaris RZR "S" 800 EFI - R09VH76AX ENGINE, EXHAUST SYSTEM - R09VH76AX (49RGREXHAUST09RZRS) Diagram

#

Description
Price

1

Silencer, Black

1262011-489

$464.99

2

SEAL, EXHAUST

5250091

Unavailable

3

CLAMP, EXHAUST

7081382

$31.99

4

GROMMET, SILENCER MOUNT

5436598

$3.99

5

Pipe, Exhaust, Black

1261936-489

$189.99

6

NUT

7542301

$1.59

7

MOUNT, TORQUE STOP

3021522

$27.99

8

SPRING-EXHAUST

7041789

$7.99

9

Screw

7515197

$1.49

10

Washer

7555935

$2.39

11

Plate, Shield, Exhaust Pipe

5252204

Unavailable

12

GASKET, EXHAUST

5811511

$48.56

13

SCREW

7516734

$3.19

14

SCREW

7518984

$7.99

15

Plate, Shield, Dual Pipe

5252612

$64.99

16

Seal, Exhaust, Socket

3610047

$36.41

17

Arrestor, Spark

1261957

$64.99

18

Screw

7517278

$5.59

19

Grommet, Silencer Mount

5413377

Unavailable

20

Headpipe, Dual, Black

1261937-489

Unavailable

21

SPRING-EXHAUST

7041687

$5.65
