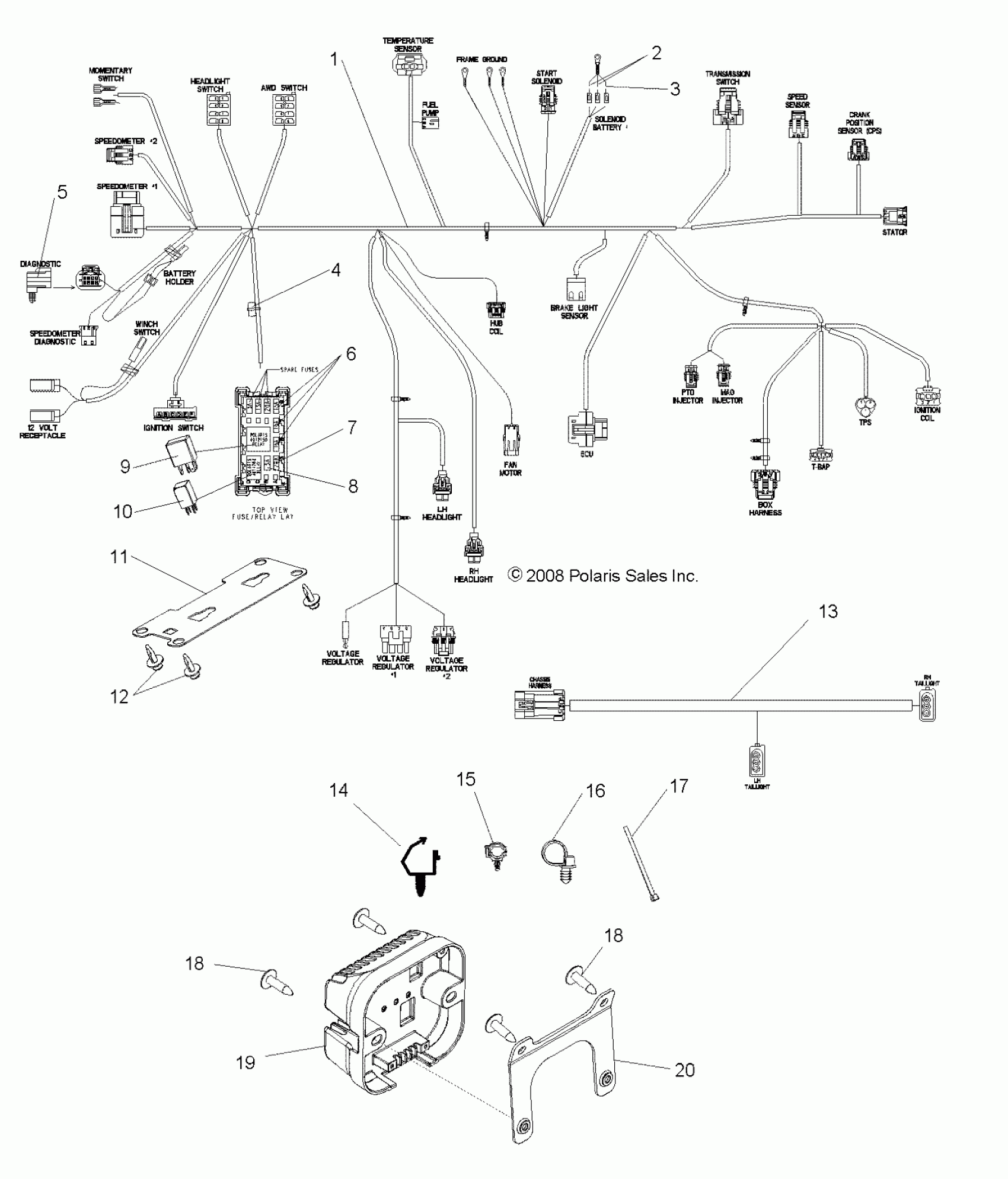

Polaris RZR "S" 800 EFI - R09VH76AX ELECTRICAL, WIRE HARNESS - R09VH76AX (49RGRHARNESS09RZR) Diagram

#

Description
Price

1

KIT, HARNESS, CPS

2878497

$111.99

1

KIT, HARNESS, T-BAP

2875542

Unavailable

1

Kit, Harness, TPS

2203801

$111.99

1

Kit, Harness, Engine Temp

2875543

$107.99

1

Decal, Fuse/Relay Block

7174705

Unavailable

1

Harness, Chassis [Incl. 2-10, All Kits, Decal]

2411167

$1,089.99

2

Kit, Fusible Link, .8 MM

2202607

$39.99

3

KIT, FUSIBLE LINK, 1 MM

2202670

$35.99

4

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

FUSE-15AMP,MINI BLADE

4010859

$7.19

7

FUSE-PARK,20 AMP

2434017

Unavailable

8

FUSE-5A,MINI BLADE

4011652

Unavailable

9

Relay, Sealed, 50 AMP

4012150

$34.74

10

Relay, Sealed

4011284

$31.99

11

Plate, Fuse Mount [Built 4/03/09 and After]

5253675

$7.19

11

Plate, Fuse Mount [Built 4/02/09 and Before]

5251956

$19.83

12

Rivet

7661855

$1.49

13

Harness, Box

2411234

Unavailable

14

CLIP, ROUTING

7670109

$2.39

15

Clip, Rosebud

4020149

$6.39

16

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

Screw

7517916

$6.39

18

Screw

7517916

$6.39

19

Regulator

4012384

$271.99

20

Bracket, Regulator Mount

5252587

$49.99
