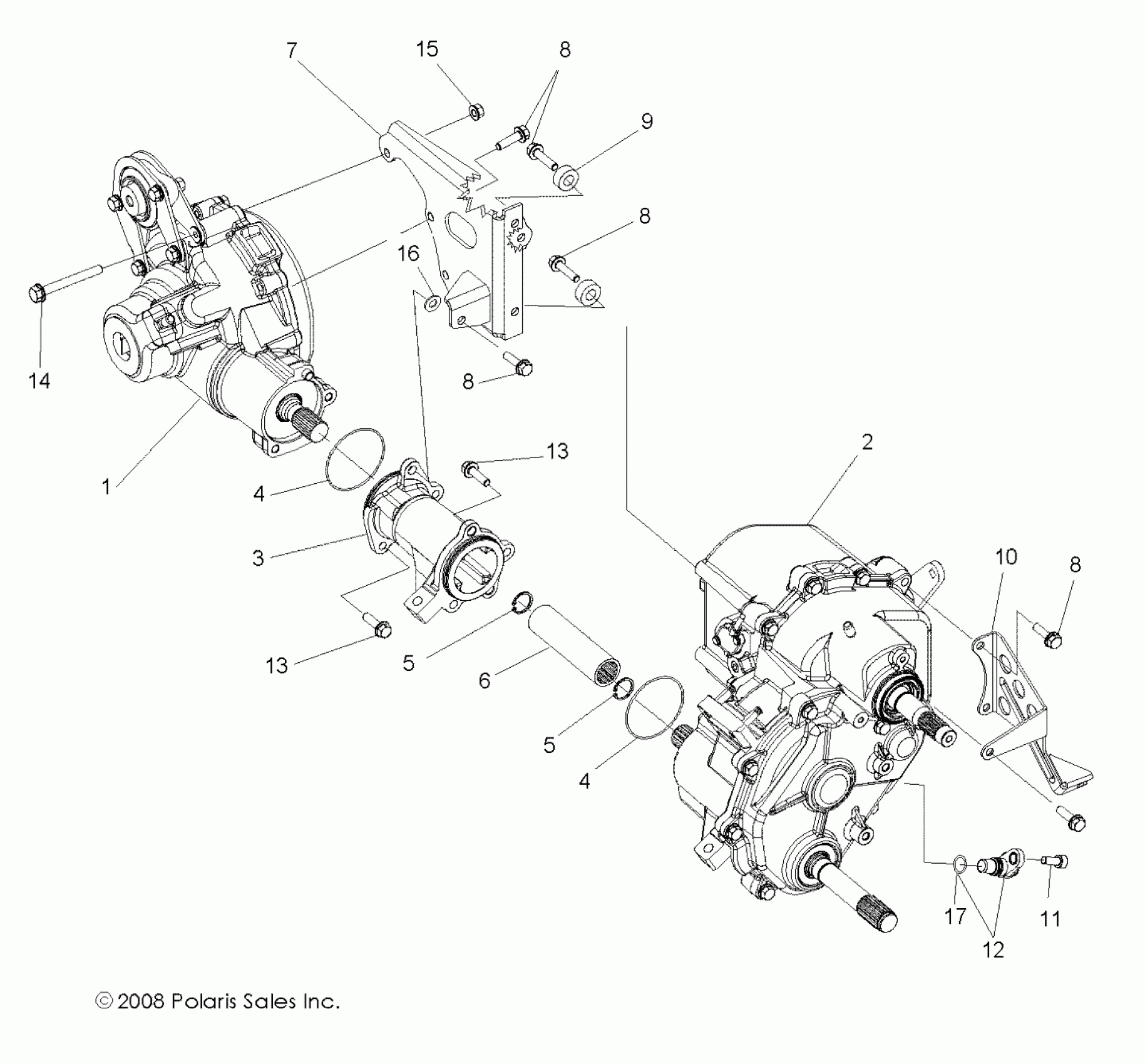

Polaris RZR "S" 800 EFI - R09VH76AX DRIVE TRAIN, GEARCASE, CARRIER MOUNTING - R09VH76AX (49RGRTRANSMTG09RZRS) Diagram

#

Description
Price

1

Asm., Carrier, Axle, Rear

3234856

Unavailable

2

Asm., Transmission, Sub

3234888

Unavailable

3

TUBE, CONNECTOR

3234858

Unavailable

4

O-RING

3234516

$7.27

4

O-RING

3234516

$7.27

5

Ring, Retaining

3234515

$4.76

5

Ring, Retaining

3234515

$4.76

6

Coupling, Splined

3234514

$182.13

7

Bracket, Stabilizer

3234859

$107.79

8

SCREW

3234618

$11.39

8

SCREW

3234618

$11.39

8

SCREW

3234618

$11.39

8

SCREW

3234618

$11.39

9

SPACER

3234572

$6.64

10

Mount, Shift Cable, Rear

1015951

Unavailable

11

SCREW, SOCKET HEAD

3234509

$7.14

12

ASM., SENSOR, GROUND SPEED [INCL. 17]

3234508

$109.27

13

SCREW, FLANGE HEAD

7518172

$7.14

13

SCREW, FLANGE HEAD

7518172

$7.14

14

SCREW

3234501

$7.14

15

NUT, FLANGE

3234500

$4.76

16

KIT, SHIM

2203725

Unavailable

17

O-RING

3234302

$7.27
