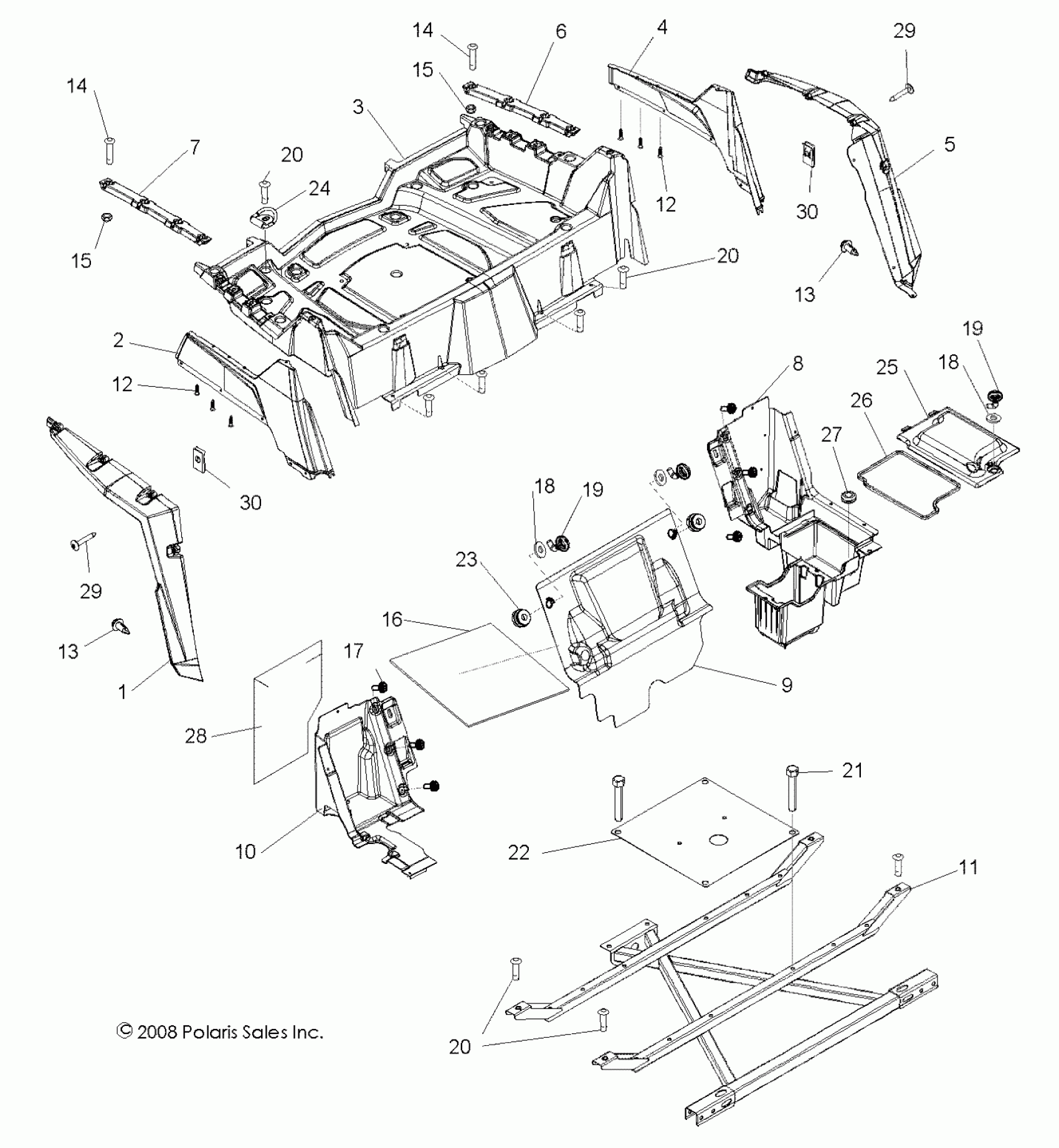

Polaris RZR "S" 800 EFI - R09VH76AX BODY, REAR RACK and FENDERS - R09VH76AX (49RGRRACKMTG09RZRS) Diagram

#

Description
Price

1

FLAIR, FENDER, REAR, LT, RH, BLACK

5437662-070

$83.99

2

Fender, Rear, RH, Turbo Silver

5437474-402

$804.99

3

Asm., Rack, Rear, Black [Incl. Warning Decals]

2633389-070

Unavailable

4

Fender, Rear, LT, LH, Turbo Silver

5437472-402

Unavailable

5

FLAIR, FENDER, REAR, LH, BLACK

5437661-070

$79.99

6

BRACKET, RACK, TIE DOWN, LH, BLACK

5436849-070

$51.99

7

BRACKET, RACK, TIE DOWN, RH, BLACK

5436850-070

$51.99

8

Panel, Divider, Rear, LH, Black

5437395-070

$137.60

9

Panel, Divider, Rear, Main, Black

5437394-070

$193.63

10

Panel, Divider, Rear, RH, Black

5437396-070

Unavailable

11

SUPPORT, RACK, REAR, BLACK

1015565-329

$91.99

12

SCREW

7517561

$1.59

12

SCREW

7517561

$1.59

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

14

SCREW

7517230

$1.49

14

SCREW

7517230

$1.49

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

16

Foam, Sound Attention, Cut

5813298

Unavailable

17

Screw

7512084

$1.49

18

WASHER

7555919

$4.99

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.59

19

LATCH, 1/4 TURN

7081500

$5.59

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

21

SCREW

7518382

$4.79

22

Shield, Box

5251419

Unavailable

23

GROMMET-LATCH

5413428

$3.19

24

RING, TIEDOWN

7081195

$11.19

25

Cover, Storage, Black

5437822-070

$105.22

26

Seal, Storage

5813400

Unavailable

27

Grommet, Storage

5813401

Unavailable

28

FOIL, RH PANEL

5813380

$4.79

29

SCREW

7518375

$1.49

29

SCREW

7518375

$1.49

30

NUT, U-TYPE

7670145

Unavailable

30

NUT, U-TYPE

7670145

Unavailable
