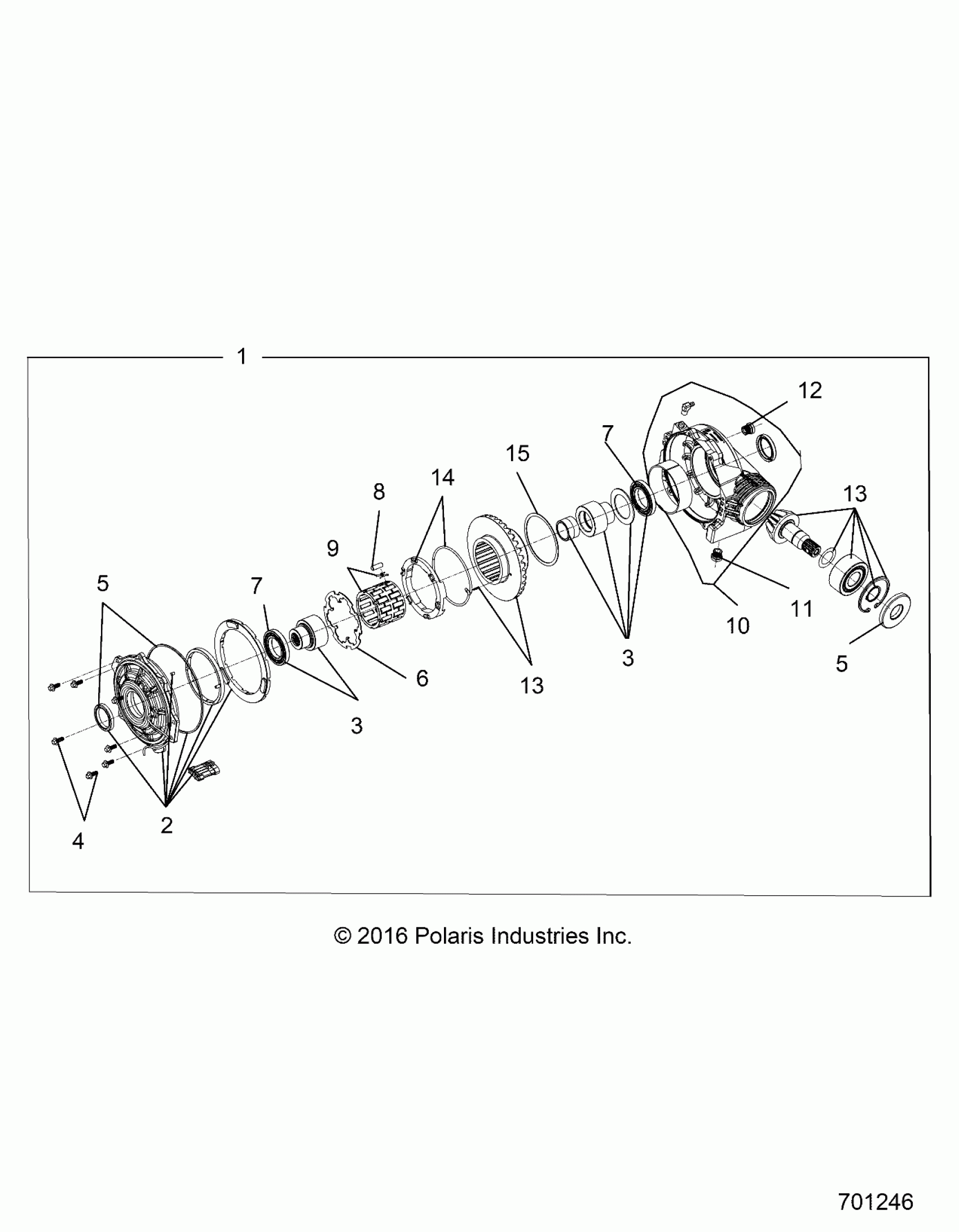

Polaris RZR S 1000 EPS (R02) - Z20ASE99AH/LH/BH DRIVE TRAIN, FRONT GEARCASE (TO 3/27/2020) Diagram

#

Description
Price

1

ASM-GEARCASE,FRONT [INCL. ALL]

1334178

Unavailable

2

ASM., COVER OUTPUT

3236045

Unavailable

3

ASM., OUTPUT HUB

3236355

Unavailable

3

ASM., OUTPUT HUB

3236355

Unavailable

4

COVER-FASTNERS [INCL. 7 FASTENERS]

3235483

$47.99

5

COMPLETE SEAL REPAIR

3236047

Unavailable

5

COMPLETE SEAL REPAIR

3236047

Unavailable

6

PLATE-4WD ARMATURE

3236048

$107.99

7

BEARING

3236214

$151.99

7

BEARING

3236214

$151.99

8

CAGE ROLLERS

3235486

$191.81

9

ASM., ROLLER CAGE [INCL. ROLL CAGE AND 24 H-CLIPS]

3236237

$468.59

10

ASM., GEARCASE

3236049

Unavailable

11

KIT-PLUG,DRAIN

2203738

$35.99

12

KIT-PLUG,FILL

2203739

$39.99

13

ASM., GEAR HOUSING AND PINION GEAR

3236356

Unavailable

13

ASM., GEAR HOUSING AND PINION GEAR

3236356

Unavailable

14

TORSION SPRING & RETAINER

3235490

$67.99

15

SPACER-RING GEAR

3234437

$19.99
