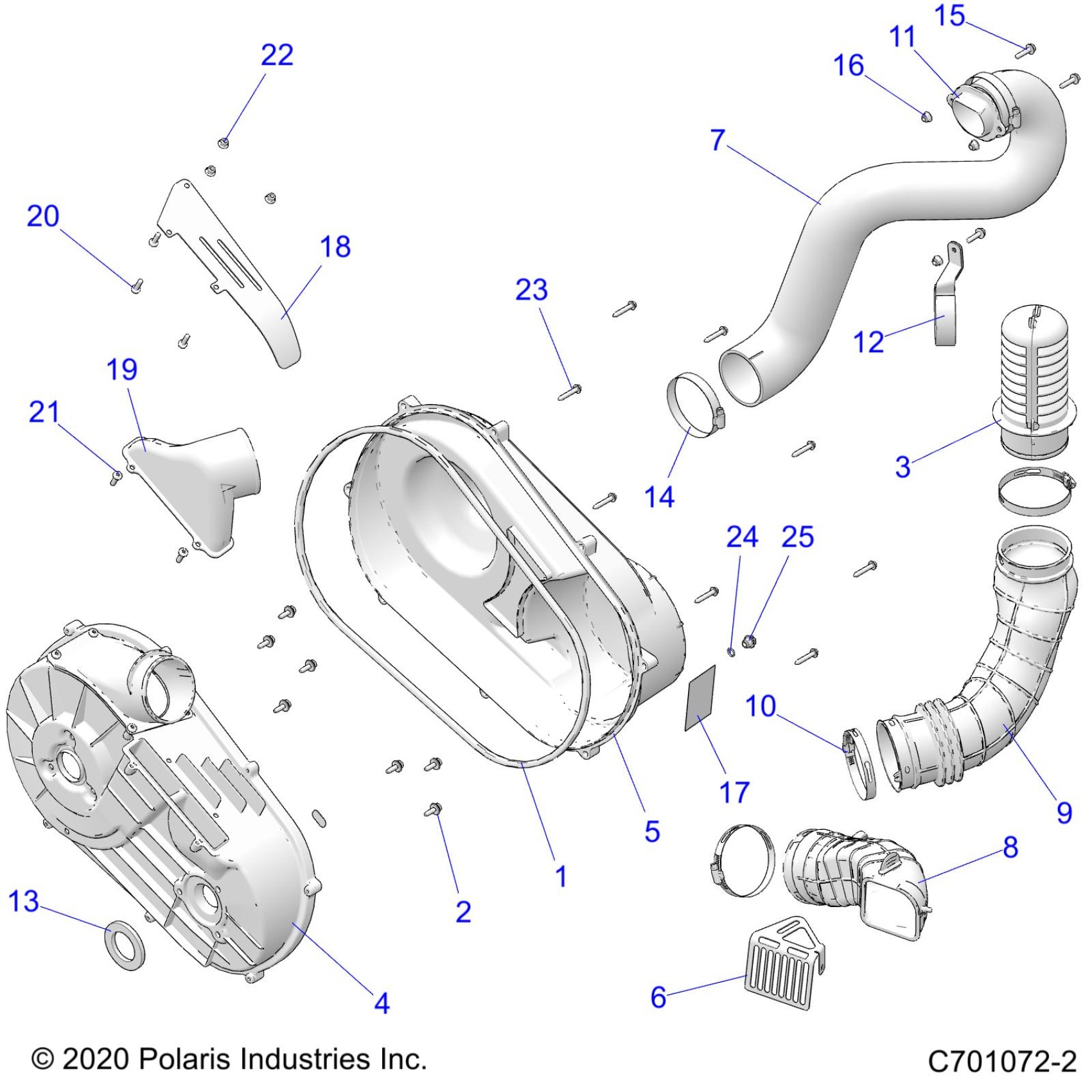

Polaris RZR S 1000 EPS (R02) - Z20ASE99AH/LH/BH DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z20ASE99AH/LH/BH (C701072-2) Diagram

Description

Price

DECAL-WARN,CLUTCH COVER,EU [LH][NOT ILLISTRATED]

7181427

Unavailable

SEAL, OUTER CLUTCH COVER

5521831

Unavailable

ASM-BOLT/WASHER,20 MM

7519278

$4.79

ASM-DUCT,CLUTCH AIR INLET

2635411

$31.99

ASM., COVER, CLUTCH, INNER [INCL. 18-22]

2634863

$159.99

K-CVR,CLUTCH,OTR,GENERAL [INCL. 17,24,25]

2207414

$179.99

BRKT-BELT SCREEN

5256732

$11.19

HOSE-CLUTCH INTAKE,SP

5415488

$91.99

HOSE-CLUTCH,AIR OUTLET

5451061

$107.99

HOSE-CLUTCH,AIR INLET

5451062

$43.99

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

BOOT, PLASTIC, INTAKE

5451776

$9.59

CLAMP-P,LARGE

7082088

$13.59

SEAL-COVER,PTO

5813708

$23.99

CLAMP, HOSE

7080907

$11.19

BOLT-M6X1.0X25,HXHD,FLG,BLK

7518576

$3.19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

DUCT, CLUTCH, AIR INLET

5450051

$43.99

SCREW

7518546

$3.19

SCREW

7519205

$1.59

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

SCREW

7519330

$3.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59
