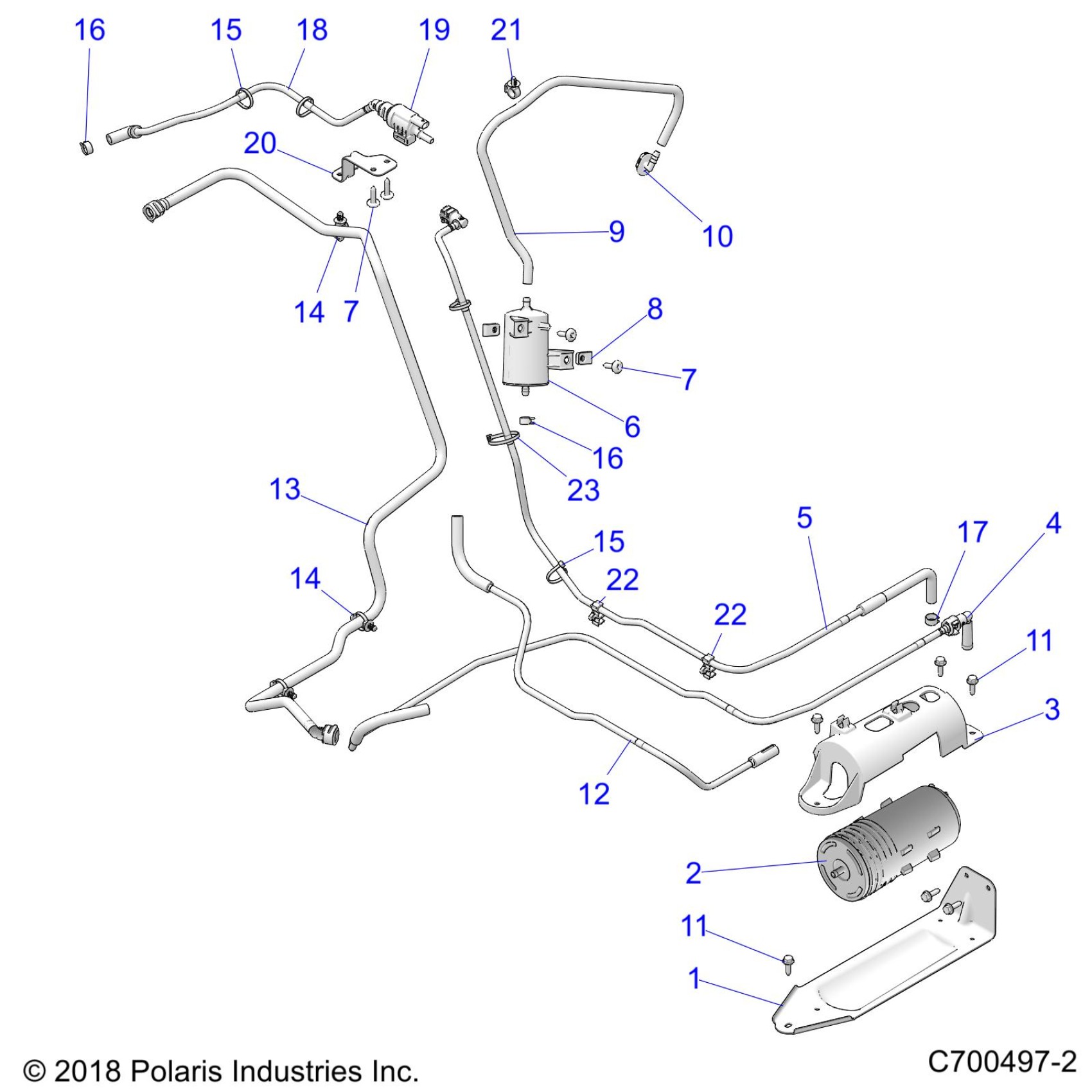

Polaris RZR S 1000 EPS (R02) - Z20ASE99AH/LH/BH BODY, FUEL LINES EVAP - Z20ASE99BH (C700497-2) Diagram

#

Description
Price

1

ASM-LINE,TANK TO CANISTER

2521715

$91.99

2

FILTER-CANISTER VENT

2521750

$55.99

3

ASM-FUEL LINE

2521839

$115.99

4

ASM-LINE,CANISTER TO PURGE

2521868

$51.99

5

ASM-LINE,PURGE TO TB

2521869

$63.99

6

CANISTER-ACTIVATED CARBON,BFL

2521893

$87.99

7

VALVE-PURGE

2521964

$59.99

7

VALVE-PURGE

2521964

$59.99

8

ASM-LINE,VENT TO CANISTER

2522086

$59.99

9

BRKT-PURGE,ECOAT

5266465-329

$19.99

10

BRKT-MNT CANISTER,BLK

5453458-070

$14.39

11

FITTING-VENT LINE,90

5453464

$5.59

11

FITTING-VENT LINE,90

5453464

$5.59

12

HOSE CLAMP, RED

7080003

$1.49

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

14

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

14

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

CLIP-TRIPLE

7082246

$6.39

16

CLIP-TRIPLE

7082246

$6.39

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

18

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

19

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

20

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.59

21

FUEL LINE-62 CENTIMETERS

8450040-62

$11.99

22

BRKT-MNT CANISTER,E-COAT

5263210-329

$35.99

22

BRKT-MNT CANISTER,E-COAT

5263210-329

$35.99

23

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
