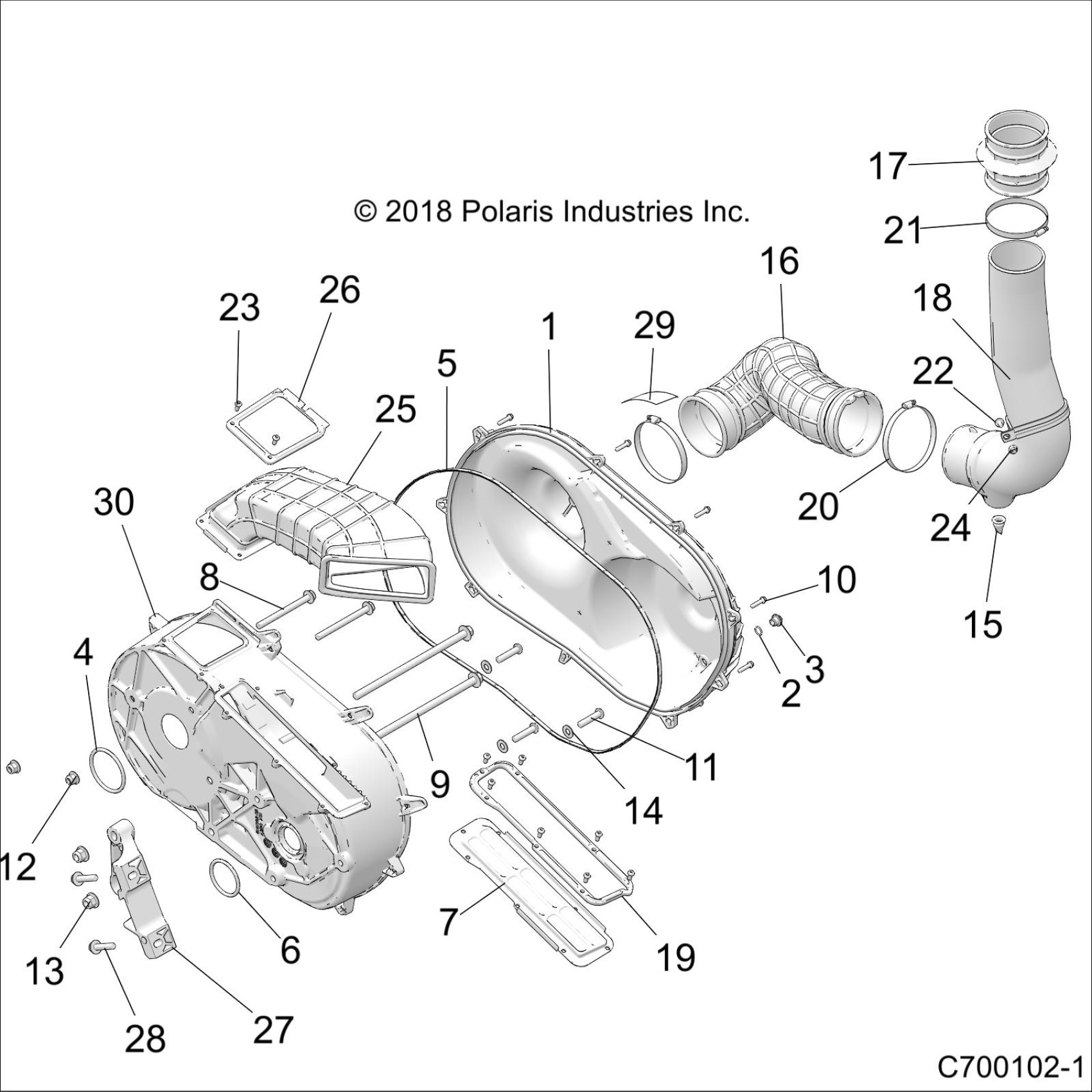

Polaris RZR RS1 (R06) - Z18VGE99AK/AW/BK/BW DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z18VGE99AK/AW/BK/BW (C700102-1) Diagram

#

Description
Price

1

ASM-COVER,CLUTCH,OUTER [NCL. 2,3]

2637068

$199.99

2

O-RING-0.489X0.629X0.070,EPDM

5416606

$3.59

3

PLUG-DRAIN,9/16-18,PP

5454915

$5.59

4

O-RING

5415647

$1.59

5

SEAL-OUTER CLUTCH COVER

5416207

$35.99

6

O-RING-2.25X2.625X.21,FKM

5416417

$13.59

7

COVER-INLET

5416440

$31.99

8

SCR-HXFL-M10X1.5X115 8.8 ZY3

7518526

$3.19

9

SCR-M12X1.75X250 8.8 HX/FL ZOD

7518970

$23.99

10

SCR-HXFLG,M6X1.0X25,10.9

7519754

$3.99

11

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

12

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

13

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

14

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

15

PLUG-DRAIN

5414472

$5.59

16

HOSE-CLUTCH,AIR INLET

5416222

$43.99

17

BOOT-CLUTCH,INTAKE

5416221

$67.99

18

DUCT-CLUTCH,INLET

5453918

$99.99

19

PLATE-INLET CLUTCH DUCT SEAL

5633909

$35.99

20

CLAMP-WORM DRIVE,.44WX4.25 DIA

7080813

$3.99

21

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.99

22

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

23

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

24

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

25

HOSE-CLUTCH,AIR OUTLET

5416316

$83.99

26

MOUNT-OUTLET DUCT

5633826

Unavailable

27

BRKT-TRANSJOINT,MAG,MACH

5139822

Unavailable

28

SCR-HXFL-M10X1.5X1.5 8.8 ZY3

7518531

$4.79

29

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

30

COVER-CLUTCH,INNER,MACH

5141082

Unavailable
