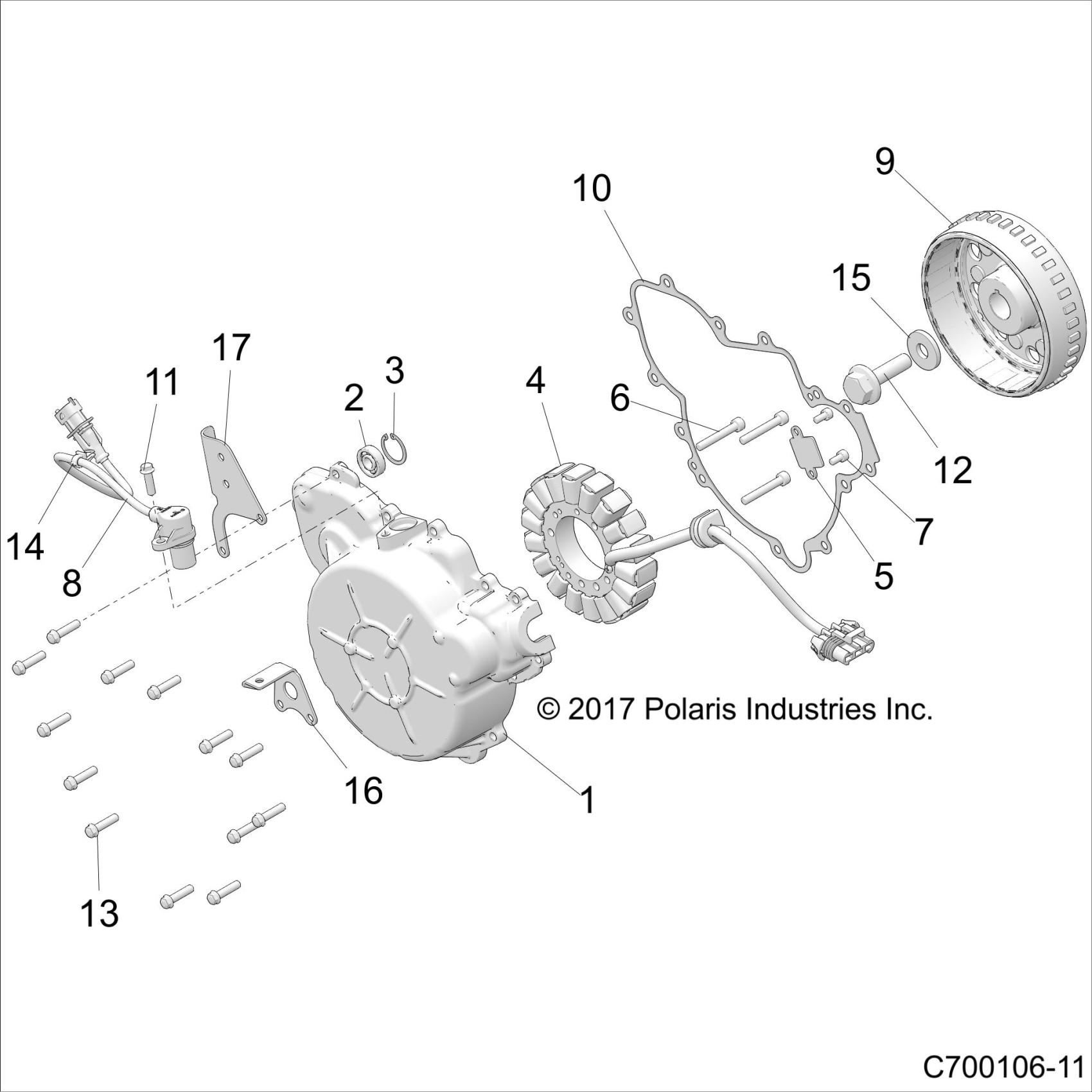

Polaris RZR RS1 (R03) - Z19VGE99AK/AW/BK/BW ENGINE, STATOR AND FLYWHEEL - Z19VGE99AK/AW/BK/BW (c700106-11) Diagram

#

Description
Price

1

ASM., IGNITION COVER [INCL. 2,3]

1204518

$159.75

2

BEARING, BALL

3514717

$8.79

3

RING, SNAP

7710654

$23.99

4

STATOR

4015340

$263.99

5

BRACKET, RETAINER, WIRE

5255473

$7.19

6

SCREW

7510005

$5.70

7

SCREW

7517847

$3.19

8

SENSOR, CRANK POSITION [INCL. O-RING]

2411719

$101.17

9

FLYWHEEL-660W

4015496

$255.99

10

GASKET, COVER, IGNITION

5814160

$39.99

11

SCREW

7518576

$3.19

12

SCR-HXFL-M12X1.25X43 12.9

7520178

$27.99

13

SCREW

7519297

$3.99

14

CLIP-WIRE,6.35MM

7081477

$3.19

15

WSHR-32X12X4,HARD

7556885

$5.59

16

BRKT-CABLE

5264631

$31.99

17

BRKT-CABLE

5264834

$31.99
