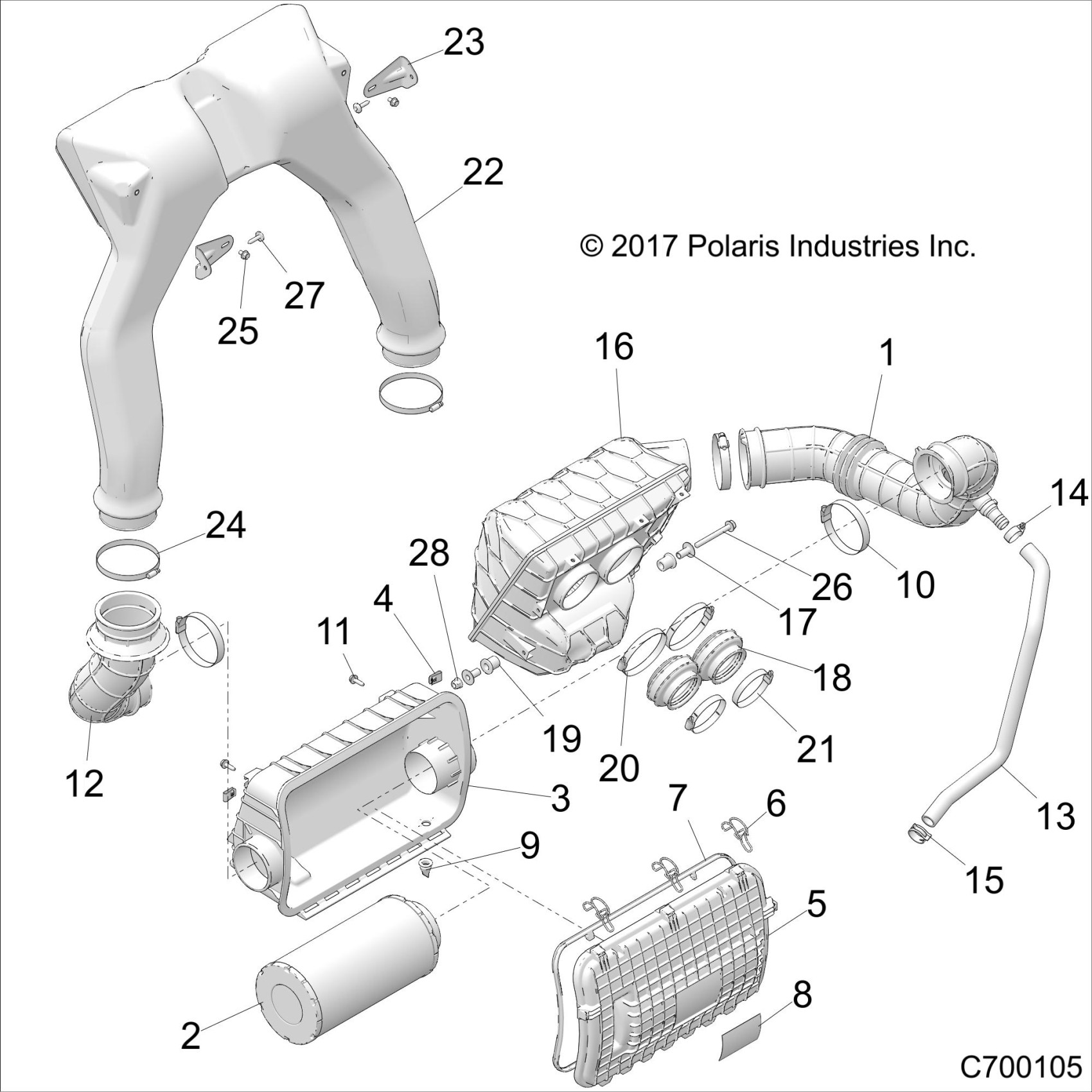

Polaris RZR RS1 (R03) - Z19VGE99AK/AW/BK/BW ENGINE, AIR INTAKE SYSTEM - Z19VGE99AK/AW/BK/BW (C700105) Diagram

#

Description
Price

1

ASM-INTAKE DUCT

1241185

$143.99

2

ASM-FILTER

1241084

$35.99

2

K-FILTER,AIR,ULTRA,PERF,RZN HD Air Filter Kit

2882234

$59.99

3

ASM-AIRBOX HOUSING [INCL 4]

1241166

$87.99

4

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

5

ASM-AIRBOX COVER,DECAL [INCL 6-8]

1241235

$115.99

6

ASM-AIRBOX CLIP

7082303

Unavailable

7

SEAL-AIRBOX

5814549

$35.99

8

DECAL-CAUT.AIR BOX

7182652

Unavailable

9

PLUG-DRAIN

5414472

$5.59

10

CLAMP-HOSE,3.75,SS

7080907

$11.19

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

HOSE-AIRBOX,IN

5416218

$71.99

13

HOSE-VENT,ENG

5416219

$31.99

14

CLAMP-HOSE WORM GEAR 1.25

7080614

$7.19

15

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

16

WELD-INTAKE,ENG HOUSING

1241175

$135.99

17

SPACER-BUSHING

3022994

$7.99

18

BOOT-THROTTLE BODY

5414570

$47.99

19

ISOLATOR

5415637

$2.39

20

CLAMP-WORM DRIVE,.44WX3.75 DIA

7080812

$19.99

21

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

22

ASM-HIGH INTAKE,BLK

2636774-070

$215.99

23

BRKT-INTAKE SUPPORT,BLK

5264914-458

$99.99

24

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.99

25

SCR-HXFL-M6X1.0X10 8.8 ZPB

7517893

$3.99

26

SCR-M8X1.25X75 8.8 HX/FL ZOD

7518955

$3.19

27

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

28

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
