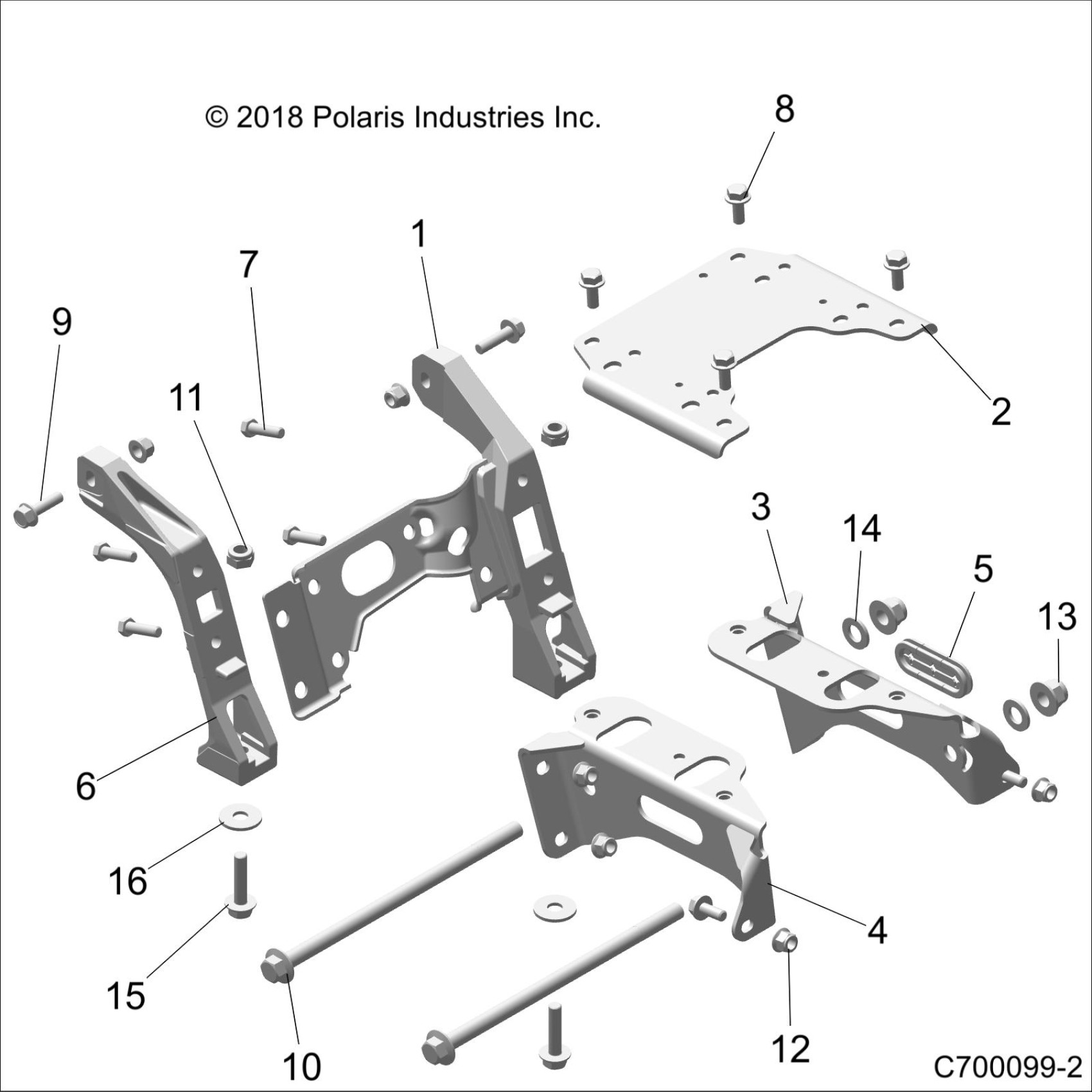

Polaris RZR RS1 (R03) - Z19VGE99AK/AW/BK/BW CHASSIS, MOUNTING, FRONT GEARCASE - Z19VGE99AK/AW/BK/BW (C700099-2) Diagram

WELD-CHASSIS,STEERING,BLK

1024101-458

$179.99

BRKT-WINCH MOUNT PLATE,BLK

5264731-458

$63.99

BRKT-FRONT DRIVE MNT,LH,BLK

5264732-458

$107.99

BRKT-FRONT DRIVE MNT,RH,BLK

5264733-458

Unavailable

GROMMET-ROUTING

5454582

$3.19

STEERING RACK MNT,RH,BLK

5142282-458

$139.99

SCR-HH-M8X1.25X30 8.8 ZY3

7517924

$4.79

SCR-HXFL-M8X1.25X20 8.8 ZY3

7518702

$3.99

SCR-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

SCR-HXFL,M12X1.25X230 10.9 SPC

7520771

$13.59

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT-HXFL-M12X1.25 10 SPC NYL

7547860

$7.19

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

SCR-HXFL,M10 X 1.5X40,10.9,ZOD

7519820

$6.53

WASHER-FLAT M10X30X2.5 HARDEN

7556698

$4.79
