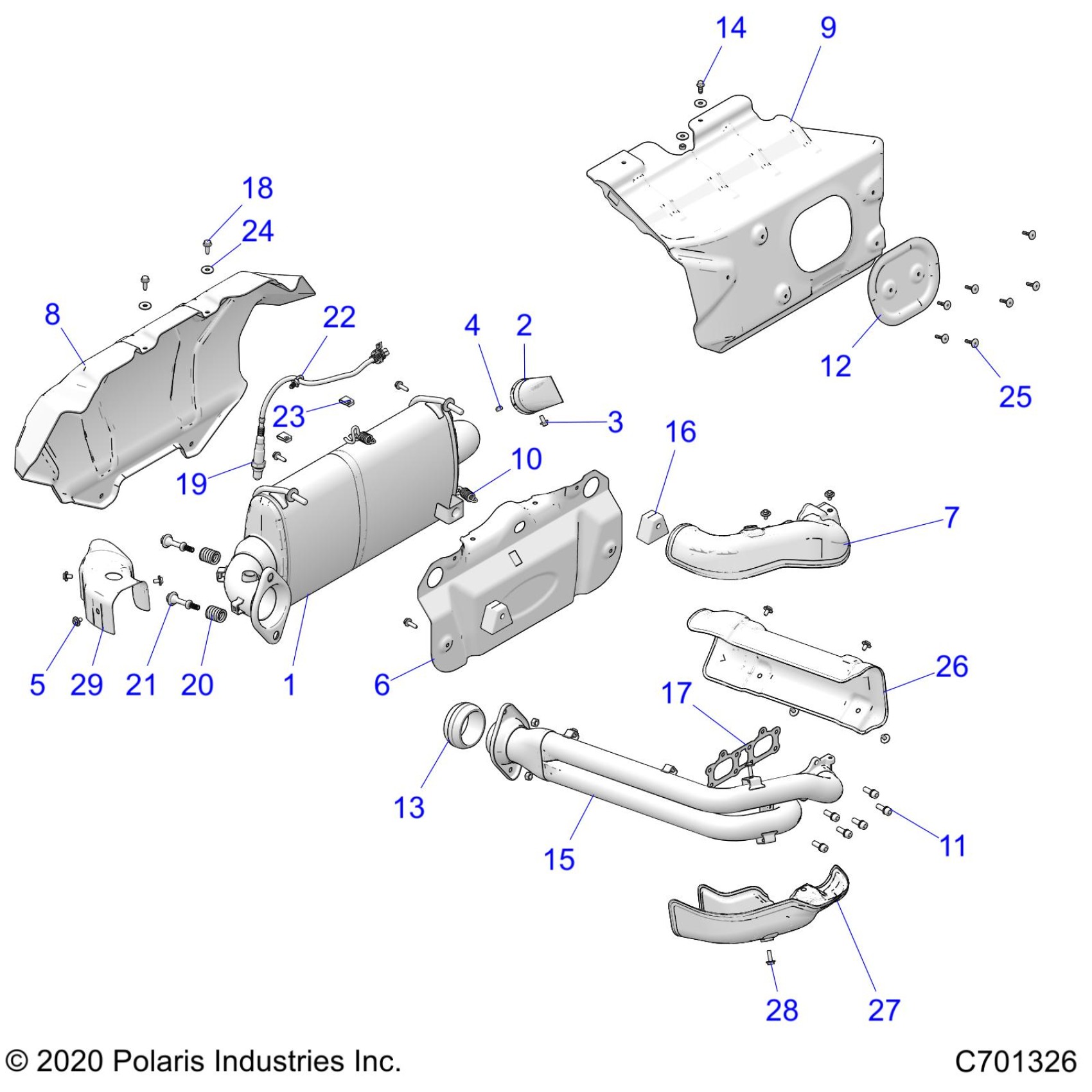

Polaris RZR RS1 EPS (R01) - Z22S1E99AL/BL ENGINE, EXHAUST SYSTEM - Z22S1E99AL/BL (C701326) Diagram

#

Description
Price

1

ASM-SILENCER [INCL. 2-4, 3 QTY OF 5]

1263066

$642.39

2

WELD-SPARK ARRESTOR

1262390

$47.99

3

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

6

SHIELD-REAR,STAINLESS

5266579

$47.99

7

SHIELD-HEAT,HEADPIPE,FRONT UPR

5266219

$55.99

8

SHIELD-REAR BUMPER

5814571

$95.99

9

SHIELD-REAR CLOSEOFF

5814580

$91.99

10

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

11

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518984

$7.99

12

SHIELD-ACCESS PANEL

5814629

$43.99

13

GASKET, DOUBLE, SPHERICAL

3610236

$47.99

14

SCR-M6X1.0X16.0,HX/FL-Y/D

7516820

$5.59

15

ASM-HEADPIPE [INCL. 6 QTY OF 5]

1263285

$363.99

16

MOUNT, ISOLATOR

5450115

$14.39

17

GASKET-EXHAUST SEAL

3610184

$48.56

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SENSOR-LAMBDA,LSF 4.2

4011853

$135.54

20

SPRING, SPHERICAL, EXHAUST

7044274

$14.39

21

STUD-SPHERICAL,EXHAUST

7520079

$13.59

22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

23

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

24

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

25

RVT-3/16X.040-.354,AL BLK

7662345

$3.99

26

SHIELD-HEAT,HEADPIPE,INNER

5264090

$35.99

27

K-SHIELD-HEAT,HEADPIPE,FRT,LWR [INCLS. QTY 1 OF 5 & 28]

2212145

$39.99

28

SCR-HHSEMS-M6X1.0X19 A286,LOCK

7520995

$4.79

29

SHIELD-SILENCER INLET

5264296

$27.99
