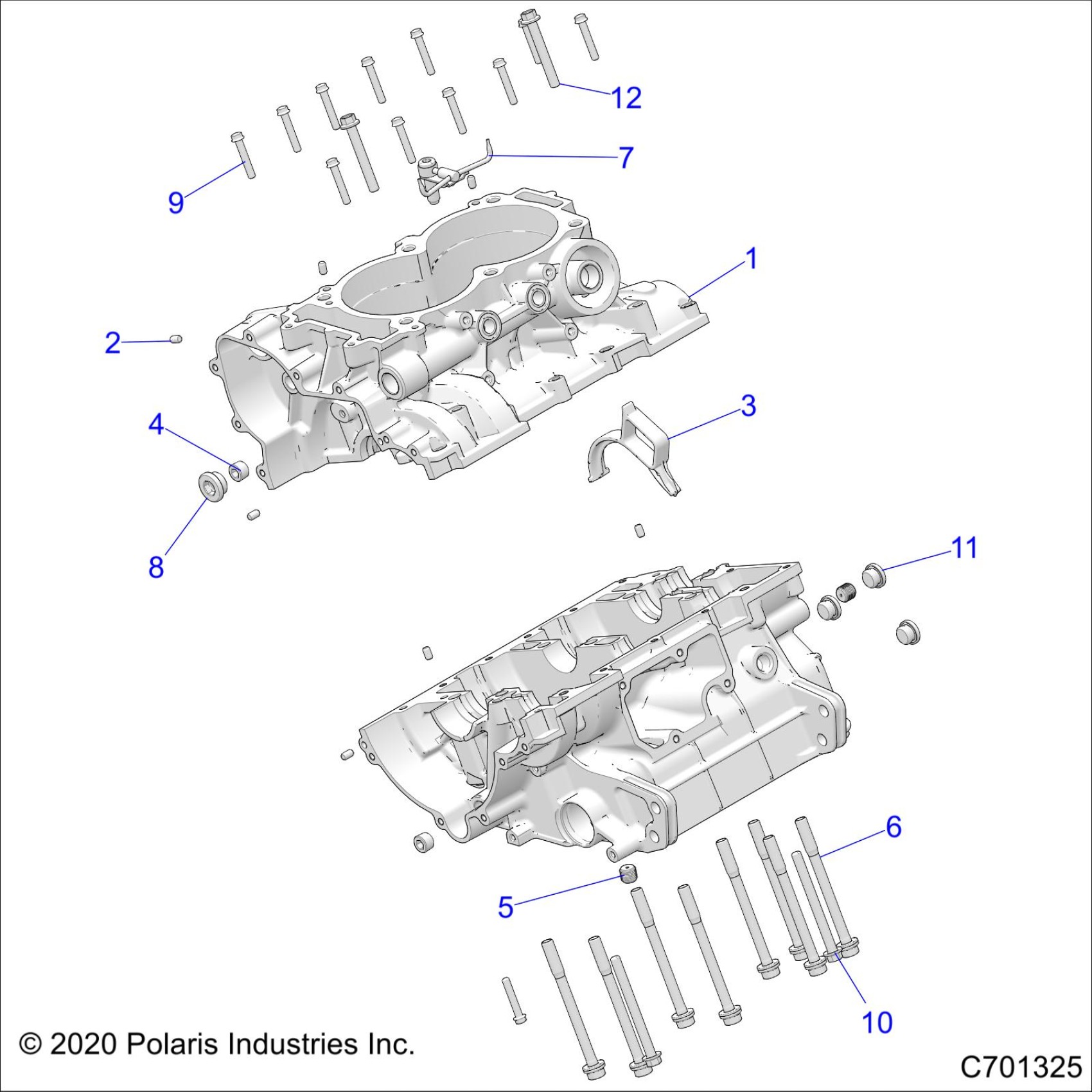

Polaris RZR RS1 EPS (R01) - Z22S1E99AL/BL ENGINE, CRANKCASE - Z22S1E99AL/BL (C701325) Diagram

#

Description

Price

1

KIT, CRANKCASE [INCL. 2-11]

2207374

$1,171.79

2

PIN-DOWEL,M6X10

5136879

Unavailable

3

DIVERTER, OIL DRAIN

5452616

$20.22

4

PLUG-3/8 NPT,HX/SOC W/SEALANT

7052413

$3.99

5

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.59

6

SCR-HXFL,M10X1.25X113MM 10.9

7521267

$13.59

7

JET, PISTON

3022856

$48.40

8

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.99

9

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

10

SCR-HXFLG,M8X1.25X90

7519154

$7.19

11

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$7.91

12

SCR-HXFLG,M8X1.25X60

7519186

$6.53
