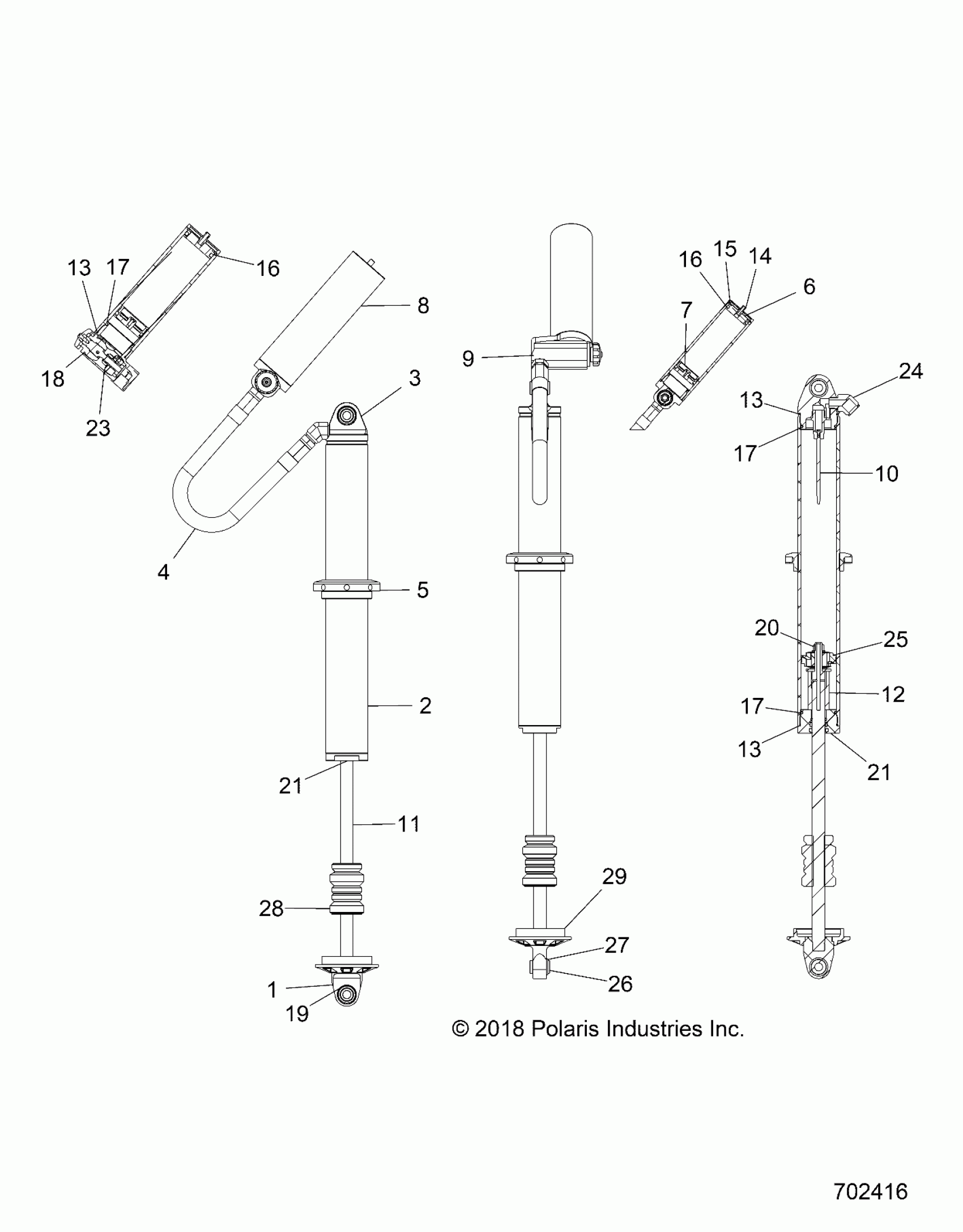

Polaris RZR RS1 EPS (R01) - Z21S1E99AR/BR SUSPENSION, REAR SHOCK INTERNALS - Z21S1E99AR/BR (702416) Diagram

#

Description
Price

-

SHOCK-REAR,REMOTE,LH [INCL ALL]

7044780

$894.59

-

SHOCK-REAR,REMOTE,RH [INCL ALL]

7044877

$894.59

-

DECAL-RESERVOIR,RR,LH [Decal from shock P/N 7044780]

7189459

$27.99

-

DECAL-RESERVOIR,RR,RH [Decal from shock P/N 7044877]

7189460

$27.99

-

.600 BUMP STOP

-------

Unavailable

1

42629 HEIM SHAFTLOOP (CLEAR)

1800555

$223.99

2

2.5IN AL CO BODY 18.55L (Clear)

1800718

$422.17

3

BODY LOOP, 2.5" .562 NO SLOT, 3.227L (CLR)

1800605

$243.99

4

-8 Hose 35.5in long 901mm

-------

Unavailable

5

2.5IN SPRING NUT (HARD BLACK)

1800715

$104.99

6

2.5in END CAP SV (Clear)

1800552

$119.99

7

RES, PISTON 2.5IN ASM

1800752

$164.59

8

2.5in 8.5L PB RES CAN

1800644

$87.99

9

2.5IN REMOTE ADJ RES MOUNT (CLEAR )

1800608

$246.61

10

ASM. NEEDLE BOLT

-------

Unavailable

11

3/4in SS CHROME NEEDLE SHAFT 18.295L

1800620

$223.99

12

SPACER 2.287L

1800610

$55.99

13

O-RING 2-033

1800613

$10.39

13

O-RING 2-033

1800613

$10.39

13

O-RING 2-033

1800613

$10.39

14

VALVE, SCHRAEDER

1800021

$43.99

15

2.125 ID BORE SNAP RING

1800507

$10.39

16

O-RING 2-327

1800508

$5.59

16

O-RING 2-327

1800508

$5.59

17

O-RING 2-225

1800500

$1.99

17

O-RING 2-225

1800500

$1.99

17

O-RING 2-225

1800500

$1.99

18

O-RING 2-122

1800503

$1.59

18

ASM. SS RETENTION NUT (GOLD)

1800857

$111.99

19

RING- RETAIN (SNAP)

1800482

$10.39

20

NUT 7/16 NYLOCK (1425112)

1800638

$4.79

21

ASM. SEAL HEAD, 2.5 (ANODIZE CLEAR)

1800549

$127.59

21

ASM. SEAL HEAD, 2.5 (ANODIZE CLEAR)

1800549

$127.59

23

ASM. CHECK VALVE - 2SEAT

-------

Unavailable

24

FITTING, 45 DEG 3/8

-------

Unavailable

25

PISTON ASM

-------

Unavailable

26

BEARING HCOM9T-12MM

1800880

$47.99

27

O-RING 2-312 1000312

1800810

$3.63

28

2.50 BUMP STOP

-------

Unavailable

29

RETAINER-SPRING,2.5"

1501211

$43.99
